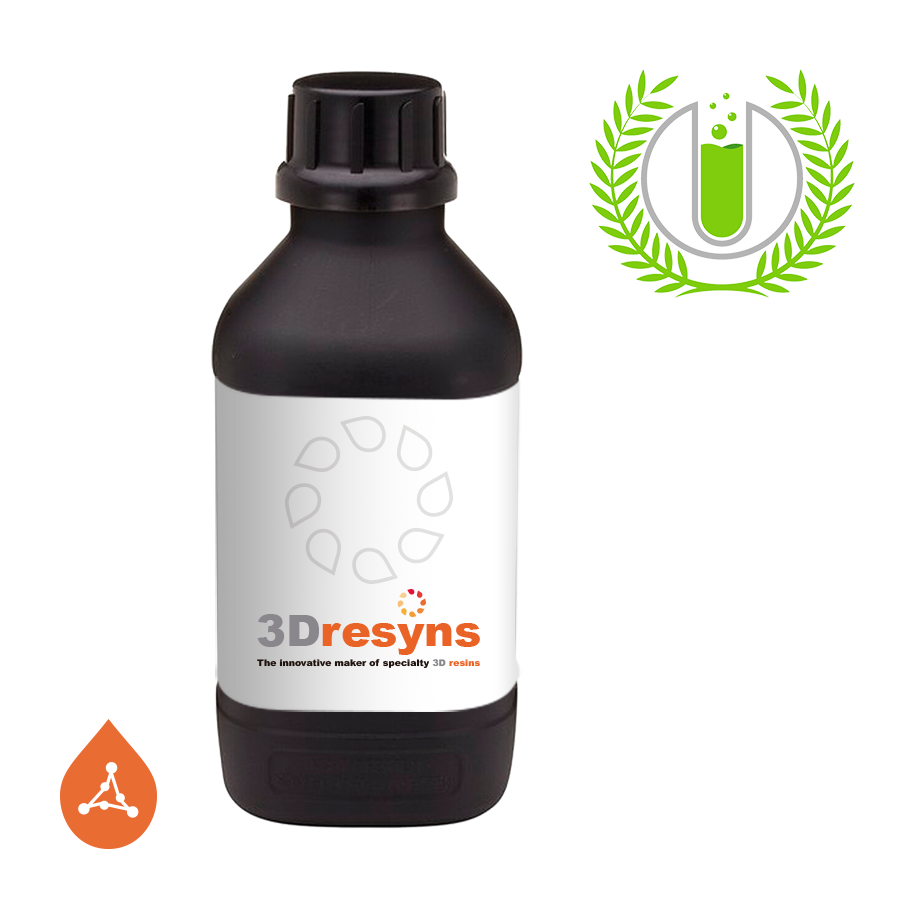

3Dresyn Bioflex A10 MB Monomer Based

Ultra-soft biocompatible monomer-based 3D printing resin

Product description

3Dresyn Bioflex A10 MB is an ultra-soft biocompatible monomer-based photopolymer resin designed for applications requiring maximum softness, elasticity and tactile compliance, while offering enhanced reactivity and stable processing behavior.

Intended use

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing.

Typical applications

Ultra-soft medical components
Soft tissue simulation models
Highly elastic biomedical parts

Material properties & test methods

Mechanical properties
Shore hardness: A10 (ISO 868)
Tensile strength: < 2 MPa (typical) (ISO 527-1 / ISO 527-2)
Tensile modulus (Young’s modulus): < 0.8 MPa (typical) (ISO 527-1 / ISO 527-2)
Elongation at break: ~ 180–300 % (typical) (ISO 527-1 / ISO 527-2)

Thermal properties
Heat deflection temperature (HDT): < 10 °C @ 0.45 MPa (typical) (ISO 75)

Physical properties
Density: 1.0–1.2 g/cm³ (typical) (ISO 1183)
Water absorption: < 0.1 % (typical, 24 h @ 23 °C) (ISO 62)

Biocompatibility & regulatory framework
Biocompatibility evaluated according to ISO 10993
Manufacturing aligned with ISO 13485 quality management systems

Testing & processing disclaimer
Material properties are measured on printed and post-processed specimens and may vary depending on the selected material version, printer type, printing parameters, build orientation, post-curing conditions and test specimen preparation. Reported values are indicative and provided for reference only.

Printing & processing guidelines

Printing technologies: SLA, DLP and LCD
Wavelength range: 385–405 nm

Product units

Available units: 500 g, 1,000 g
