Discover our 2PP resins for two photon polymerization of nano & microstructures, which provide custom control of writing speed, resolution, and polymer properties for the fabrication of transparent nano and microstructures.
Our 2PP 3Dresyns are filtered with filters with pore sizes <10 microns, are made to order, and are compatible with most 2PP printers.
Discover our Instructions for Use "IFU" for 2PP printers
Discover the Features & Benefits of our 2PP resins portfolio for nano & micro fabrication by two photon polymerization:
- biocompatible, non cytotoxic
- fast photocuring with high resolution
- availability of biobased grades
- availability of relatively low and high viscosity versions:
- LV Low Viscosity version for easy rinsing of uncured resin with conventional 2PP upright configurations
- HV High Viscosity version for upside down DiLL configurations
- availability of different writing speeds:
- fast
- intermediate
- slow
- non reactive for maximum control of photocuring speed
- broad range of physical, mechanical and chemical resistance properties
- from ultra rigid to tough and flexible grades
- epoxy and BPA free
- fluorescence emission free
- solvent free
|
3Dresyn 2PP |
Properties* |
Young´s modulus* |
Shore hardness* |
% Elongation* |
% Shrinkage* |
| HAR2 Bio | High Aspect Ratio, ultra Rigid, biocompatible, superior thermal, mechanical, and chemical resistance, fast curing | >4000 | D90 | <1 | <13 |
|
Ultra hard & rigid, biocompatible, thermal, mechanical, and chemical resistance, fast curing |
>3000 |
D90 |
<1 |
<9 |
|
| HSR2 MF Bio | High Speed & Rigid, monomer free, biocompatible, ultra fast curing | >2000 | D80 | <10 | <8 |
|
Tough and rigid, biocompatible, fast curing |
>1500 |
D80 |
<10 |
<6 |
|
| Bio Soya2 | Rigid, bio-based & biocompatible, fast curing | >1500 | D70 | <10 | <6 |
| Bio Scaffolds2 | Rigid, biocompatible, fast curing | >1500 | D70 | <10 | <5 |
|
Hard & Flexible, biocompatible, fast curing |
>1000 (more flexible in nano scale*) |
D70 (softer at nano scale*) |
<50 |
<3 |
|
| PDMS-like MF Bio | Flexible, monomer free biocompatible "non-cytotoxic", fast curing | <1000 (more flexible in nano scale*) | D50 (softer at nano scale*) | <100 | <2 |
Discover also our Fine Tuners & ultra rigid crosslinkers for maximum control of writing speed, resolution, rigidity, and deflection temperature:
- Fine Tuner 2PP FT8 Bio, biocompatible fast photo accelerant for two photon polymerization
- a free sample is supplied with each 3Dresyn 2PP order

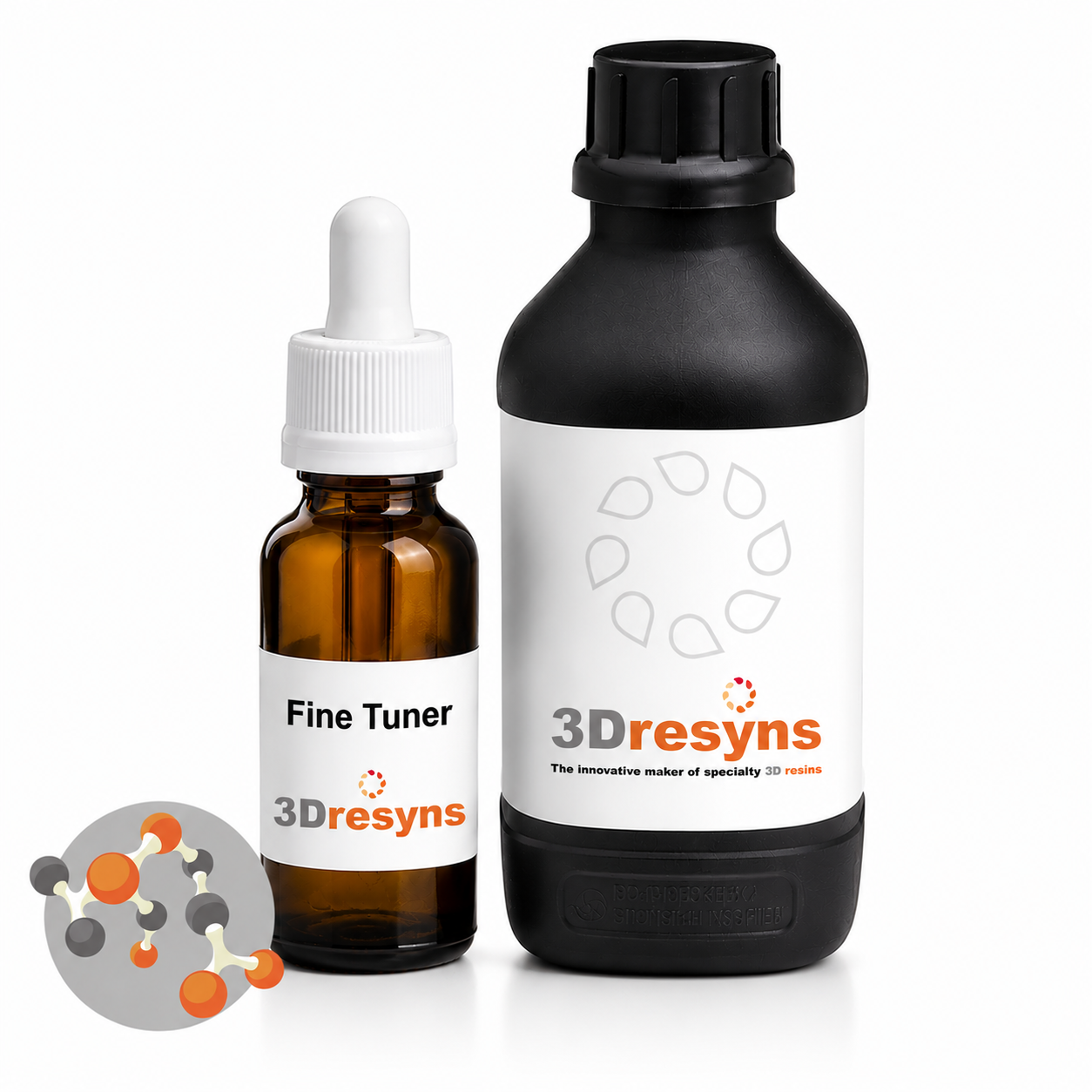

- Fine Tuner 2PP LB3 Bio ULWA, biocompatible hydrophobic resolution-er with ultra low water absorption for improving resolution of two photon polymerization resins
- a free sample is supplied with each 3Dresyn 2PP order
- Fine Tuner 2PP FT9 Bio WS, biobased & bicompatible Water Soluble photoaccelerant for two photon polymerization
- 3Dresyn 2PP XL2 Bio, biocompatible crosslinker for increasing the rigidity & deflection temperature of two photon polymerization 3D resins
- crosslinking additive as well as ready to print 2PP resin
- 3Dresyn 2PP 10K-XL3 Bio, biocompatible 10K crosslinker for maximum increase of rigidity & deflection temperature of two photon polymerization 3D resins
- crosslinking additive as well as ready to print 2PP resin
*Note 1: dependent of chosen version (Fast, Intermediate, or Slow) and 2PP printer configuration. Examples of mechanical properties are shown for macroscopic prints printed with SLA printers. Due to the ultra high surface-area-to-volume of submicron and micron structures, which is proportional to the inverse of their length, inhibition by atmospheric O2 causes a significant decrease of the polymerization rate, and of the physical and mechanical properties of the microstructures. A typical 75% reduction of mechanical properties is forecasted unless our 3Dresyns 2PP are vacuumed and/or purged with N2 gas before and during printing.
For more info read: Two Photon Polymerization 2PP 3Dresyns for nano & micro fabrication
