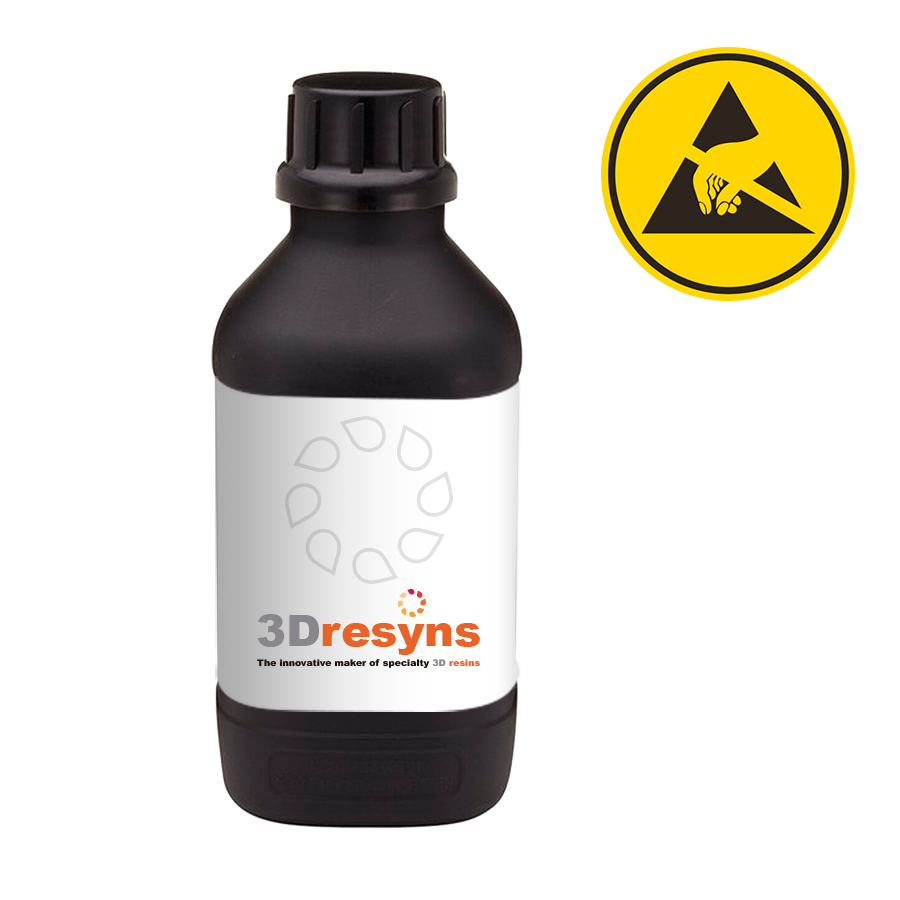

3Dresyn TD90 ESD, Rigid & Tough, ESD compliant

Product description

3Dresyn® TD90 ESD is an extra hard, high-performance photopolymer formulation with integrated electrostatic discharge (ESD) properties, designed for advanced engineering applications in SLA, DLP and LCD 3D printing workflows. The material combines high rigidity, excellent mechanical strength and enhanced impact resistance with controlled electrical conductivity for ESD-safe environments.

This formulation is based on a synthetic resin system engineered to provide a balanced combination of stiffness, toughness and durability while maintaining excellent printability and surface resolution.

Application framework

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within professional and industrial environments requiring ESD-safe components with high mechanical strength and impact resistance.

Typical applications

• ESD-safe tooling and fixtures
• Electronics manufacturing components
• Protective housings and enclosures
• Structural parts requiring high strength and toughness
• Functional prototypes with ESD control

Measured mechanical properties

• Tensile strength: >50 MPa (ISO 527)
• Flexural strength: >100 MPa (ISO 178)
• Young’s modulus: 2000–3000 MPa (ISO 527)
• Elongation at break: <3% (ISO 527)
• Shore hardness: D90 (ISO 868)
• Impact resistance (Notched Izod): 20–30 J/m

Thermal properties

• Heat Deflection Temperature (HDT): >100–105°C @ 0.45 MPa

Electrical properties

• Surface resistivity: <10⁹ ohms
• Compliant with ESD standards: EN 61340, EN ISO 20344–20347

Measured physical properties

• Viscosity: <8000 mPa·s at 25 °C
• Shrinkage: very low (typical)
• Resolution capability: very high (process-dependent)
• Color stability: non-settling formulation
• Water solubility: ≤ 1.6 µg/mm³
• Water absorption (ULWA): ≤ 32 µg/mm³

Functional performance characteristics

• Extra hard material with balanced toughness
• Integrated ESD-safe performance
• High mechanical strength and stiffness
• Enhanced impact and shattering resistance
• Hydrophobic behavior with ultra low water absorption (ULWA)
• High dimensional stability
• Durable under functional loading conditions
• Very high resolution with fine feature capability

Processing and handling performance

• Printing technologies: SLA, DLP and LCD

• Compatible with most commercial and professional systems when properly calibrated
• Stable processing behavior across a wide range of conditions
• Increased durability of the resin tank during printing

Chemical and safety characteristics

• Biocompatible (final part validation required)
• Synthetic resin base
• Organo-tin free formulation

Testing & processing disclaimer

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure conditions, layer thickness, build orientation and post-processing workflow.

Disclaimer

This material is supplied as a professional manufacturing material for engineering and prototyping workflows. It is not marketed as a finished product. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-TD90-ESD-EN | Version: 1.0 | Last updated: March 2026
