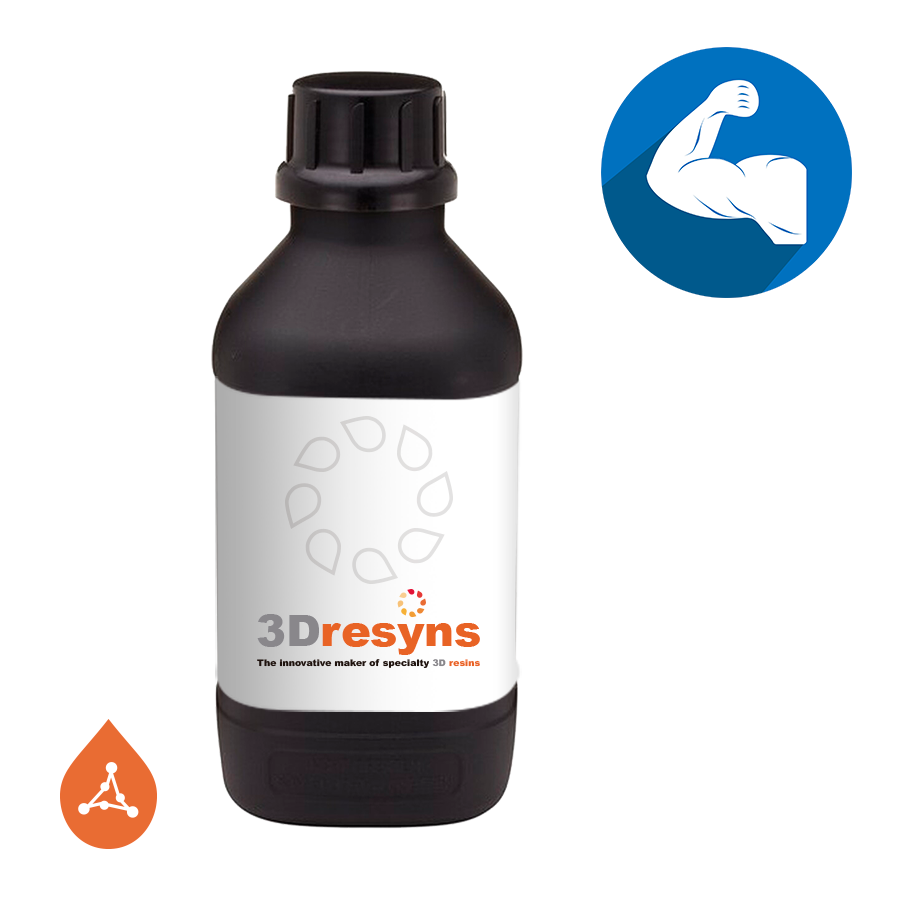

NextGen 3Dresyn TFD80 tough & foldable with Shore D80

Product description

NG 3Dresyn TFD80 is a tough, flexible photopolymer formulation designed to provide high impact resistance combined with controlled flexibility and foldability. The material enables the fabrication of durable parts that resist brittle fracture while allowing deformation in thin sections without breaking.

This formulation is engineered to deliver a balanced mechanical profile between rigidity and flexibility, making it suitable for dynamic and impact-prone applications.

Application framework

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within professional and industrial environments for tough, flexible and impact-resistant components.

Typical applications

• Impact-resistant functional components
• Flexible housings and enclosures
• Snap-fit and thin-wall structures
• Engineering prototypes requiring toughness and flexibility

Measured mechanical properties

• Tensile strength: <25 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: >35 MPa (ISO 178)
• Young’s modulus: <1000 MPa (ISO 527)
• Elongation at break: <40% (ISO 527)
• Shore hardness: D80 (ISO 868)
• Notched Izod impact resistance: ~85 J/m (ISO 180)

Measured physical properties

• Shrinkage: very low (typical)
• Resolution capability: very high (process-dependent)
• Color stability: non-settling formulation

Functional performance characteristics

• Tough (non-brittle) material behavior
• Controlled flexibility and foldability in thin sections
• High impact and shattering resistance
• Balanced rigidity and flexibility
• Durable under repeated mechanical stress

Processing and handling performance

• Printing technologies: SLA, DLP and LCD
• Compatible with most commercial and professional systems when properly calibrated
• Stable processing and reliable printability
• Increased durability of the resin tank during printing

Chemical and safety characteristics

• Biocompatible (final part validation required)
• Synthetic resin base
• Organo-tin free formulation

Testing & processing disclaimer

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure conditions, layer thickness, build orientation and post-processing workflow.

Disclaimer

This material is supplied as a professional manufacturing material for engineering and prototyping workflows. It is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-NG-TFD80-EN | Version: 1.0 | Last updated: March 2026
