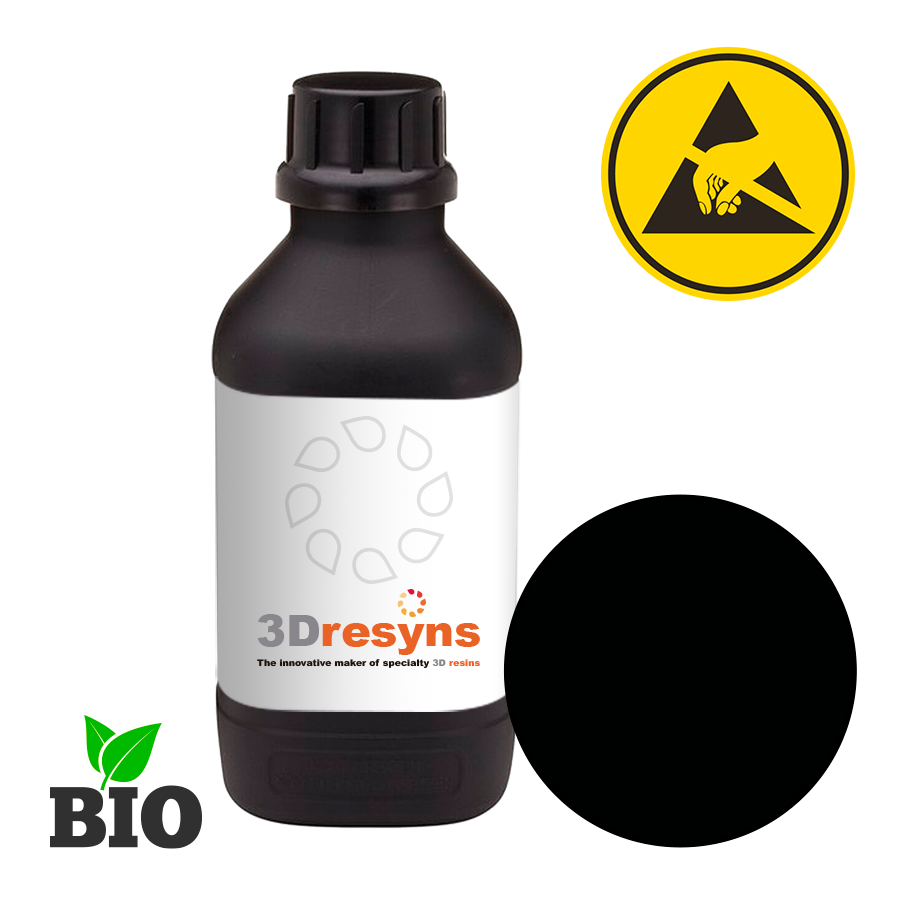

3D-ADD ESDA Black, black colored antistatic ESD additive

Product description

3D-ADD ESDA Black is an ultra safe black antistatic ESD additive for making antistatic ESD compliant 3D resins. Its addition at small dosage to 3D resins is intended to protect 3D printed materials against premature failure or damage due to electrostatic discharge.

This additive is suitable for a variety of 3D printed applications such as automotive, aerospace, electronic, electrical packaging, equipment and other plastics applications. It is supplied as a kit for measuring, mixing, storing and protecting 3D resins from daylight.

Application framework

Designed for making antistatic ESD compliant SLA, DLP & LCD 3D resins. Compatible with our and with most SLA, DLP & LCD 3D resins.

Typical applications

• Antistatic ESD compliant 3D resins for automotive applications
• Antistatic ESD compliant 3D resins for aerospace applications
• Antistatic ESD compliant 3D resins for electronic and electrical packaging
• Antistatic ESD compliant 3D resins for equipment and other plastics applications

Measured physical properties

• Achievable resistivity values <10⁸-10⁹ Ohms
• Typical ESD resistivity achievable values at 35% humidity / 100 V (EN 61340, EN ISO 20344- 20347) at different dosages
• 1% dosage 7x10⁸-1.2x10⁹ Ohms
• 2% dosage 3x10⁸-7x10⁸ Ohms
• 3% dosage 1x10⁸-3x10⁸ Ohms
• 4% dosage 9x10⁷-2x10⁸ Ohms
• 5% dosage 5x10⁷-1x10⁸ Ohms
• Black color
• Supplied as a kit containing 100 grams of 3D-ADD ESDA Black

Functional performance characteristics

• Ultra effective: additions of <2-5 % to suitable/compatible 3D resins are often enough for ESD antistatic compliancy
• Improved antistatic ESD performance can be obtained by adding 5% or more
• Compatible with our and with most SLA, DLP & LCD 3D resins
• Compliant with ESD standards: EN 61340, EN ISO 20344 - 20347

Processing and handling performance

• Additions of <2-5% are often enough for ESD antistatic compliancy
• Improved antistatic ESD performance can be obtained by adding 5% or more
• Maximum recommended dosage to preserve printability is <10% in low power LCD printers and up to 15% in higher power printers, such as monochrome LCD, laser and DLP printers
• It is supplied as a kit, which contains 100 grams of 3D-ADD ESDA Black, one graduated beaker and one empty 250 mL black bottle to measure, mix, keep and protect the 3D resins from daylight
• Please do not expose any 3D resins to natural or room light to prevent their curing

Chemical and safety characteristics

• Safe and biocompatible: toxic pictograms free
• Eco friendly and biodegradable
• Organo-tin free

Testing & processing disclaimer

Exact ESD values cannot be guaranteed since results are affected by the mixing process (important, add the additive to the 3D resin slowly under stirring), the dosage used, and the type of 3D resin used.

Disclaimer

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-3D-ADD-ESDA-BLACK-EN | Version: 1.0 | Last updated: March 2026
