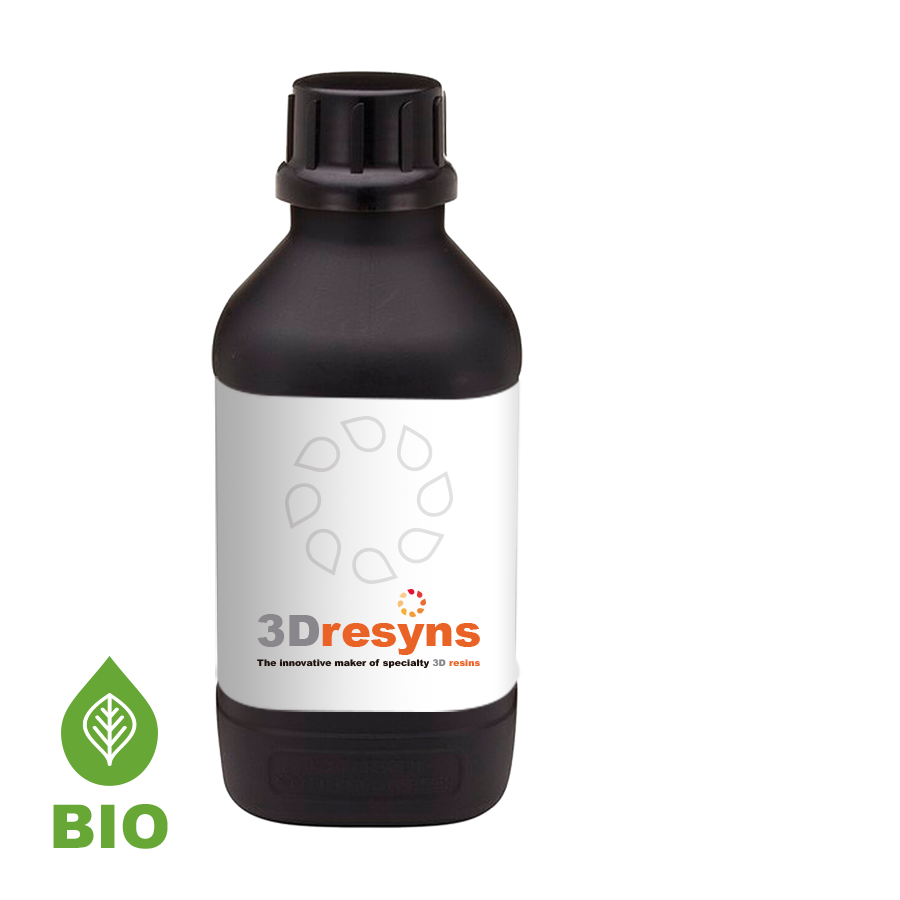

3Dresyn CD Bio D Clear, is our Conceptual Design Bio based 3D resin for fast proof of concept printing.
3Dresyns basic plant based resin for fast proof of concept printing. It has been designed to print fast, in less than 2-3 seconds per layer, on any SLA DLP & LCD printer* with good results in terms of definition. It is our very simple, low cost bio "eco" plant based resin to prove that your design concepts look OK, its low cost allows you to make changes in your conceptual design before moving to the next stage in your development and printing it with a resin that better suits the desired mechanical properties for your design.
It is simple, cheap, bio based and offered with no thrills - it is only available in a single size for the supply to you (1 kg), and one bio natural red color marker. The color changes to clear as its exposed to UV light, helping you to know when the resin is cured after printing and light post curing Its low medium viscosity (<2000 mPas) helps its simplicity. If you want more then look at our basic or specialist range of resins which offer much much more functionality in terms of material properties. What you see is what you get!!
3Dresyn CD Bio D Clear has these features and benefits:
- natural bio red color which becomes clear after curing
- 40% Bio content
- ultra fast curing in <3 seconds at 50 microns Z layers
- plant based, Bio & Eco resin made from renewable resources
- low medium viscosity <2000 mPas at 25ºC
- Shore hardness D70
- safe handling
- odorless, odor free!
- hard, with minor flexibility
- extreme low shrinkage <2%
- medium tensile abd flexural strength <30 MPa
- Young´s modulus 1400-1800 MPa
- elongation <5%
- high resolution
- printable by most commercial and professional SLA, DLP & LCD 3D printers
- increased durability of the resin tank
- organo-tin free
Note: Despite the high safety standards of this product line, gloves and goggles need to be used when handling these and any other chemicals to ensure maximum safety practices.
