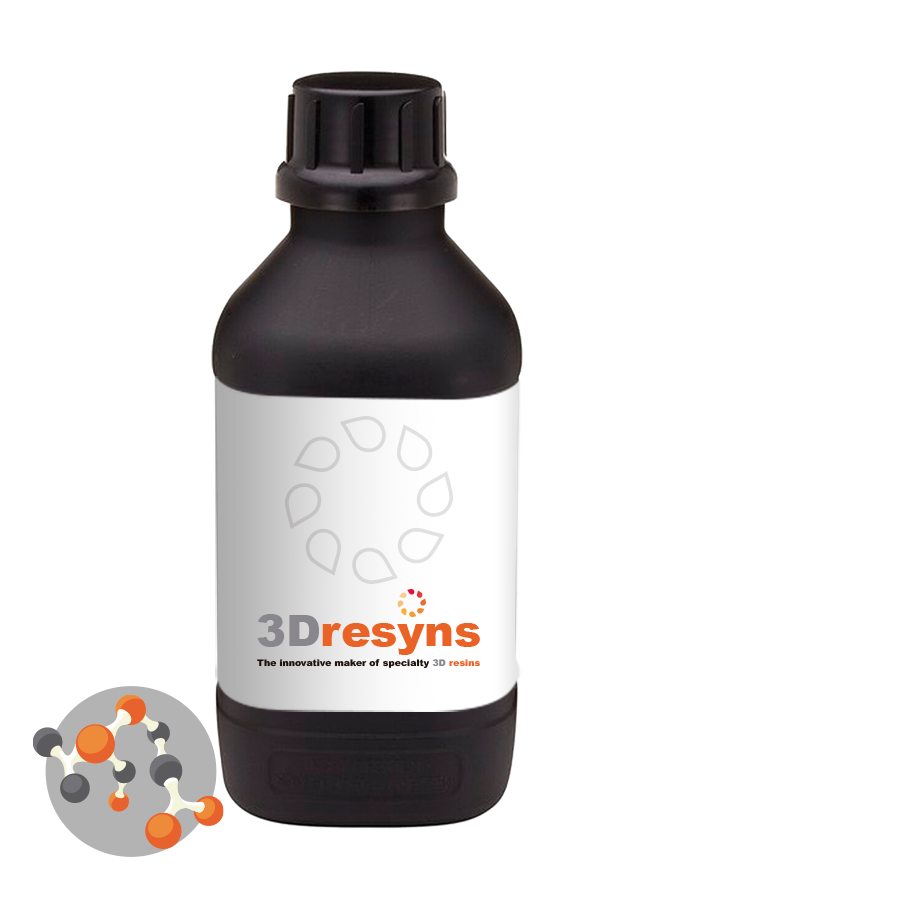

3Dresyn HP1 Clear High Permittivity optically transparent resin

Product description

3Dresyn® HP1 Clear is a high-permittivity optically transparent photopolymer designed for advanced dielectric and electronic applications. The material combines elevated dielectric performance with optical clarity, enabling the fabrication of functional components requiring both electrical performance and visual transparency.

This formulation is based on a highly polar, ultra-pure resin system engineered to achieve enhanced dielectric properties while maintaining excellent printability and surface resolution in SLA, DLP and LCD workflows.

Application framework

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within research, electronics and advanced engineering environments requiring transparent dielectric materials.

Typical applications

• High permittivity dielectric components
• Transparent antennas and sensors
• RF and microwave devices
• Resonators and RF cavities
• Filters and capacitive components
• Optoelectronic and transparent electronic devices

Electrical properties

• Relative permittivity (ε_r): 8–12 (typical)
• Dielectric loss (ε¨): <0.5 at 10 Hz – 1 MHz (0–50 °C)

Material characteristics

• Clear, optically transparent formulation
• High polarity for enhanced permittivity
• Medium hardness material behavior
• Elongation at break: <10%

Functional performance characteristics

• High dielectric constant for advanced electromagnetic design
• Optical transparency enabling multifunctional devices
• Stable dielectric behavior across low-to-mid frequency ranges
• Suitable for integration in optoelectronic systems
• Very high resolution and surface quality

Processing and handling performance

• Printable with most commercial and professional SLA, DLP and LCD systems
• Very low viscosity (<200 mPa·s at 20 °C) enabling fast recoating
• Very low shrinkage for dimensional stability
• Water cleanable processing workflow
• Increased durability of the resin tank

Chemical and safety characteristics

• Biocompatible (final part validation required)
• Ultra safe formulation without hazard pictograms
• Non cytotoxic and ultra pure
• Biodegradable formulation
• Organo-tin free

Processing note

Dielectric performance depends on geometry, frequency range, printing parameters and post-processing conditions. Application-specific validation is required.

Testing & processing disclaimer

Electrical, mechanical and optical properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure parameters, geometry and post-processing workflow.

Disclaimer

This material is supplied as a professional functional material for research and engineering workflows. It is not marketed as a finished electronic or medical device. Final performance and suitability must be validated by the user.

Document reference: TDS-HP1-CLEAR-EN | Version: 1.0 | Last updated: March 2026
