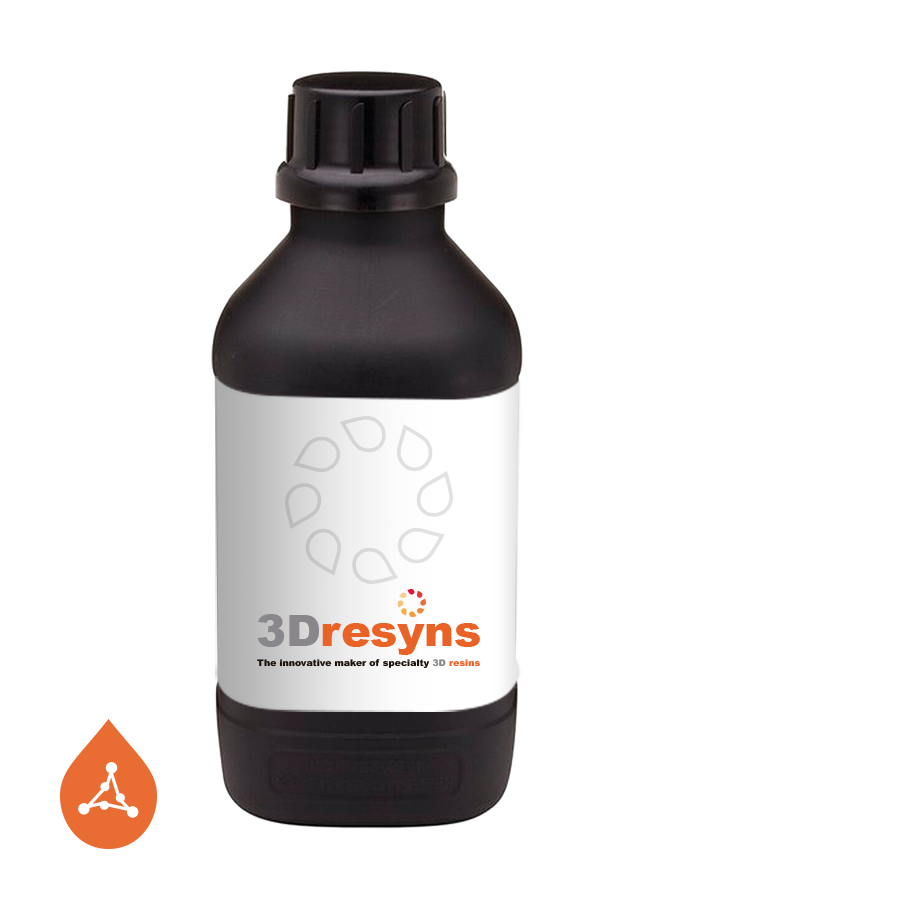

3Dresyn CR UHT has these features and benefits:
- Excellent Chemical Resistance to polar (hydrophilic) and non polar (hydrophobic) chemicals, including most strong chemicals, such as strong alkalis, acids, oxidizing and reducing agents
- Ultra Hard and Tough
- synthetic thermoset crosslinked network material
- high resolution
- high tensile strength >40MPa
- high flexural strength >40 MPa
- very high rigidity (Young modulus > 3000 MPa)
- high impact and shattering resistance (Notched Izod 20-25 J/m)
- high Deflection Temperature >220ºC @0.45MPa
- non deformable non brittle
- excellent dimensional stability
- elongation <2%
- durable
- very low shrinkage
- printable by most commercial and professional SLA DLP & LCD 3D printers
- increased durability of the resin tank
- organo-tin free
Chemical resistance:
|
Solvent
|
Solvent resistance*
|
|
Acetic acid (5%)
|
<0.1%
|
|
Acetone
|
<2%
|
|
Bleach (5% NaOCl)
|
<0.1%
|
|
Butyl acetate
|
<0.1%
|
|
Diesel fuel
|
<0.1%
|
|
Diethyl glycol monomethyl ether
|
<0.1%
|
|
Hydraulic oil
|
<0.1%
|
|
Hydrogen peroxide (3%)
|
<0.1%
|
|
Isooctane (aka gasoline)
|
<0.1%
|
|
Isopropyl alcohol
|
<0.1%
|
|
Mineral oil (light)
|
<0.1%
|
|
Mineral oil (heavy)
|
<0.1%
|
|
Salt water (3.5% NaCl)
|
<0.1%
|
|
Sodium hydroxide (0.0001M NaOH: pH=10)
|
<0.1%
|
|
Strong acid (1M HCl hydrochloric acid: pH=0)
|
<0.1%
|
|
Tripropylene glycol monomethyl ether
|
<0.1%
|
|
Water
|
<0.01%
|
|
Xylene
|
<0.1%
|
*weight increase (%) after 24 hour exposure to solvent
