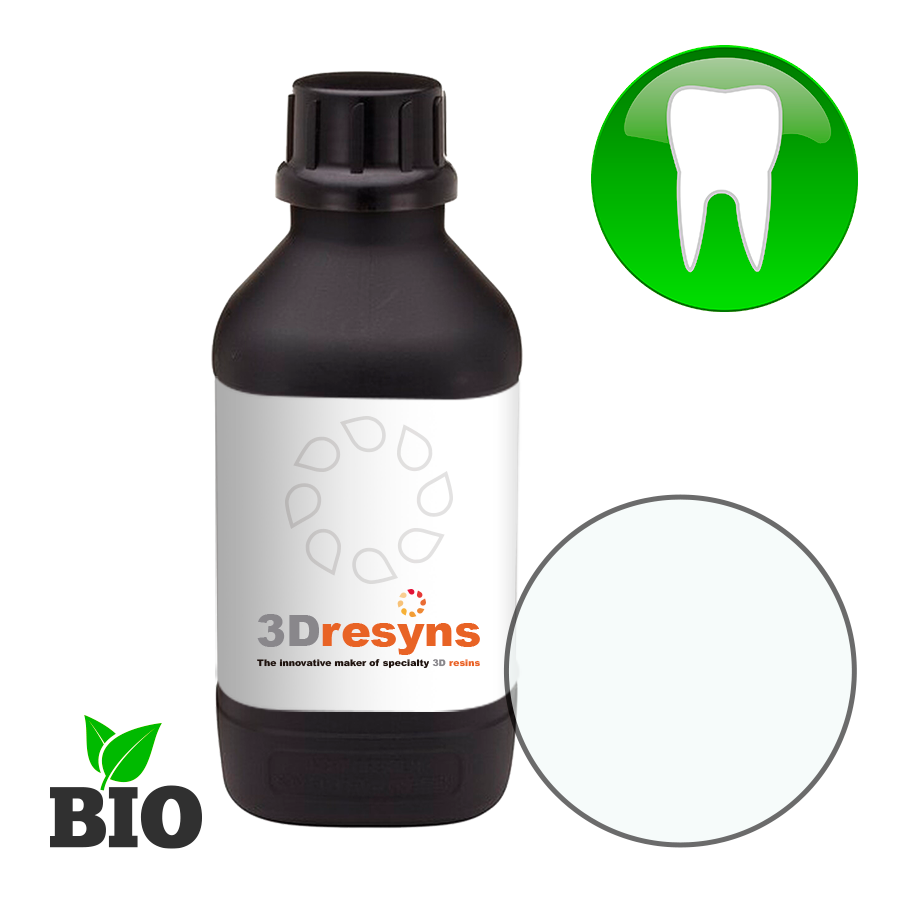

3Dresyn OD-Clear TF LTP – Tough & Foldable Photopolymer for Professional Orthodontic Laboratory Workflows

Product description

3Dresyn® OD-Clear TF LTP is an advanced photopolymer engineered for the fabrication of aligners and dental protection appliances such as night guards and occlusal splints.

The material provides a balanced combination of toughness, comfort and controlled flexibility under load, enabling durable performance in cyclic mechanical environments.

The formulation is based on 4D Shape Memory Polymer (SMP) architecture, supporting shape recovery behaviour and stable mechanical response depending on geometry, thickness and processing conditions.

It is available in LV (lower viscosity) and HV (higher mechanical performance) versions for compatibility across SLA, DLP and LCD systems.

Application framework

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing for dental laboratory workflows.

Final suitability of printed parts must be validated by the user according to the specific application, processing conditions and applicable regulatory requirements.

Typical applications

• Orthodontic aligners and teeth movement systems

• Night guards and occlusal splints
• Dental protection appliances for bruxism and clenching
• Custom dental protective devices requiring resilience and comfort
• Flexible dental components and positioning elements

Measured mechanical properties

• Tensile strength: <40 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <40 MPa (ISO 178 / ISO 20795-1)
• Young’s modulus: 600–1200 MPa (ISO 527-1 / ISO 527-2)
• Elongation at break: <30% (ISO 527-1 / ISO 527-2)
• Shore hardness: D60–70 (ISO 868)
• Impact resistance (Notched Izod): <70 J/m (ISO 180)

Measured physical properties

• Optical behaviour: excellent clarity and non-yellowing
• Water solubility: ≤1.6 µg/mm³ (ISO 20795-1 reference framework)
• Water sorption (ULWA): ≤32 µg/mm³ (ISO 20795-1 reference framework)
• Residual monomer: <0.1% when properly cured and post-processed (internal method)
• Shrinkage: very low
• Resolution capability: up to 20 µm
• Viscosity of HV version: <8000 mPas at 23°C ± 2°C (ISO 3219)
• Viscosity of LV version: <4000 mPas at 23°C ± 2°C (ISO 3219)

Functional performance characteristics

• Controlled flexibility under load for improved comfort
• Shape recovery behaviour under cyclic stress
• Balanced stiffness for protection and wear resistance
• High durability under repeated mechanical loading
• 4D Shape Memory Polymer (SMP) architecture
• Shape memory activation via thermal stimulus

Processing and handling performance

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• Compatible with open-parameter vat photopolymerization systems
• LV version optimized for printing below ~25 °C
• HV version optimized for printing above ~25 °C and enhanced mechanical performance
• Suitable for thin structures down to 0.2–0.3 mm
• Follow 3Dresyns IFU for exposure, washing and post-curing to achieve target performance

Chemical and safety characteristics

• Organo-tin free formulation

Biocompatibility framework

• Biocompatibility-related testing may be performed depending on formulation and validated workflow
• Evaluation frameworks may include ISO 20795 and ISO 10993 methodologies
• Manufacturing aligned with ISO 13485 quality management systems
• Final biological performance depends on validated processing workflow

Testing & processing disclaimer

Material properties are measured on printed and post-processed specimens and may vary depending on material version, printer type, printing parameters, build orientation, post-curing conditions and workflow validation. Reported values are indicative and provided for reference only.

Disclaimer

This material is supplied as a professional manufacturing material for dental laboratory workflows and is not marketed as a finished medical device. The regulatory classification, conformity assessment and validation of any final dental appliance manufactured using this material remain the sole responsibility of the legal manufacturer in accordance with applicable regulations, including Regulation (EU) 2017/745.

Document reference: TDS-OD-CLEAR-TF-LTP-EN | Version: 2.0 | Last updated: March 2026
