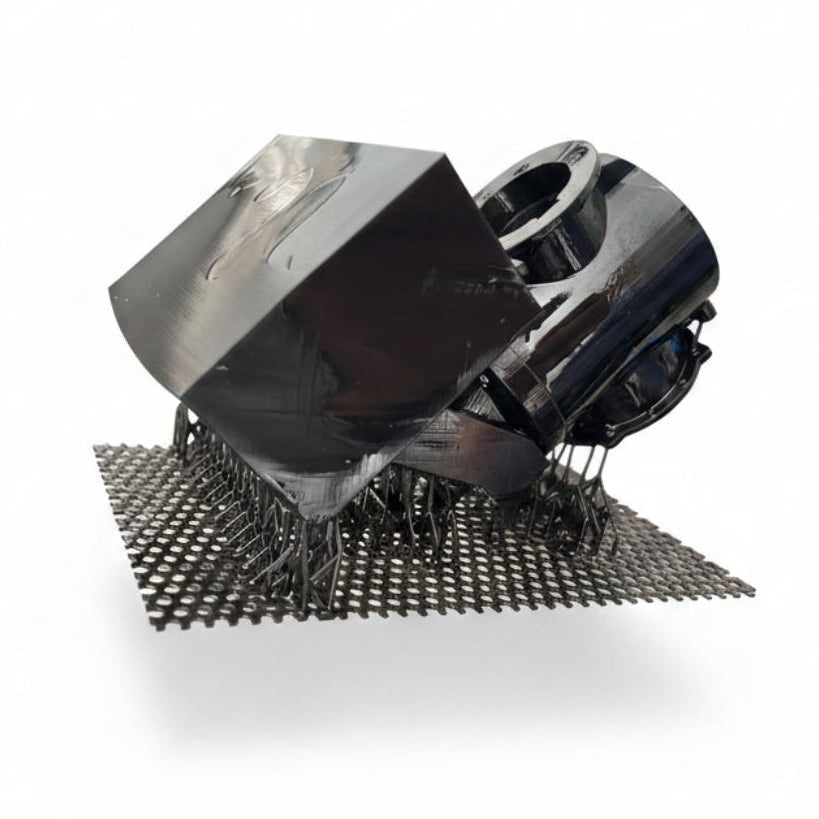

3Dresyn Biorigid R140D90 Ultra-Rigid Heat-Resistant Biocompatible Resin

Product description

3Dresyn® Biorigid R140D90 is an ultra-rigid biocompatible photopolymer engineered to provide very high stiffness, dimensional precision and thermal resistance up to 140 °C.

The material is designed for advanced engineering and regulated manufacturing environments requiring predictable mechanical and thermal performance.

Application framework

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing systems operating in the 385–405 nm range.

Final suitability of printed parts must be validated by the user according to the specific application, processing conditions and applicable regulatory requirements.

Typical applications

• Rigid structural and technical components
• High-stiffness fixtures and tooling
• Dimensional models and prototypes
• Functional parts for regulated environments

Measured mechanical properties

• Tensile strength: 45–65 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: 80–110 MPa (ISO 178)
• Young’s modulus: 2600–3200 MPa (ISO 527)
• Elongation at break: <8% (ISO 527)
• Shore hardness: D90 (ISO 868)

Measured thermal properties

• Heat deflection temperature (HDT): 130–145 °C (ISO 75)

Measured physical properties

• Density: 1.0–1.2 g/cm³ (ISO 1183)
• Water absorption: <0.1% (ISO 62)
• Shrinkage: very low

Functional performance characteristics

• Ultra-rigid high-performance system
• High stiffness
• Thermal resistance
• Dimensional stability

Processing and handling performance

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• Post-curing required
• Available units: 500 g, 1,000 g

Chemical and safety characteristics

• Biocompatible material platform

Biocompatibility framework

• ISO 10993 evaluated
• ISO 13485 manufacturing
• Processing-dependent performance

Testing & processing disclaimer

Values are indicative and process-dependent.

Disclaimer

Not a medical device. Responsibility lies with the legal manufacturer.

Document reference: TDS-BIORIGID-R140D90-EN | Version: [X.X] | Last updated: [Month Year]
