3Dresyn Biotough D80 MF Monomer-Free Tough Semi-Rigid Biocompatible Resin

Product description

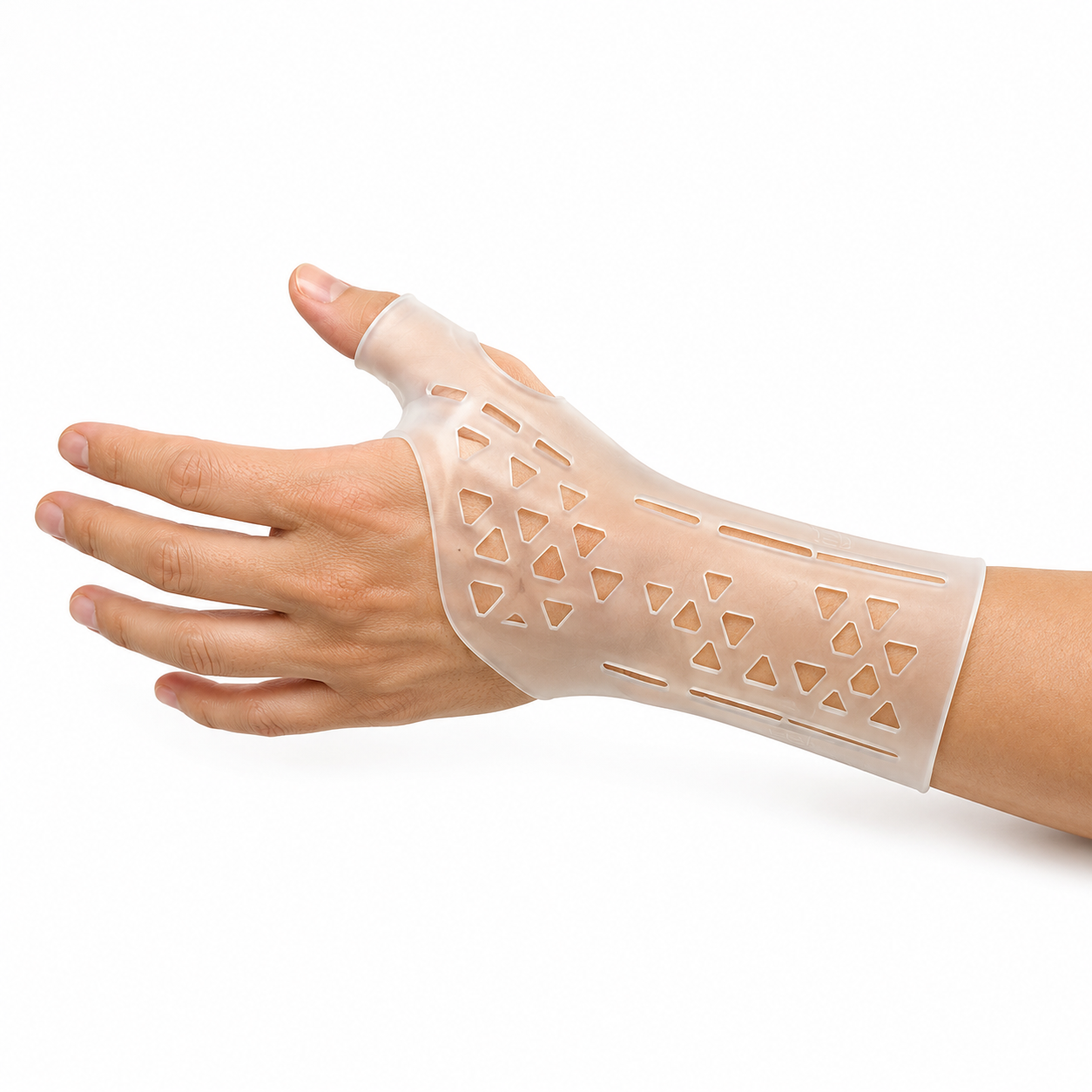

3Dresyn® Biotough D80 MF is a biocompatible, monomer-free photopolymer resin engineered to provide a balanced combination of rigidity and toughness, with improved resistance to impact, mechanical fatigue and crack propagation compared to more rigid grades.

The material is designed for professional additive manufacturing workflows requiring controlled mechanical behavior and dimensional stability.

Application framework

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing systems operating in the 385–405 nm range.

Final suitability of printed parts must be validated by the user according to the specific application, processing conditions and applicable regulatory requirements.

Typical applications

• Impact-resistant structural components
• Durable positioning fixtures and tooling
• Functional prototypes under mechanical load
• Technical and anatomical models requiring improved toughness

Measured mechanical properties

• Tensile strength: 35–55 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: 60–90 MPa (ISO 178)
• Young’s modulus: 1700–2400 MPa (ISO 527-1 / ISO 527-2)
• Elongation at break: 10–20 % (ISO 527-1 / ISO 527-2)
• Shore hardness: D80 (ISO 868)

Measured thermal properties

• Heat deflection temperature (HDT): <70 °C @ 0.45 MPa (ISO 75)

Measured physical properties

• Density: 1.0–1.2 g/cm³ (ISO 1183)
• Water absorption: <0.1 % (24 h @ 23 °C) (ISO 62)
• Shrinkage: very low

Functional performance characteristics

• Balanced rigidity and toughness
• Improved resistance to impact, mechanical fatigue and crack propagation
• Good dimensional stability
• Designed for durable functional and regulated applications
• Monomer-free biocompatible formulation

Processing and handling performance

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• Proper washing and post-curing are required to achieve final mechanical properties and biocompatibility outcomes
• Material behavior depends on printer, parameters, geometry, washing, post-curing and workflow control
• Available units: 500 g, 1,000 g

Chemical and safety characteristics

• Monomer-free system architecture designed to minimize residual extractables after proper post-processing

Biocompatibility framework

• Biocompatibility evaluated according to ISO 10993 on post-cured and properly cleansed specimens
• Manufacturing aligned with ISO 13485 quality management systems

Testing & processing disclaimer

Material properties are measured on printed and post-processed specimens and may vary depending on the selected material version, printer type, printing parameters, build orientation, post-curing conditions and specimen preparation. Reported values are indicative and provided for reference only.

Disclaimer

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. The regulatory classification, conformity assessment and validation of any final device manufactured using this material remain the sole responsibility of the legal manufacturer.

Document reference: TDS-BIOTOUGH-D80-MF-EN | Version: 2.0 | Last updated: March 2026
