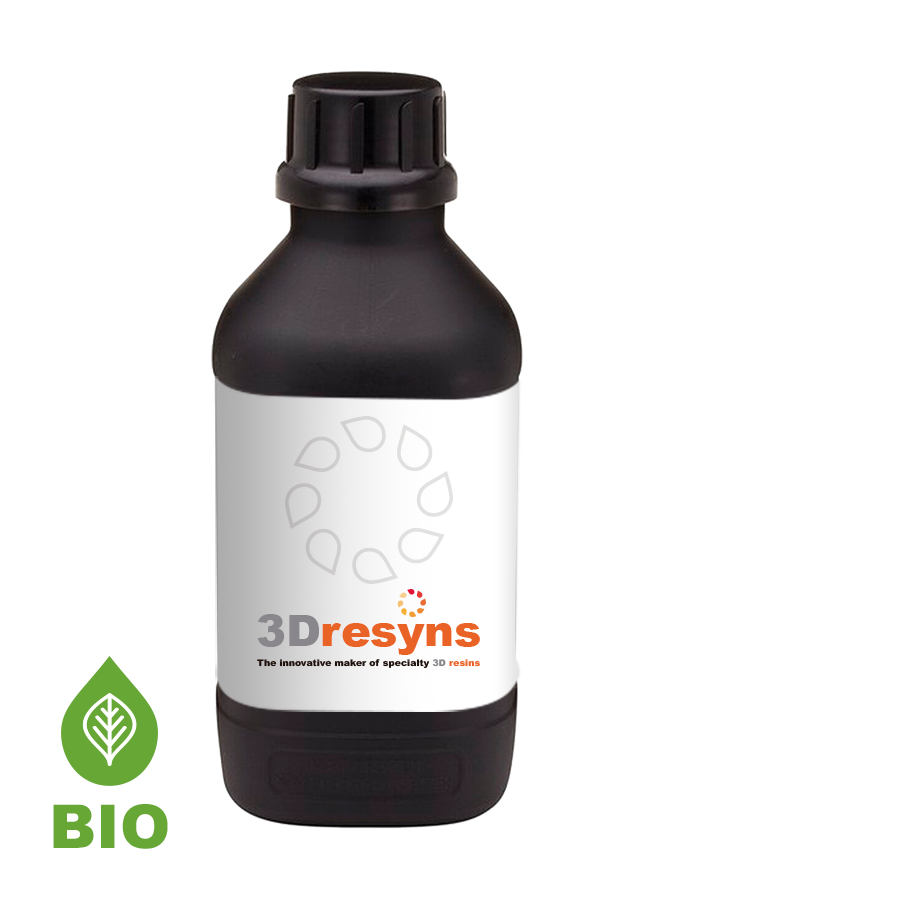

3Dresyn CD Bio D Clear Bio-Based Clear Prototyping Resin

3Dresyn CD Bio D Clear is a bio-based Conceptual Design photopolymer resin developed for fast proof-of-concept printing and early-stage model fabrication. The formulation is designed to provide rapid curing, good print definition and cost-effective workflow simplicity for conceptual validation applications.

This plant-based resin incorporates renewable-source content and is intended for users requiring a low-cost material for rapid design iteration before transition to more specialized engineering or application-specific photopolymers. The material is supplied in a natural bio-red color that becomes clear after UV exposure, providing a visual indicator of curing progress during printing and post-curing.

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within professional and laboratory environments for proof-of-concept printing, concept validation and general model fabrication workflows.

• Proof-of-concept parts
• Conceptual design models
• General-purpose visual prototypes
• Early-stage validation parts prior to transition to higher-performance materials

• Tensile strength: <30 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <30 MPa (ISO 178)
• Young’s modulus: 1400–1800 MPa (ISO 527)
• Elongation at break: <5% (ISO 527)
• Shore hardness: D70 (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Printing shrinkage: no measurable dimensional shrinkage after calibration under validated processing conditions
• Resolution capability: high (process-dependent)

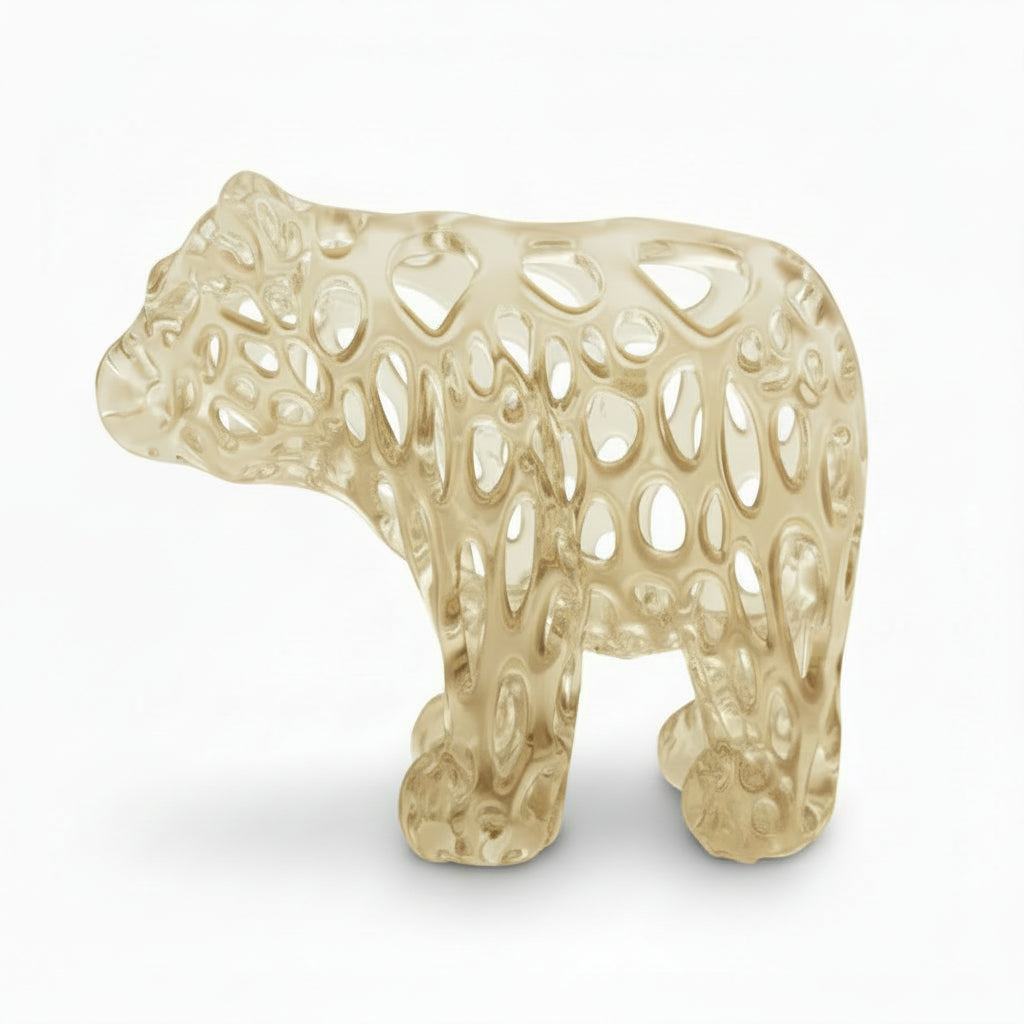

• Color behavior: natural bio-red as supplied, changing to clear yellowish after printing
• Bio-based content: ~40%
• Viscosity: <2000 mPas at 23°C ± 2°C (ISO 3219)

• Ultra-fast curing for high-throughput proof-of-concept workflows
• Good print definition for conceptual validation
• Hard material with minor flexibility
• Visual cure-state indication through color change (shift from reddish to yellowish) rafter UV exposure
• Supports use of renewable-source raw materials in additive manufacturing workflows

• Printing technologies: SLA, DLP and LCD
• Fast curing: <3 seconds per layer at 50 µm
• Low-medium viscosity for easy handling and cleaning
• Printable on most commercial and professional SLA, DLP and LCD 3D printers
• Increased durability of the resin tank

• Plant-based photopolymer formulation
• Bio-based and renewable-resource content
• Organo-tin free formulation
• Odorless formulation

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, wavelength, layer thickness, build orientation, washing procedure, post-curing conditions and specimen preparation. Performance must be validated by the user under the intended workflow conditions.

This material is supplied as a professional manufacturing material for proof-of-concept and model fabrication workflows. It is not marketed as a finished medical device. The regulatory classification and compliance of any final part manufactured using this material remain the responsibility of the user or legal manufacturer according to the intended application and applicable regulations.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
