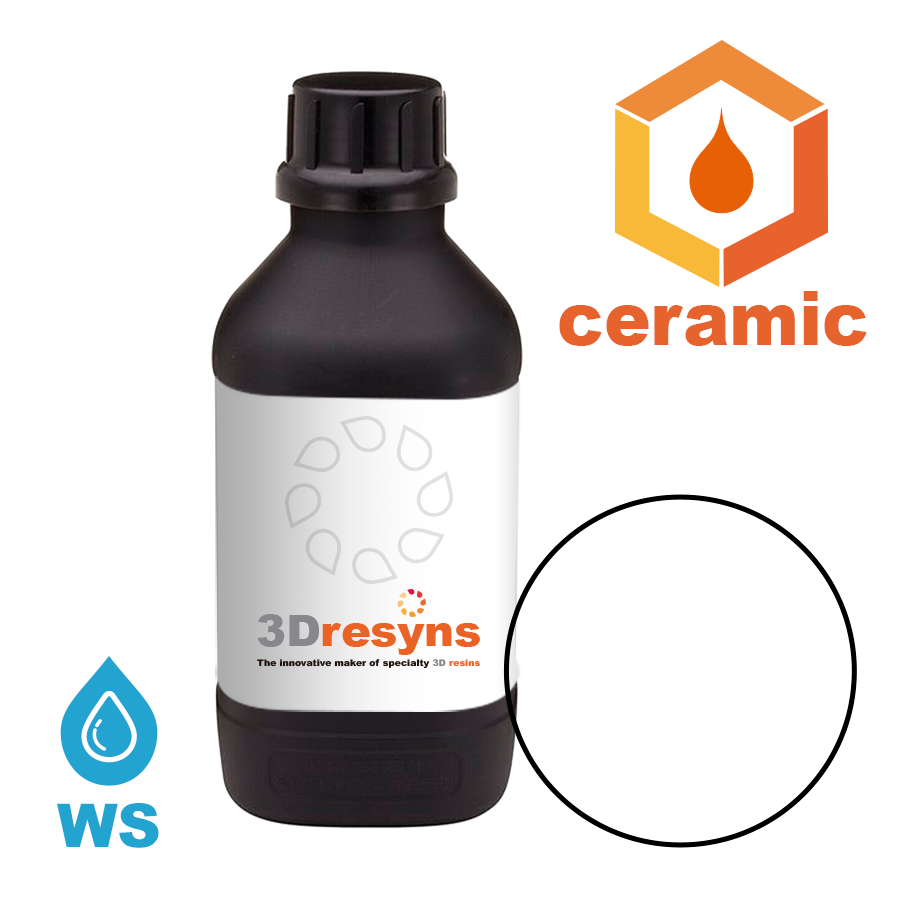

3Dresyn CDP-LDT WS, Low Debinding Temperature & Water Soluble 3D resin for printing, debinding and sintering ceramic, metal, polymer and exotic powders
3Dresyn CDP-LDT WS has these features and benefits:
- Low Debinding Temperature & Water Soluble 3D resin for sintering ceramic, metal, polymer, and exotic micron and submicron nano powders
- lower wetting and dispersing yield than its benchmark Ceramic 3Dresyn UDP-LDT WS
- ideal for low sintering temperature materials with high surface area and viscosity
- part of the 3D resin has low decomposition temperature c.180-220C, which is ideal for relatively low temperature debinding
- part of the binder has higher decomposition temperature but exhibits good water solubility for fast debinding with cold or hot water
- part of the 3D resin is easy to oxidise into small volatile molecules with oxidizers e.g. with Potassium permanganate acidic solutions
- the overall 3D resin system exhibits very fast debinding with water at room and at relatively low debinding temperature c.180-220ºC
- excellent dispersability and flow of post added sintering ceramic, metal, polymer, and exotic micron and submicron powders
- the ceramic additions can be up to 50% volume concentrations
- water cleanable prints and water soluble 3D resin for improved debinding with water
- very high resolution 3D printing for very high detail and resolution applications
- high print quality and speed with curing wavelengths up to 410 nm and higher upon request
- controlled and reproducible process shrinkage which depends on final % powder and 3D resin
- minimum expansion coefficient to prevent micro-fractures
- elongation <10%
- relative low viscosity, good flow
- very high resolution of 20 microns of final products
- low shrinkage
- printable by SLA DLP 3D printers
- increased durability of the resin tank
- organo-tin free
- used in combination with our Adhesive Primer 3Dresyn AP1 for promoting adhesion on the build platform when high powder loads are used
