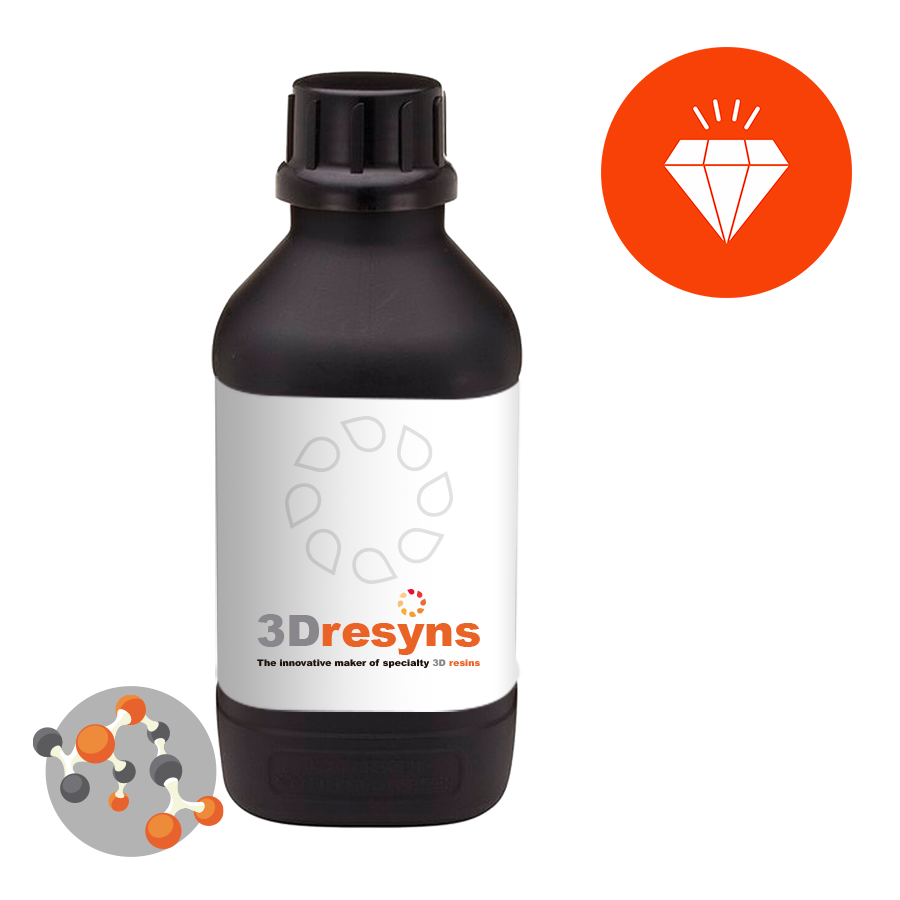

3Dresyn IJ HDT2 High Heat Deflection Temperature

3Dresyn IJ HDT2 High Heat Deflection Temperature is an ultra rigid high-temperature photopolymer formulation designed for demanding inkjet 3D printing applications requiring very high hardness, very high rigidity and exceptional thermal resistance. The material is engineered to deliver rigid structural performance together with very high resolution, very low shrinkage and reliable inkjet printability.

This formulation provides a combination of high rigidity, very low elongation and very high Shore hardness, enabling the fabrication of ultra rigid parts with excellent thermal resistance and controlled dimensional stability for demanding engineering and high-temperature applications.

Designed for use in commercial and professional inkjet 3D printing systems within industrial and engineering environments for manufacturing ultra rigid, high-temperature and structurally stable components.

• High-temperature engineering components
• Functional prototypes requiring very high rigidity
• Thermally resistant structural parts
• High-resolution rigid technical models

• Tensile strength: < 60 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: < 140 MPa (ISO 178)
• Young’s modulus: < 5000 MPa (ISO 527-1 / ISO 527-2)
• Elongation at break: < 1 % (ISO 527-1 / ISO 527-2)
• Impact resistance, Notched Izod: < 25 J/m (ISO 180)
• Shore hardness: Shore D90 ± 3 (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Viscosity: < 20 mPas at 70°C and < 15 mPas at 80°C (ISO 3219)

• Heat deflection temperature (HDT): < 290 °C @ 0.45 MPa (ISO 75)

• Ultra rigid material behavior with minor unavoidable brittleness for its rigidity
• Very high hardness and rigidity
• Very high thermal resistance
• Medium impact and shattering resistance
• Durable performance for high-temperature applications

• Printing technology: inkjet 3D printing
• Printable with most commercial and professional inkjet 3D printers
• Stratasys: Objet Eden 260V, 260VS, 333, 350, 350V, 500, 500V, 1000 Plus, J750, Objet Connex 260, 350 and 500 series
• 3D Systems: ProJet MJP 2500, 2500+, 3500, 3510 and 3600 Plastic series
• Reliable processing in demanding inkjet workflows

• Biocompatible formulation
• Synthetic resin source
• Organo-tin free formulation

Material properties are measured under controlled laboratory conditions and may vary depending on printer model, jetting temperature, printing conditions, build geometry and post-processing workflow.

This material is supplied as a professional manufacturing material for engineering and prototyping workflows. It is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.
