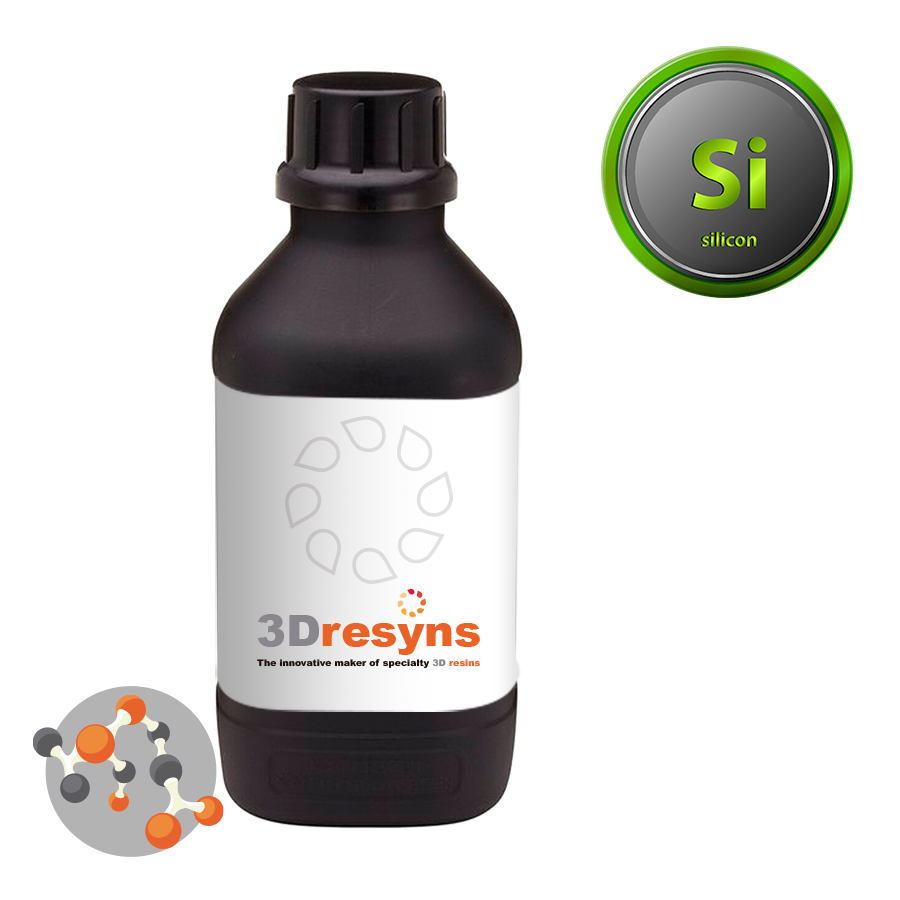

3Dresyn NMF PDMS-like A30 Bio, Biocompatible very soft silicone like photopolymer with Shore A30 for nano and micro fabrication

Product description

3Dresyn NMF PDMS-like A30 Bio is a UV & EB curable organic soft and elastic photopolymer for nano and micro fabrication, including photolithography and soft lithography, printing of soft and elastic stamps for Nano Imprinting Lithography NIL, and soft & elastic negative photoresists for standard UV lithography, PCB technology processing, and UV patterning of core and cladding.

This resin exhibits properties similar to silicone elastomers PDMS, but with increased tear and mechanical resistance.

Application framework

Designed for nano and micro fabrication, photolithography, soft lithography, UV lithography, PCB technology processing, Nano Imprinting Lithography NIL, spin coating, Reactive Ion Etching, wet and dry etching, and optical microfabrication workflows.

Typical applications

• UV curable molds for soft lithography
• LED lighting encapsulation
• Power supplies
• Sensors
• Connectors
• Transformers
• Amplifiers
• Industrial controls
• High voltage resistors
• Relays
• Adhesive / encapsulant for solar cells
• Photocurable adhesive for integrated circuits during processing
• Transparent stamp fabrication as an alternative to quartz stamps
• Mass sensors based on UV-NIL, ALD and RIE

Measured mechanical properties

• Tensile strength: <3 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <3 MPa (ISO 178)
• Young’s modulus: <5 MPa (ISO 527)
• Elongation at break: >100% (ISO 527)
• Shore hardness: A30 (ISO 868)

Measured physical properties

• Imprint temperature: up to 160ºC (short term)
• Refractive index: 1.45-1.55
• Printing resolution: less than 10 nm
• Shrinkage: <1%
• Viscosity: mPas at 23°C ± 2°C (ISO 3219)

Functional performance characteristics

• Similar properties to silicone elastomers PDMS but increased tear and mechanical resistance
• UV curable: excellent photoreactivity at 250-410 nm with medium energy dosage
• Electron beam EB curable
• Compatible and blendable with our 3Dreyns for nano & micro fabrication
• 100% foldable without breaking
• Durable
• High optical clarity
• High durability, non degradable
• Excellent bonding, low risk of debonding
• Higher mechanical properties, with low risk of cracking
• Very low degassing at high vacuum
• Low oxygen sensitivity
• High mechanical stability
• Low-medium penetration
• Low surface tension with good release and demolding properties
• 100% organic (free of inorganic materials)
• Optionally it can contain hydroxyl groups for bonding release agents, such as perfluorodecyltrichlorosilane (FDTS)

Processing and handling performance

• Excellent balance of low viscosity for easy imprinting and low penetration
• Long shelf life of 1 year
• Excellent spin coating application
• Excellent etching with Reactive Ion Etching
• Excellent stability and chemical resistance to a wide range of wet chemistries used in the clean room
• No thermal treatment is required
• Easy processing with standard lithography equipment
• Easy removal of uncured resin with ketones, alcohols and esters

Chemical and safety characteristics

• UV & EB curable organic photopolymer
• Synthetic resin source
• Organo-tin free
• 100% organic (free of inorganic materials)

Testing & processing disclaimer

Note: this resin exhibits lower temperature resistance than conventional RTV silicones. Final imprinting behavior, lithography behavior, etching performance, optical properties, substrate compatibility and processing performance must be validated by the user according to the intended application and processing conditions.

Disclaimer

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-3DRESYN-NMF-PDMS-LIKE-A30-BIO-EN | Version: 1.0 | Last updated: March 2026
