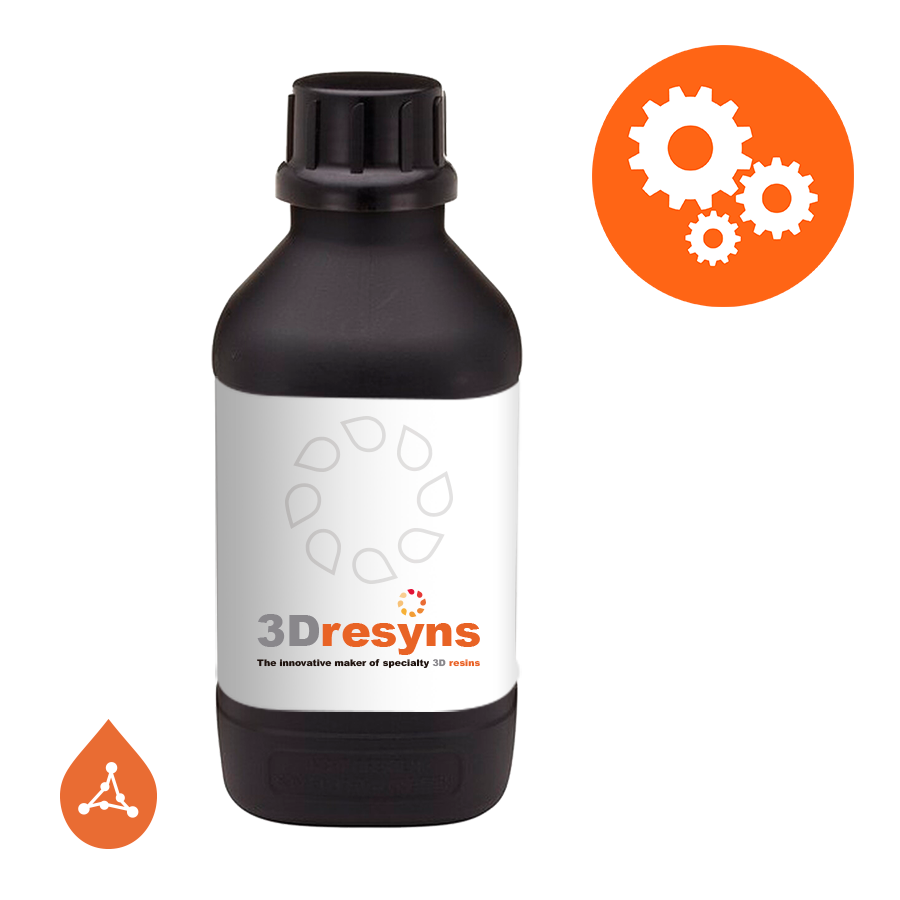

3Dresyn PP TD90 Tough & Rigid D90

Product description

3Dresyn PP TD90 is an ultra-rigid and tough photopolymer designed for the fabrication of high-precision printing plates and structured surfaces requiring maximum dimensional stability and minimal deformation under load.

The material provides a high-modulus mechanical response with excellent impact resistance, enabling the production of durable plates with sharp feature definition and stable geometry during repeated contact cycles.

Application framework

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within professional and industrial environments for rigid, high-resolution printing plates and structured components.

Particularly suitable for rigid contact printing technologies where minimal deformation and high geometric fidelity are required.

Typical applications

• Letterpress printing plates
• Embossing and debossing plates
• Pad printing clichés (short and medium production runs)
• Microstructured plates and surface patterning
• High-resolution relief plates

Measured mechanical properties

• Tensile strength: >50 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: >90 MPa (ISO 178)
• Young’s modulus: 2000–3000 MPa (ISO 527)
• Elongation at break: <4% (ISO 527)
• Shore hardness: D90 (ISO 868)

Measured physical properties

• Shrinkage: very low (typical)
• Resolution capability: very high (process-dependent)
• Dimensional stability: excellent

Functional performance characteristics

• Ultra-rigid material behavior with minimal deformation under load
• High geometric precision for fine feature reproduction
• High impact and shattering resistance
• Excellent dimensional stability under repeated contact cycles
• Low wear under mechanical contact
• Suitable for rigid contact printing where deformation must be minimized
• Capable of reproducing fine engraved features for pad printing (intaglio geometries)

Printing plate performance

• Contact behavior: rigid (no compression)
• Ink transfer: governed by geometry (relief or engraved features)
• Recovery: non-elastomeric
• Best suited for: letterpress, embossing and pad printing clichés
• Pad printing note: suitable for short to medium runs where high resolution and rapid customization are required
• Not suitable for: flexographic printing requiring elastic deformation

Processing and handling performance

• Printing technologies: SLA, DLP and LCD
• Compatible with most commercial and professional systems when properly calibrated
• Stable processing and reliable printability
• Increased durability of the resin tank during printing

Chemical and safety characteristics

• Biocompatible (final part validation required)
• Synthetic resin base
• Organo-tin free formulation

Testing & processing disclaimer

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure conditions, layer thickness, build orientation and post-processing workflow.

Disclaimer

This material is supplied as a professional manufacturing material for engineering and printing workflows. It is not marketed as a finished product. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-PP-TD90-EN | Version: 2.1 | Last updated: March 2026
