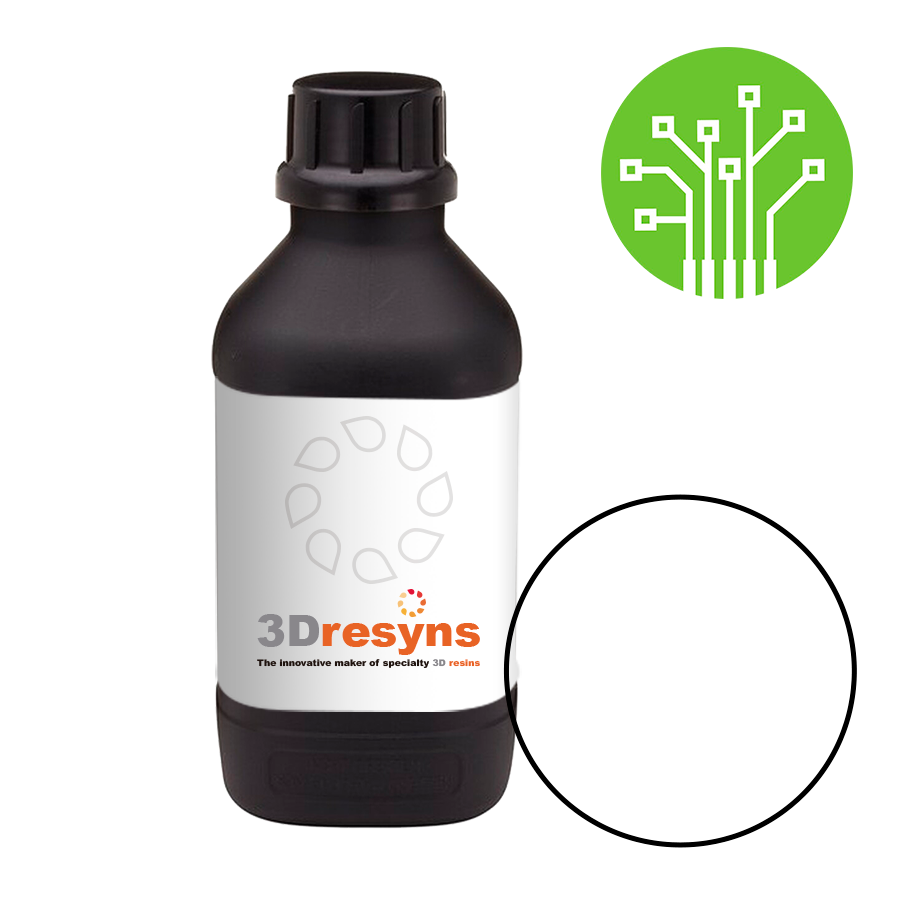

3Dresyn Research HydroGel SLA1 is a photocurable hydrogel resin system for SLA, DLP and LCD additive manufacturing in pharmaceutical and biomedical research environments.

3Dresyn® Research HydroGel SLA1 is a photocurable hydrogel resin system developed for SLA, DLP and LCD additive manufacturing in pharmaceutical and biomedical research environments, enabling controlled swelling and release behavior for advanced hydrogel research.

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within controlled laboratory environments. Suitable for hydrogel research, formulation development, and in-vitro studies involving swelling, permeability and controlled release.

This material is strictly for research and development use only. It is not a medicinal product, not a medical device, not a pharmaceutical excipient and is not approved for clinical use, human administration or commercialization.

Any translation of research results into clinical or regulated applications requires full independent regulatory evaluation, including biocompatibility, toxicological assessment, extractables and leachables studies and formal authorization by the responsible legal entity.

• Hydrogel research prototypes for controlled-release modeling
• In-vitro swelling, permeability and diffusion studies
• Drug-loading feasibility studies (non-clinical)
• Hydrogel formulation development
• Research method development in additive manufacturing

• Base — water-compatible route (anhydrous)
• Hydrated 10 / 20 / 30 — pre-hydrated variants with increasing water content
• Variants differ in hydration level and resulting swelling behavior

• Photocurable hydrogel system for SLA, DLP and LCD printing
• Pre-hydrated variants to tune swelling and release behavior
• Two kinetic routes: water-compatible or high-speed curing
• Low-temperature processing suitable for thermosensitive compounds
• Tunable swelling and release via hydration level and post-processing
• Defined and reproducible printing window
• Compatible with 365, 385, 405 nm and selected visible-light systems

• Swelling and permeability increase with hydration level
• Crosslink density influences stiffness and release rate
• Hydrated variants are softer and more elastic
• Anhydrous variants are relatively stiffer within hydrogel range
• Dimensional fidelity achievable at 25–200 µm layers
• Material behavior depends on hydration, exposure and geometry

• Work under amber or low-blue light conditions
• Use clean and dry laboratory equipment
• Apply gentle mixing to avoid bubble formation
• Avoid premature UV exposure before printing
• Degas gently when required
• Printable with SLA, DLP and LCD systems

Hydrogel behavior is strongly dependent on hydration state, exposure conditions, geometry and post-processing. Variations in these parameters can significantly affect swelling, mechanical response and release kinetics.

Material performance, swelling behavior, permeability and release characteristics depend on the complete material–printer–process–conditioning workflow. Full validation is required for each research objective using appropriate analytical methods.

• Dedicated hydrogel system for additive manufacturing research
• Tunable swelling and release behavior
• Compatible with multiple curing wavelengths
• Suitable for thermosensitive research compounds
• Flexible formulation and processing window for R&D

This material is supplied as a professional research material and is not marketed as a finished product. It is not approved for pharmaceutical manufacturing, clinical investigation or therapeutic use. All regulatory responsibility remains with the user.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.

Access the 3Dresyns® Technical Resources (IFU, calibration, CRT, post-processing and troubleshooting)
