3Dresyn SF soft & flexible

Product description

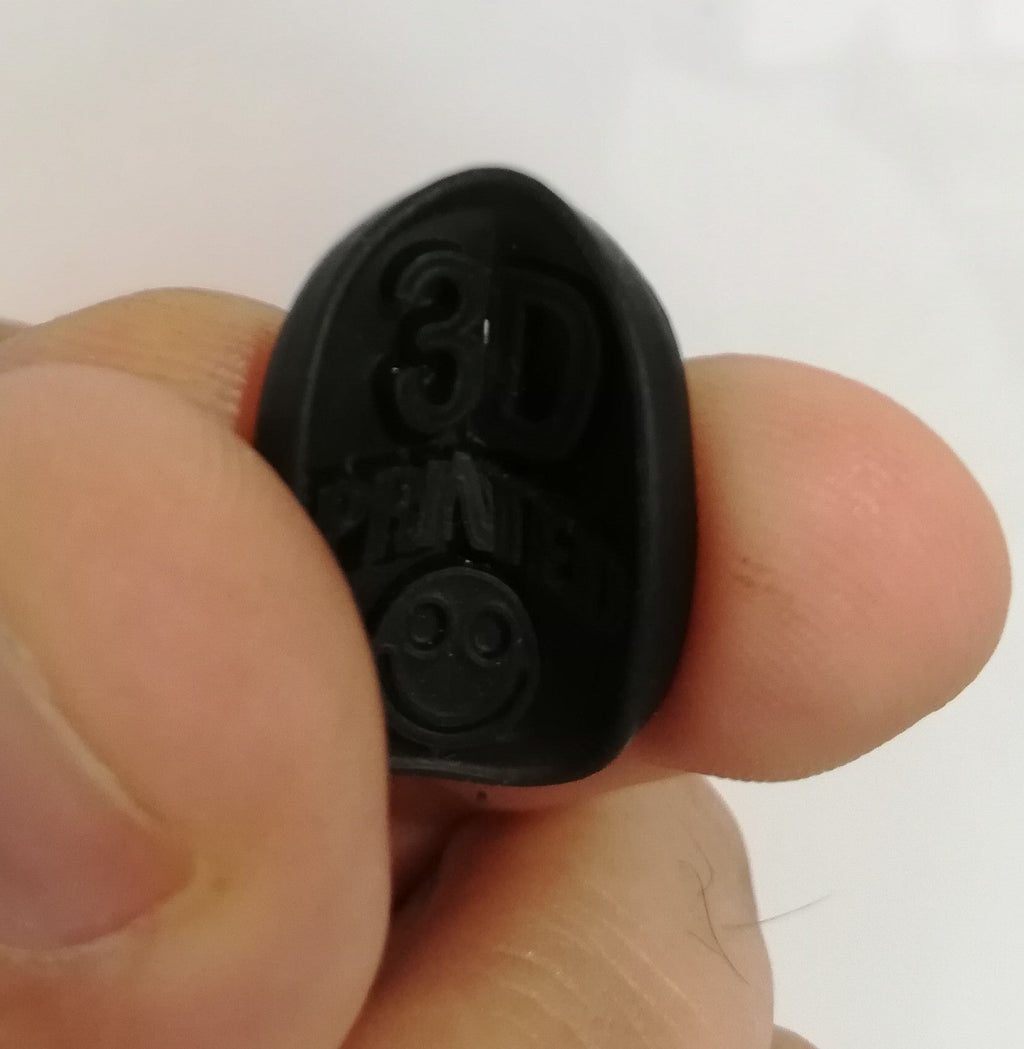

3Dresyn SF is a soft and flexible photopolymer formulation designed for applications requiring low stiffness, high elasticity and reliable deformation without fracture. The material enables the fabrication of soft components with elastomer-like behavior and consistent mechanical response.

This formulation is optimized for high-resolution printing and very low viscosity processing, supporting fine feature fabrication in soft and flexible applications.

Application framework

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within professional and industrial environments for soft, flexible and deformable components.

Typical applications

• Soft flexible components
• Wearable and ergonomic parts
• Cushioning and damping elements
• Elastomer-like prototypes

Measured mechanical properties

• Tensile strength: <3 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <2 MPa (ISO 178)
• Young’s modulus: <3 MPa (ISO 527)
• Elongation at break: >100% (ISO 527)
• Shore hardness: A30 (ISO 868)

Measured physical properties

• Viscosity: <50 mPa·s at 25 °C (very low viscosity)
• Shrinkage: <1% (typical)
• Resolution capability: very high (process-dependent)

Functional performance characteristics

• Soft and flexible material behavior
• 100% foldability without breaking
• High elongation and deformation capability
• Durable under repeated mechanical stress
• Very low shrinkage supporting dimensional stability

Processing and handling performance

• Printing technologies: SLA, DLP and LCD
• Compatible with most commercial and professional systems when properly calibrated
• Very low viscosity enabling excellent flow and recoating

Chemical and safety characteristics

• Organo-tin free formulation
• BPA-free formulation
• Transition metal-free formulation

Testing & processing disclaimer

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure conditions, layer thickness, build orientation and post-processing workflow.

Disclaimer

This material is supplied as a professional manufacturing material for engineering and prototyping workflows. It is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-SF-EN | Version: 1.0 | Last updated: March 2026
