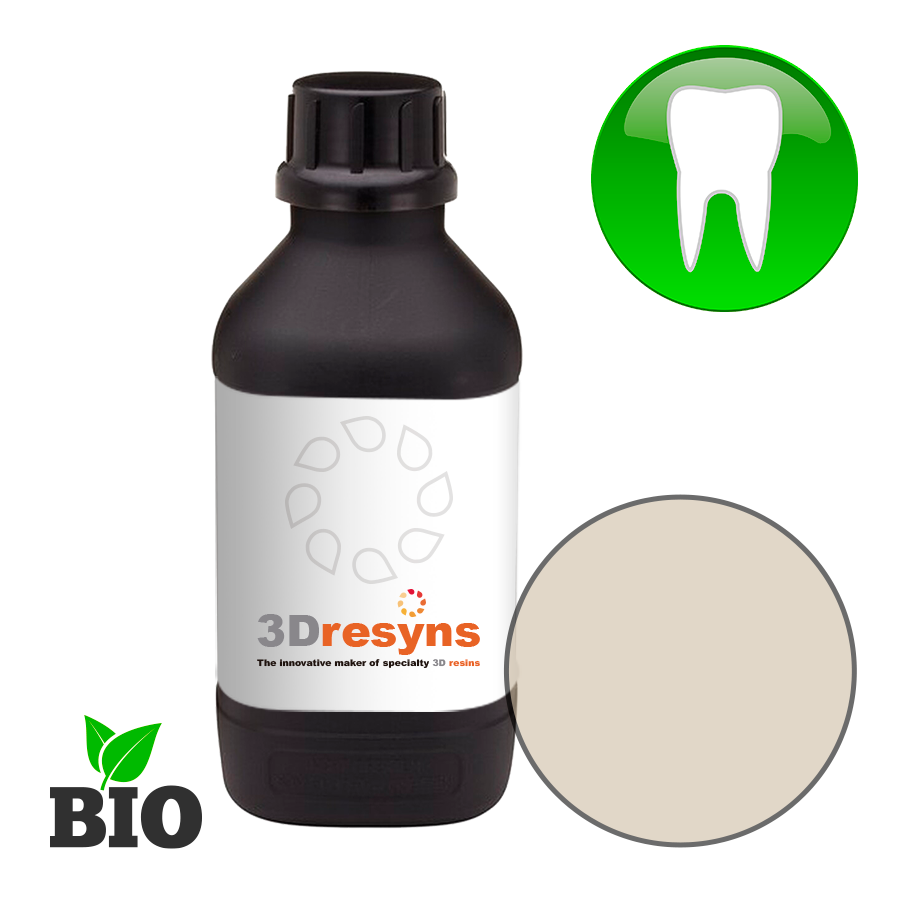

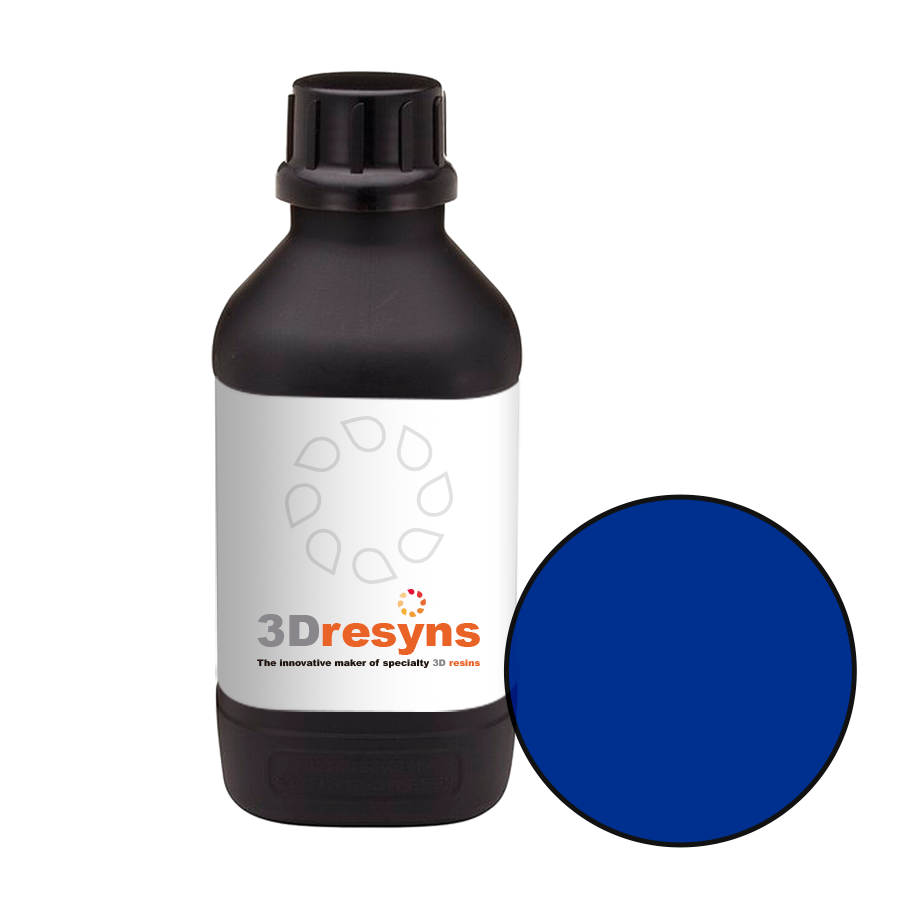

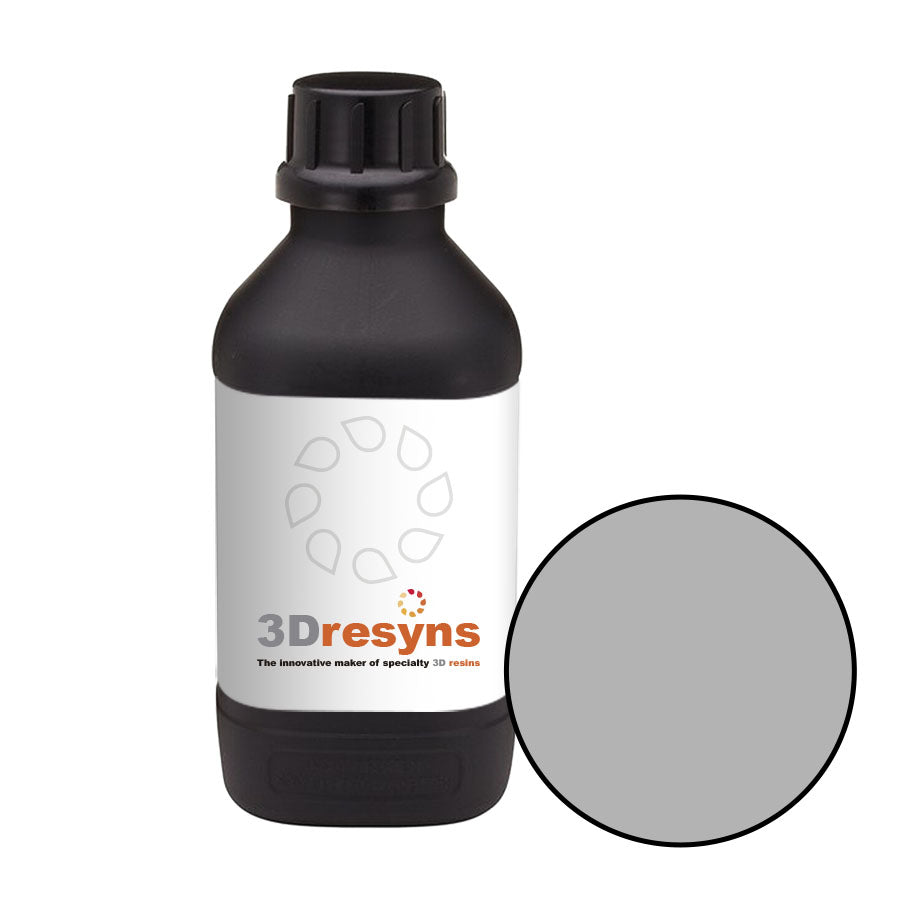

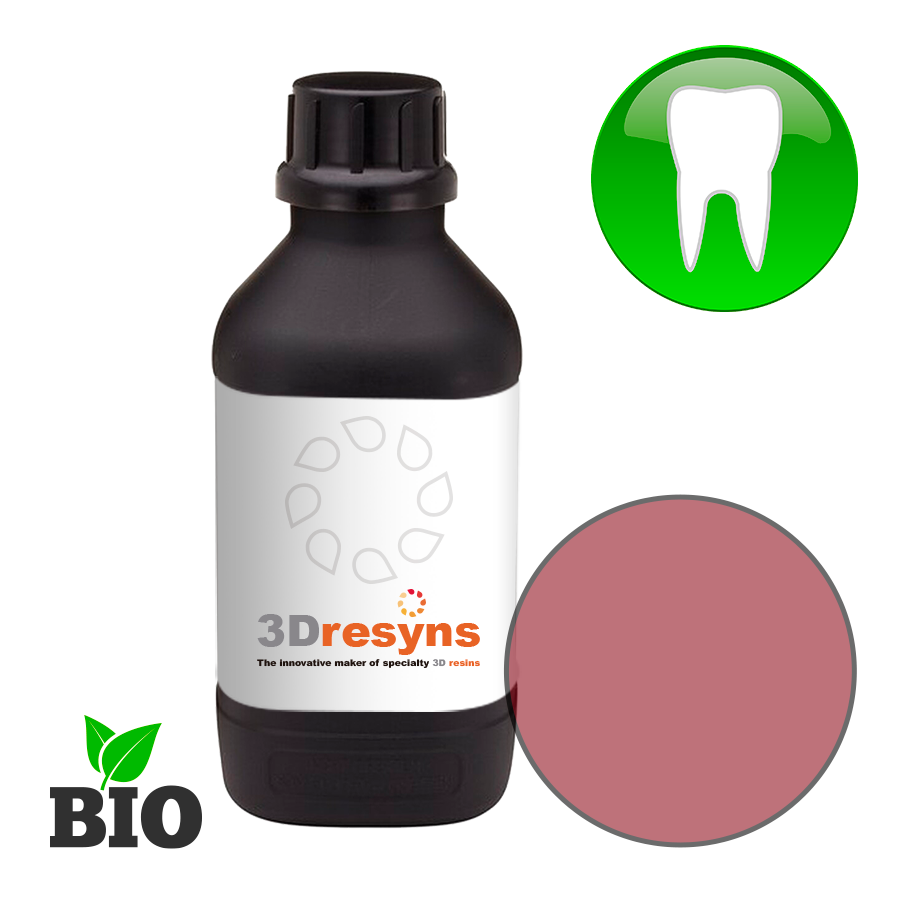

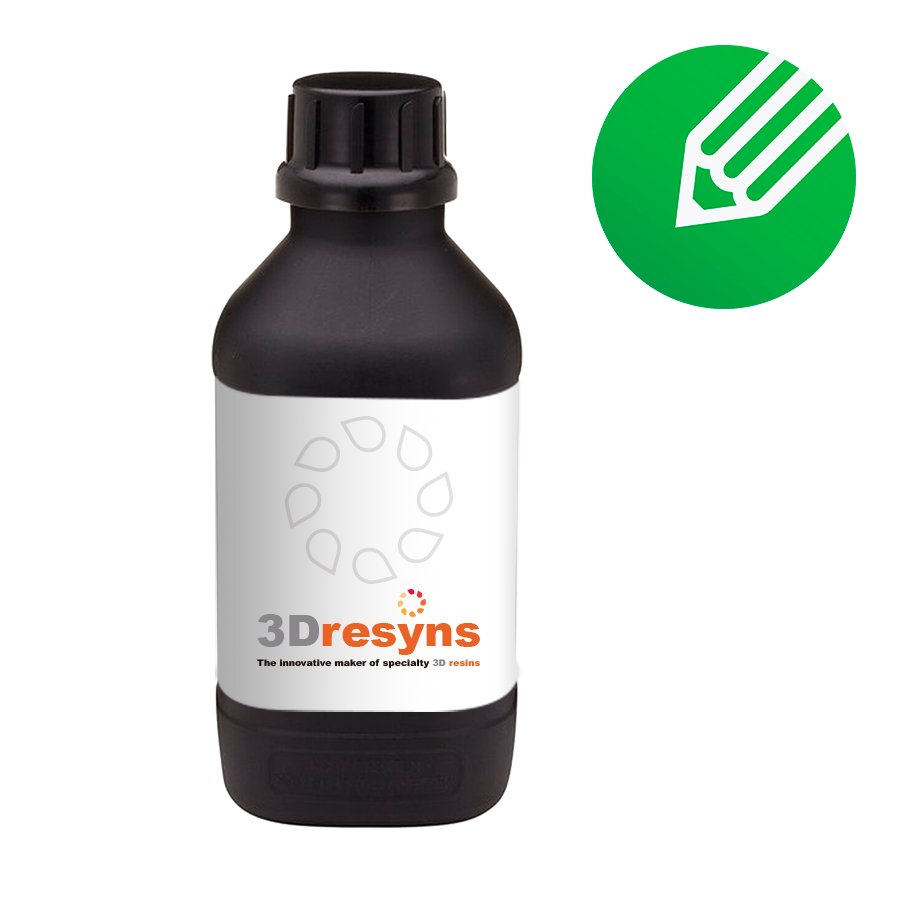

3Dresyn CD Pro Functional Prototyping Resin

3Dresyn CD Pro is a Conceptual Design 3D printing resin developed for fast, reliable and cost-effective professional proof-of-concept and model fabrication, offering increased mechanical strength compared to standard CD.

Designed for use in SLA, DLP and LCD systems for professional prototyping workflows requiring improved structural performance.

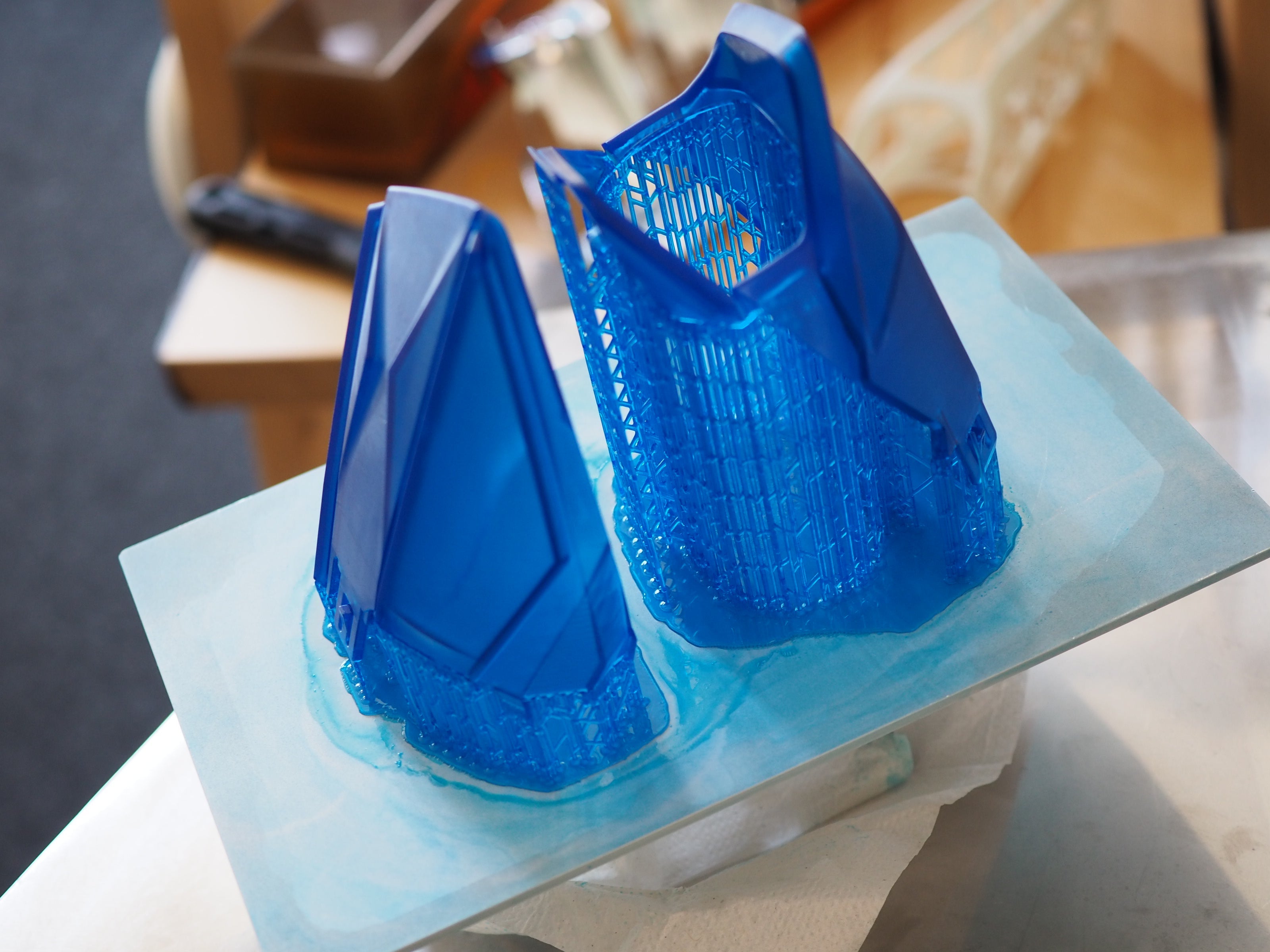

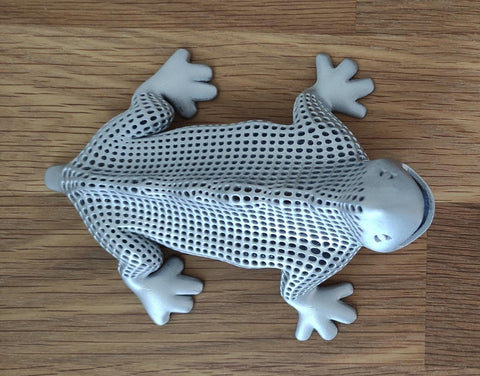

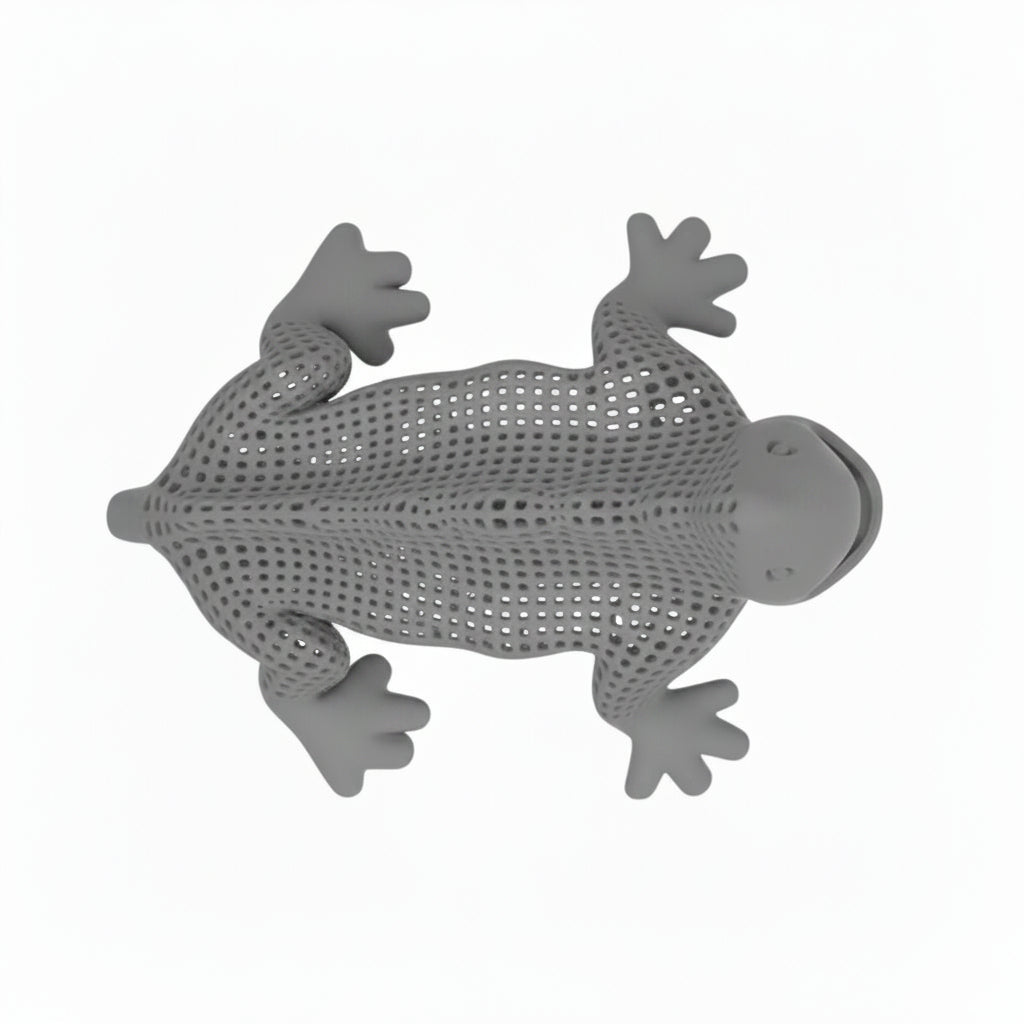

• Conceptual models and prototypes
• Functional validation parts

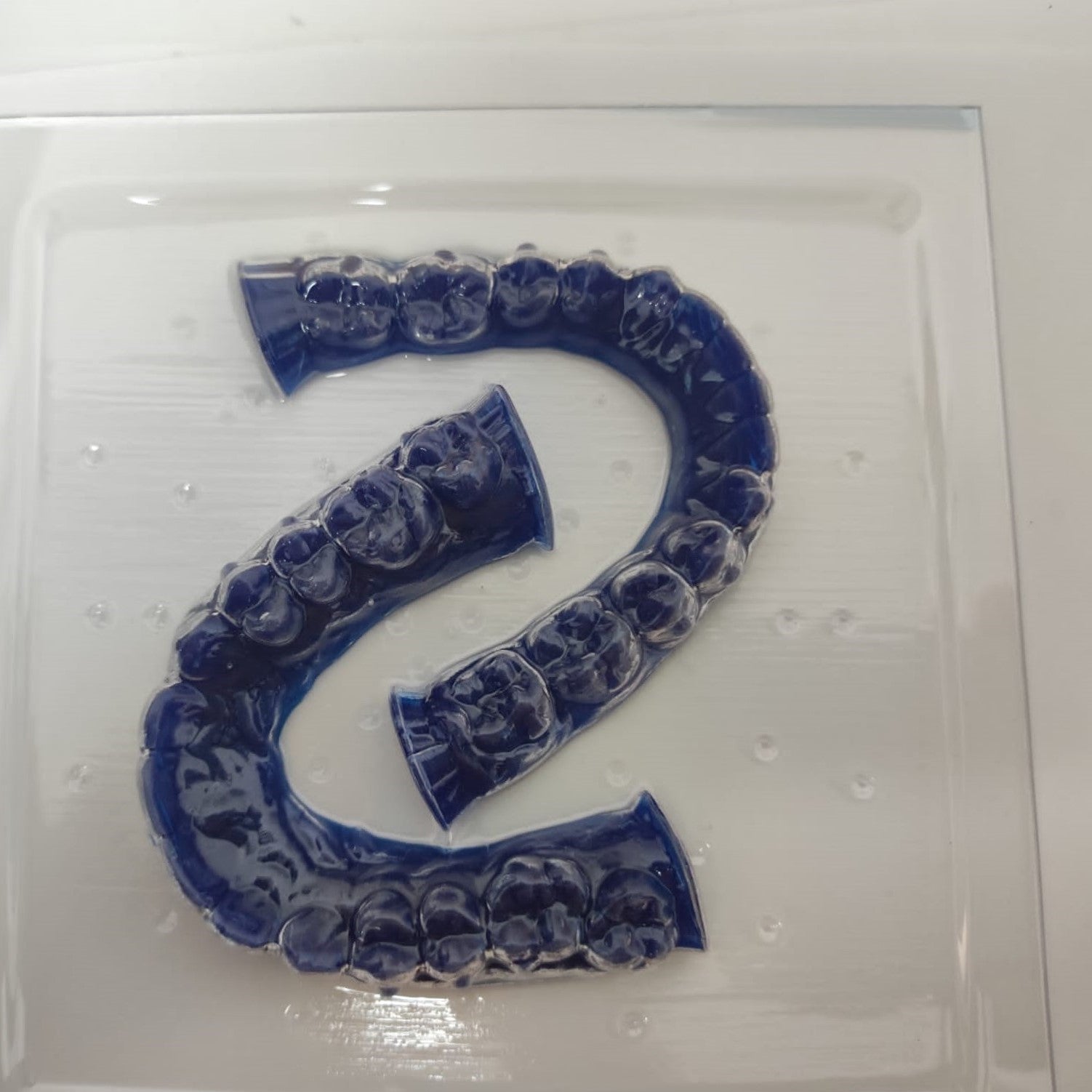

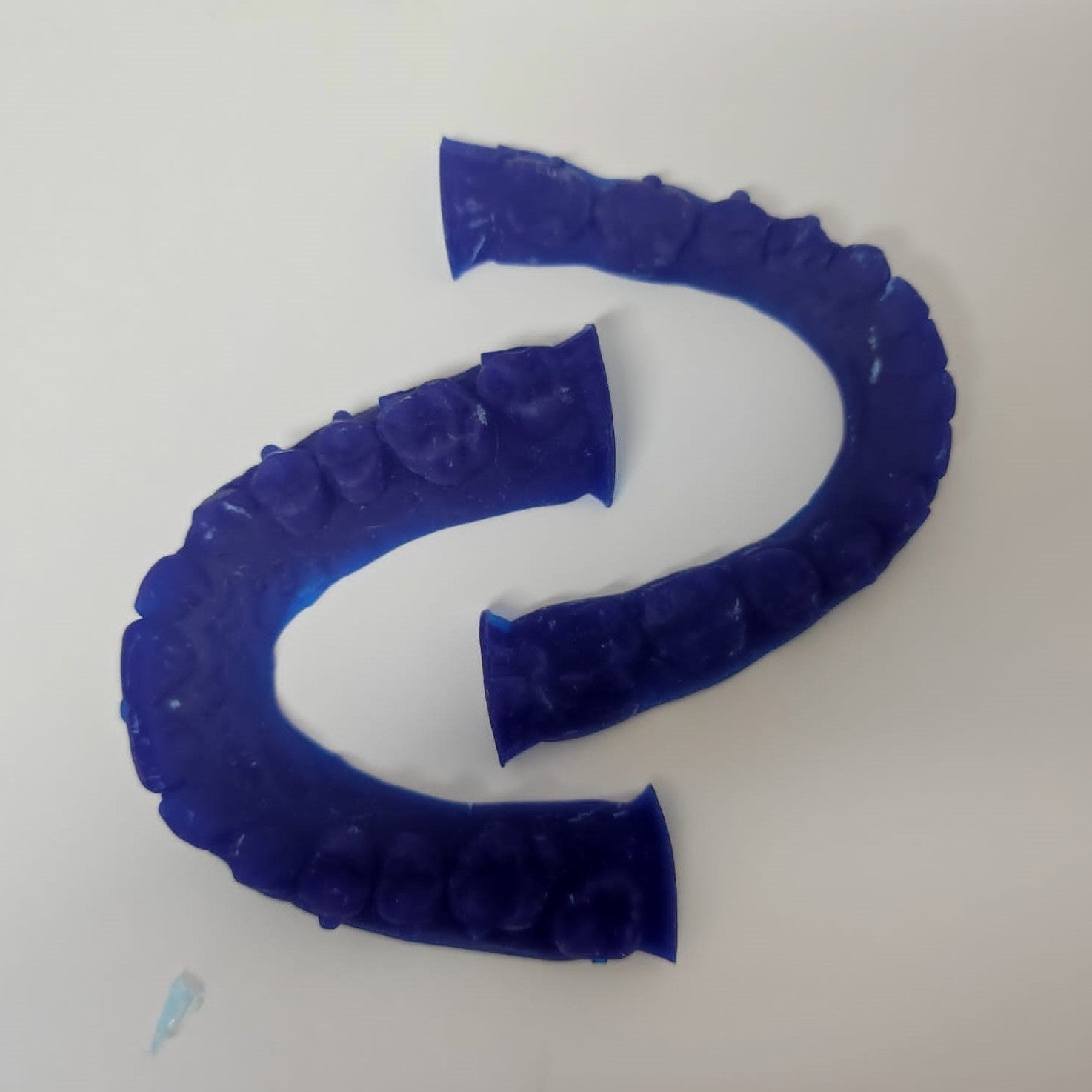

• Dental thermoforming models (indirect use)

• Tensile strength: <50 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <50 MPa (ISO 178)
• Young’s modulus: 1400–1800 MPa (ISO 527)
• Elongation at break: <5% (ISO 527)
• Shore hardness: D75 (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Viscosity: optimized within the processing range required for the intended printing process and application

• Higher rigidity compared to 3Dresyn CD
• Improved dimensional stability
• Suitable for functional validation workflows
• Fast printing performance

• Printing technologies: SLA, DLP and LCD
• Fast curing: <5–7 seconds per layer
• Low-medium viscosity
• Compatible with most commercial systems
• Organo-tin free

Material properties depend on processing conditions and post-curing parameters.

This material is not intended for medical or biocompatible applications.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
