Otoplastics 3Dresyn OTO-UHF – Ultra-Hard and Flexible Resin

3Dresyn OTO-UHF is an advanced photopolymer engineered for the fabrication of durable ear shells, tips and otoplastic components requiring a balance between rigidity and flexibility.

The material combines high hardness with controlled flexibility, enabling improved comfort, resistance to fracture and long-term durability in demanding audiology applications.

The formulation is based on an Ultra-Hard and Flexible (UHF) architecture, supporting reliable mechanical performance under cyclic loading and thin geometries.

It is compatible with a wide range of SLA, DLP and LCD systems used in professional audiology and dental laboratories.

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing for audiology and otoplastics workflows.

Final suitability of printed parts must be validated by the user according to the specific application, processing conditions and applicable regulatory requirements.

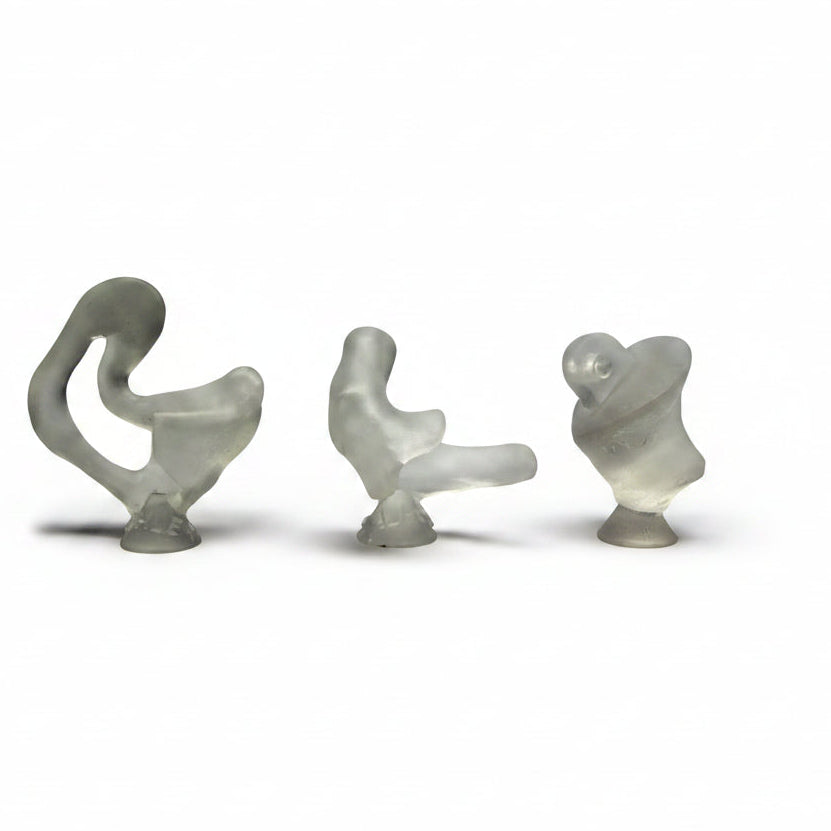

• Ear shells and hearing aid housings
• Custom ear tips and inserts
• Flexible-rigid otoplastic components
• Wearable in-ear devices requiring comfort and durability

• Tensile strength: < 40 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: < 75 MPa (ISO 178)
• Young’s modulus: < 2000 MPa (ISO 527)
• Elongation at break: < 40 % (ISO 527)
• Impact resistance, Notched Izod: < 38 J/m (ISO 180:2023)
• Shore hardness: D80 ± 2 (ISO 868)

• Density: 1.0-1.2 g/cm³ (ISO 1675)
• Water absorption: < 0.05 % (24 h at 23°C) (ISO 62)
• Printing shrinkage: no measurable dimensional shrinkage after calibration under validated processing conditions
• Resolution capability: very high (process-dependent)
• Dimensional stability: high
• Viscosity: < 2000 mPas at 23°C ± 2°C (ISO 3219)
• Low viscosity enabling stable recoating and processing

• Stable performance under typical operating conditions for otoplastics applications

• Combination of rigidity and flexibility for improved comfort
• Enhanced resistance to cracking and fracture
• Suitable for thin-walled and complex geometries
• High durability under repeated mechanical stress
• Stable performance in wearable applications

• Flow and recoating behaviour: optimized for reliable printing performance

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• Compatible with most commercial and professional systems when properly calibrated
• Very high resolution capability for fine details
• Follow 3Dresyns IFU for exposure, washing and post-curing

• Optimize exposure parameters to balance flexibility and rigidity
• Validate workflow depending on geometry and thickness

• Biocompatibility-related testing may be performed under controlled laboratory conditions
• Evaluation frameworks may include ISO 10993 methodologies
• Manufacturing aligned with ISO 13485 quality management systems
• Organo-tin free formulation
• Final biological performance depends on validated processing workflow

Material properties are measured on printed and post-processed specimens and may vary depending on printer type, printing parameters, build orientation, post-curing conditions and workflow validation. Reported values are indicative and provided for reference only.

• Balanced ultra-hard and flexible behavior
• Improved comfort and durability in wearable devices
• High dimensional stability and low shrinkage
• Very high resolution capability
• Compatible with SLA/DLP/LCD systems

This material is supplied as a professional manufacturing material for audiology and otoplastics workflows and is not marketed as a finished medical device. The regulatory classification, conformity assessment and validation of any final device manufactured using this material remain the sole responsibility of the legal manufacturer in accordance with applicable regulations.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
