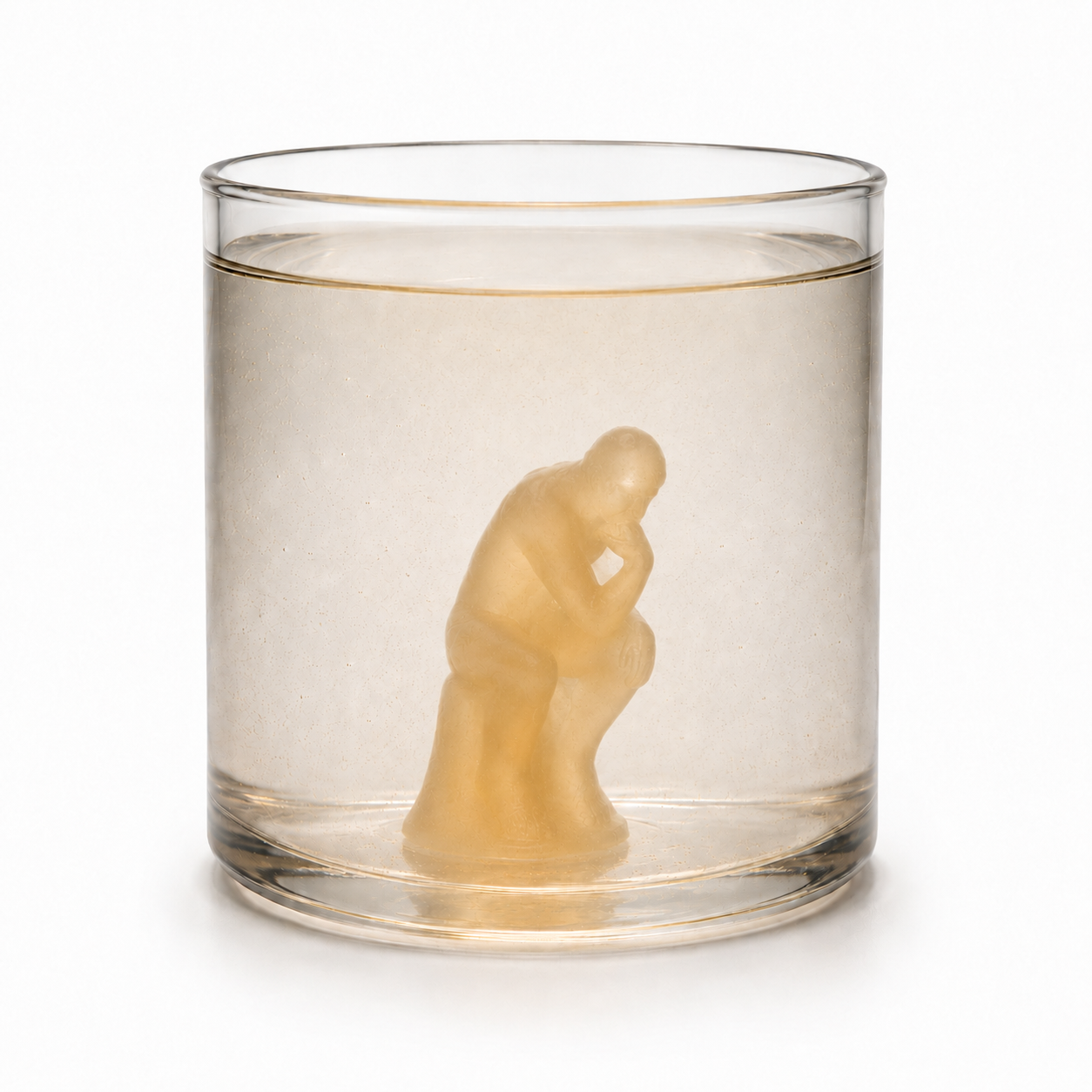

3Dresyn VAM HFA90 Bio, Biocompatible hard & flexible resin with Shore A90 printable by VAM 3D printers

3Dresyn VAM HFA90 Bio is a hard and flexible biocompatible monomer free photopolymer for VAM 3D printers.

This material is designed to be hard and flexible without breaking at low thickness and rigid with superior shattering resistance at high thickness, providing properties similar to hard and flexible rubber.

Designed for use in VAM 3D printers for fabrication of hard and flexible, shatter resistant parts requiring very high resolution and very low shrinkage.

• Hard and flexible printed parts
• Rigid parts with superior shattering resistance at high thickness
• VAM printed parts with properties similar to hard and flexible rubber

• Tensile strength: <20 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <20 MPa (ISO 178)
• Young’s modulus: <100 MPa (ISO 527)
• Elongation at break: <100% (ISO 527)
• Notched Izod: >90 J/m (ISO 180)
• Shore hardness: A90 (ISO 868)

• Density: 1.0-1.2 g/cc at 25ºC (ISO 1675)
• Printing shrinkage: no measurable dimensional shrinkage after calibration under validated processing conditions
• Viscosity: <60.000 mPas at 23°C ± 2°C (ISO 3219)

• Refractive index: 1.47-1.49 (ISO 489)

• Hard and flexible without breaking at low thickness
• Rigid with superior shattering resistance at high thickness
• Ultra non yellowing
• High impact and shattering resistance
• Properties similar to hard and flexible rubber
• Durable
• Very high resolution

• High viscous resin with low flow at room temperature
• Printable by VAM 3D printers
• Addition of a suitable photo accelerant and resolution-er system is required for printing in specific VAM printers


• Monomer free
• Bio and synthetic resin source
• Ultra low organo-tin content

Final flexibility, shattering resistance, printability and mechanical performance must be validated by the user according to the intended application, thickness, printer configuration and processing conditions.

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
