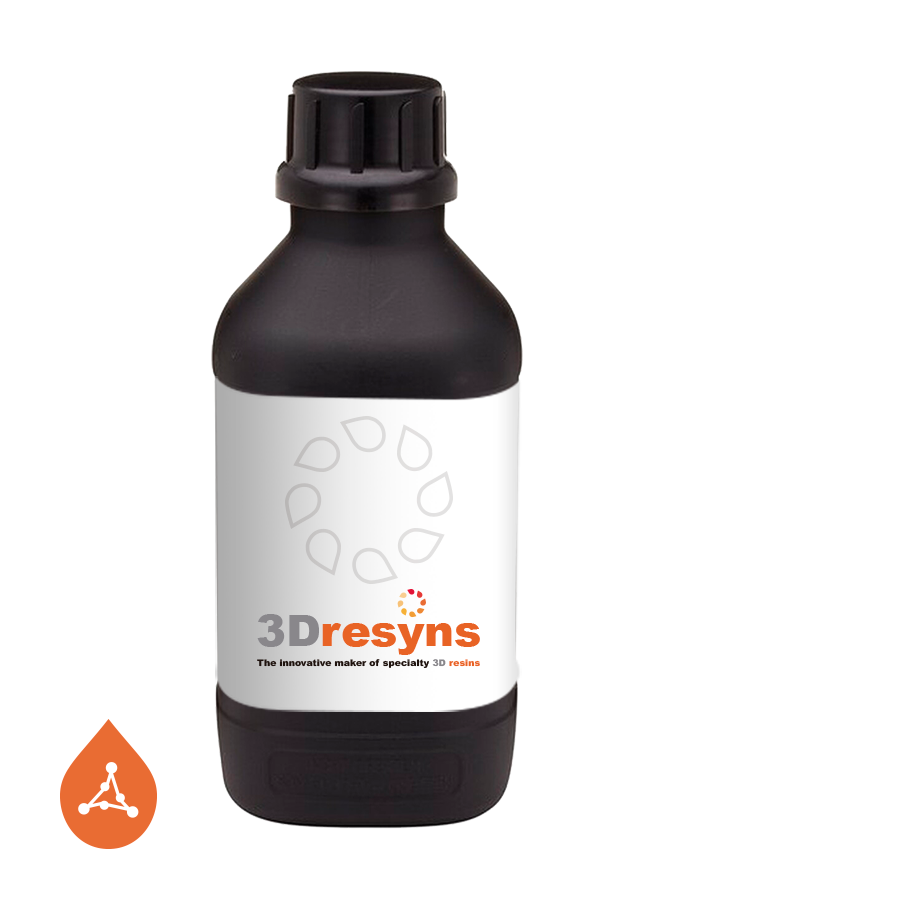

3Dresyn CR UHT Chemical Resistant Ultra Hard Resin (Acids & mild Alkalis)

3Dresyn CR UHT is an ultra hard and tough chemically resistant photopolymer designed for SLA, DLP & LCD 3D printing.

This synthetic thermoset crosslinked network material is engineered for excellent chemical resistance to polar and non polar chemicals, including most strong chemicals such as strong alkalis, acids, oxidizing and reducing agents. It provides higher chemical resistance but more brittle behavior than 3Dresyn CR UT.

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within professional and industrial environments requiring excellent chemical resistance, high rigidity, high temperature resistance and dimensional stability.

• Chemically resistant technical components
• High temperature resistant rigid parts
• Dimensionally stable functional parts
• Durable printed parts exposed to aggressive chemical environments

• Tensile strength: >40 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: >40 MPa (ISO 178)
• Young’s modulus: >3000 MPa (ISO 527)
• Elongation at break: <2% (ISO 527)
• Notched Izod impact strength: 20-25 J/m (ASTM D256 / ISO 180)
• Shore hardness: (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Printing shrinkage: no measurable dimensional shrinkage after calibration under validated processing conditions
• Viscosity: optimized within the processing range required for the intended printing process and application

• Heat deflection temperature: >220ºC @0.45 MPa (ISO 75)

• Excellent chemical resistance to polar (hydrophilic) and non polar (hydrophobic) chemicals, including most strong chemicals, such as strong acids, mild alkalis, oxidizing and reducing agents
• Higher chemical resistance but more brittle than 3Dresyn CR UT
• Ultra hard and tough
• Synthetic thermoset crosslinked network material
• High resolution
• Very high rigidity
• High impact and shattering resistance
• Non deformable non brittle
• Excellent dimensional stability
• Durable

• Acetic acid (5%): <0.1%
• Acetone: <2%
• Bleach (5% NaOCl): <0.1%
• Butyl acetate: <0.1%
• Diesel fuel: <0.1%
• Diethyl glycol monomethyl ether: <0.1%
• Hydraulic oil: <0.1%
• Hydrogen peroxide (3%): <0.1%
• Isooctane (aka gasoline): <0.1%
• Isopropyl alcohol: <0.1%
• Mineral oil (light): <0.1%
• Mineral oil (heavy): <0.1%
• Salt water (3.5% NaCl): <0.1%
• Sodium hydroxide (0.0001M NaOH: pH=10): <0.1%
• Strong acid (1M HCl hydrochloric acid: pH=0): <0.1%
• Tripropylene glycol monomethyl ether: <0.1%
• Water: <0.01%
• Xylene: <0.1%

*Weight increase (%) after 24 hour exposure to solvent (ISO 175).

• 3Dresyn CR UHT has been studied in the article: DRGquant: A new modular AI-based pipeline for 3D analysis of the DRG, published in the Journal of Neuroscience Methods

• Printable by most commercial and professional SLA, DLP & LCD 3D printers
• Increased durability of the resin tank

• Organo-tin free

Chemical resistance, dimensional stability, thermal resistance and final mechanical performance depend on part design, printing parameters, post-curing conditions, exposure time, chemical environment and full workflow implementation. Final suitability must be validated by the user for the intended application.

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

For chemical-resistant engineering applications, compare related resin routes when toughness, temperature exposure or chemical environment requirements differ.

• Engineering & Functional 3D Resins
• 3Dresyn CR UT Chemical Resistant Ultra Tough
• 3Dresyn HeatChemRes HCR1

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.

Access the 3Dresyns® Technical Resources (IFU, calibration, CRT, post-processing and troubleshooting)
