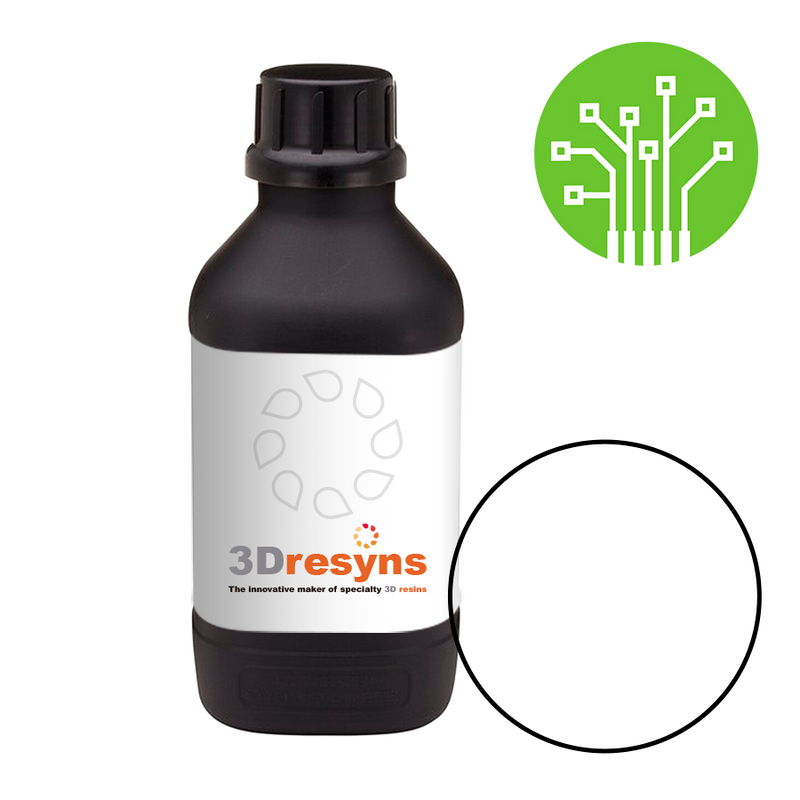

Microfluidic 3Dresyn MF RLV1 Clear rigid with low viscosity

Microfluidic 3Dresyn® MF RLV1 Clear is a low viscosity rigid photopolymer specifically engineered for microfluidic applications, enabling efficient microchannel clearing while maintaining good mechanical stability and chemical resistance for functional microdevices.

Designed for use in SLA, DLP, LCD and advanced 3D lithography systems within controlled professional and research environments. Suitable for fabrication of microfluidic devices requiring a balance between low viscosity, rigidity and high-resolution feature definition.

• Microfluidic devices and lab-on-chip systems
• Organ-on-chip platforms
• Microreactors and analytical microdevices
• High precision microchannel structures
• Vacuum-compatible microfabricated components

• Tensile strength: <30 MPa (ISO 527)
• Flexural strength: <30 MPa (ISO 178)
• Young’s modulus: <2000 MPa (ISO 527)
• Elongation at yield: <10% (ISO 527)
• Shore hardness: D85 (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Viscosity: <100 mPas at 23°C ± 2°C (ISO 3219)
• Low viscosity (RLV) formulation for improved microchannel evacuation
• Low viscosity facilitates cleaning and evacuation of microchannels

• Heat deflection temperature (HDT): >130 °C @ 0.45 MPa (ISO 75)

• Rigid material behavior with balanced mechanical performance
• Designed for microfluidic (“MF”) applications and microchannel fabrication
• High resolution with low light bleeding
• Precision down to ~10 µm (SLA/DLP/LCD) and up to ~100 nm (3D lithography)
• Chemically inert and hydrophobic (ULWA grade)
• Very low water absorption
• VOC-free formulation suitable for vacuum environments
• Low extractables and leachables for reduced cross-contamination risk
• Biocompatible-grade formulation
• Low tendency to gel beyond specification limits
• Durable with low shrinkage
• Organo-tin free formulation

• Compatible with SLA, DLP, LCD and advanced 3D lithography systems
• Suitable for high-resolution exposure strategies with controlled curing depth
• Recommended for use in cleanroom or controlled laboratory environments
• Supports fabrication of complex internal geometries with high fidelity

Material performance depends on printer type, exposure conditions, geometry, cleaning protocols and post-processing. Microfluidic functionality, chemical compatibility and biological performance must be validated by the user for each specific application.

• Balanced low viscosity and rigidity for microfluidic fabrication
• Efficient microchannel cleaning and processing
• High thermal resistance above 130 °C
• High resolution down to micro and nano scale
• Chemically inert and hydrophobic (ULWA)
• VOC-free and suitable for vacuum environments
• Low extractables for reduced contamination risk
• Compatible with multiple high-resolution printing technologies

This material is supplied as a professional manufacturing material and is not marketed as a finished product. Final validation for microfluidic performance, biological interaction and application-specific requirements remains the responsibility of the user.
