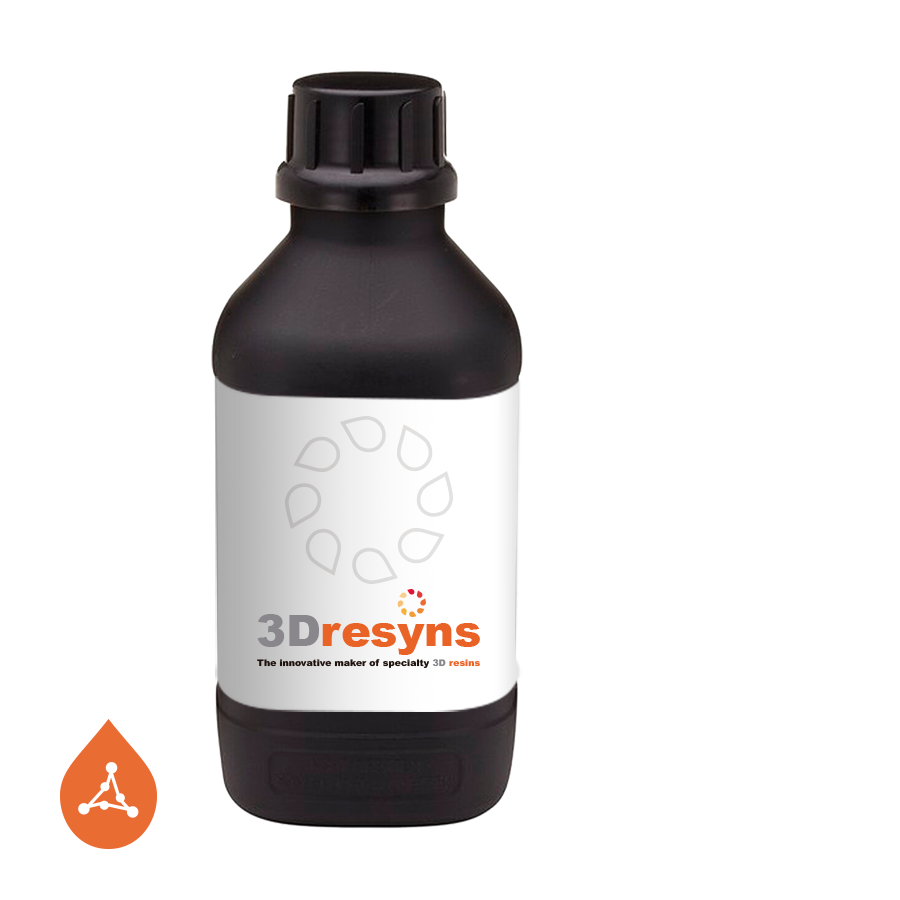

3Dresyn PEEK-like Polyetheretherketone-like Ultra-Tough Engineering Resin

3Dresyn® PEEK-like is a high-performance engineering photopolymer designed to deliver mechanical behavior comparable to high-performance thermoplastics such as PEEK. It provides very high flexural strength, high stiffness, impact resistance, and excellent chemical and thermal durability.

The material is available in HV (high performance) and LV (low viscosity) versions, enabling compatibility across a wide range of SLA, DLP and LCD systems.

Designed for functional engineering and biomedical applications requiring high mechanical performance, structural integrity and environmental resistance.

• Load-bearing engineering components
• Functional industrial parts, housings and fixtures
• Surgical tools and medical device components
• High-performance dental and biomedical structures
• Prototypes requiring thermoplastic-like mechanical behavior

• Tensile strength: >40 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: 120–140 MPa (ISO 178)
• Young’s modulus: 2500–3000 MPa (ISO 527)
• Elongation at break: <3% (ISO 527)
• Impact resistance: Notched Izod >30 J/m (ISO 180)
• Shore hardness: D85–90 (ISO 868)

• Density: 1.0–1.1 g/cm³ (ISO 1675)
• Water absorption: <0.1% (24 h @ 23 °C, ISO 62)
• Appearance: clear light orange (unless pigmented)
• Viscosity of HV version: <9000 mPas at 23°C ± 2°C (ISO 3219)
• Viscosity of LV version: <5000 mPas at 23°C ± 2°C (ISO 3219)

• Heat deflection temperature (HDT): >120 °C @ 0.45 MPa; >110 °C @ 1.8 MPa (ISO 75)

• PEEK-like stiffness and mechanical resistance
• High flexural strength and load-bearing capability
• Excellent chemical resistance across a wide range of solvents
• High thermal stability for demanding environments
• Durable and dimensionally stable under stress

Excellent resistance to a wide range of chemicals including acids, bases, hydrocarbons, oils and solvents. Typical weight increase after 24h exposure is <0.5% in most tested media.

• 3Dresyn PEEK‑like vs. “Strongest” SLA 3D resins
• Technical Bulletin PEEK-like 3D Resin — Ultra High Toughness and Flexural Strength 120–140 MPa

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• HV version: maximum mechanical performance
• LV version: improved flow and easier processing
• Compatible with open-parameter systems
• Optimized using 3Dresyns IFU and calibration workflow

• Monomer-Free (MF) platform
• Biocompatibility evaluated according to ISO 10993
• Manufacturing aligned with ISO 13485

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure conditions, layer thickness, build orientation and post-processing workflow.

This material is supplied as a professional engineering material. Final part performance and suitability must be validated by the user according to the intended application and regulatory requirements.

For PEEK-like engineering applications, compare adjacent engineering resin families when the required balance of toughness, rigidity, impact behaviour or thermal performance changes.

• Engineering & Functional 3D Resins
• 3Dresyn Nylon-like
• 3Dresyn PC-like

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.

Access the 3Dresyns® Technical Resources (IFU, calibration, CRT, post-processing and troubleshooting)
