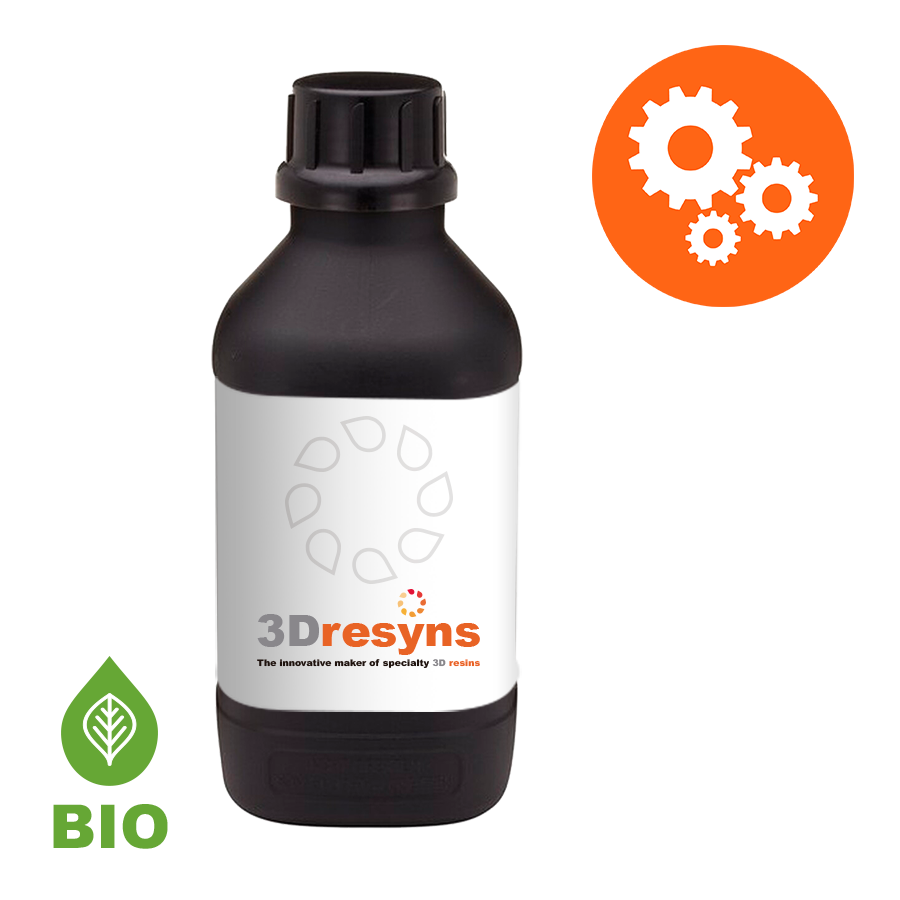

3Dresyn Nylon-like Polyamide Tough Engineering Resin

3Dresyn® Nylon-like is a high-performance photopolymer engineered to replicate the mechanical behaviour of polyamide (nylon), combining toughness, moderate flexibility and high impact resistance while eliminating the typical water absorption associated with conventional nylons. The material exhibits semi-rigid behaviour with pliability at low thicknesses and good shape recovery. It also provides excellent adhesion to a wide range of substrates and incorporates bio-based content from renewable sources. It is available in HV (higher mechanical performance) and LV (lower viscosity) versions for compatibility with SLA, DLP and LCD systems.

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing.
Final suitability of printed parts must be validated by the user according to the specific application, processing conditions and applicable regulatory requirements.

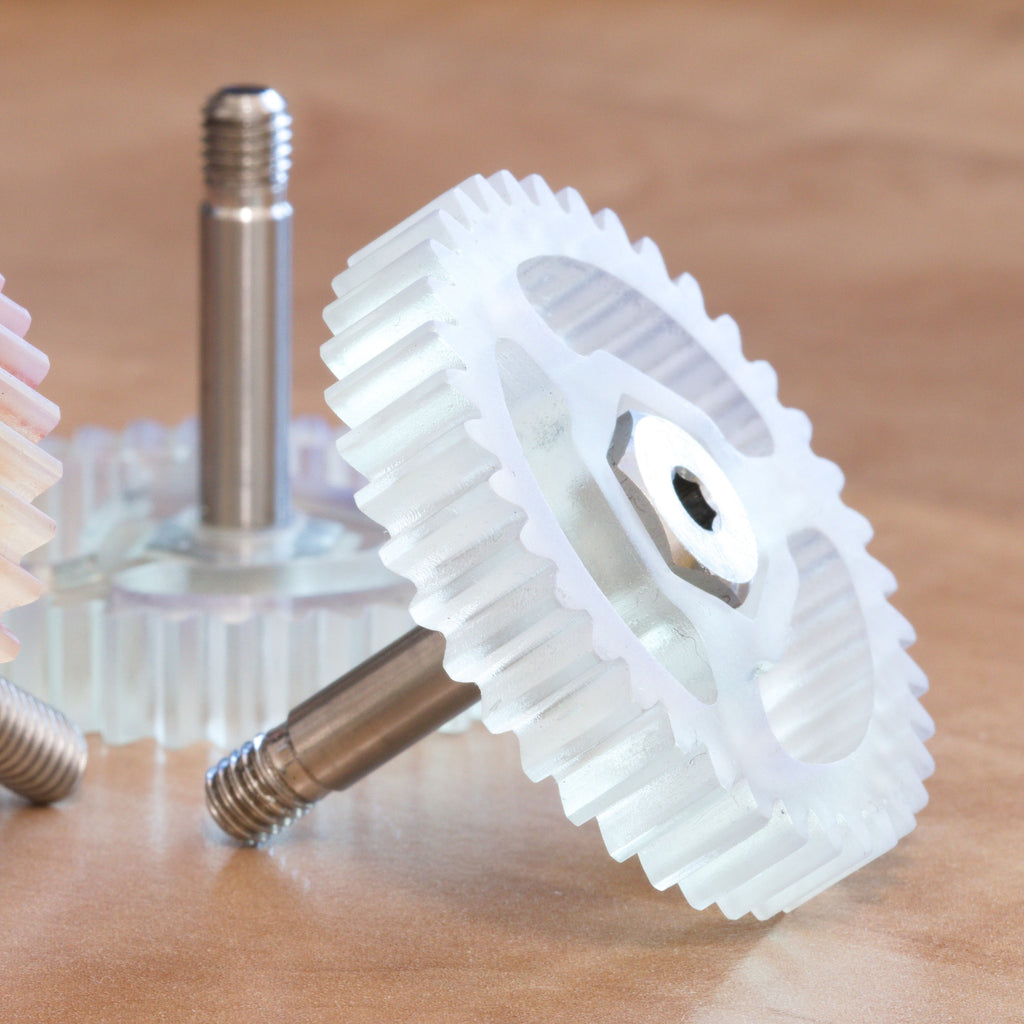

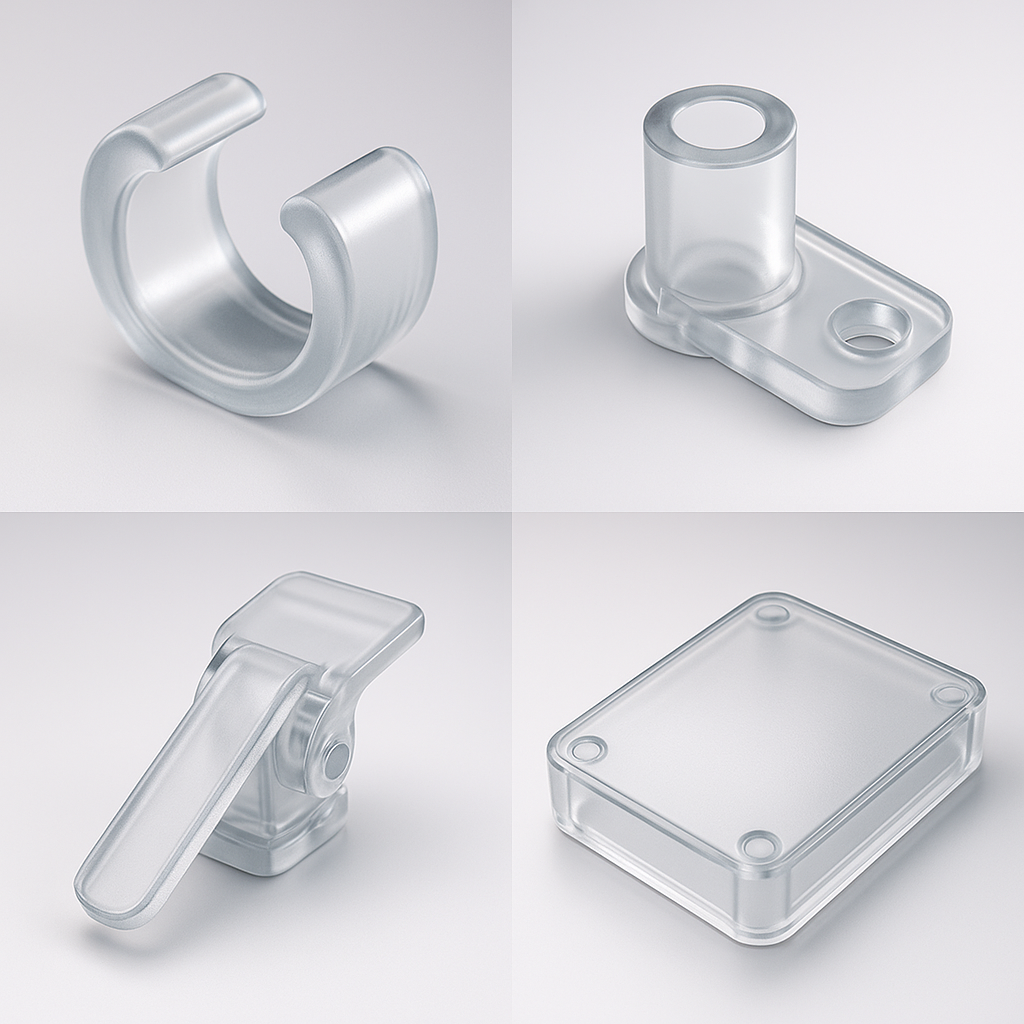

• Functional engineering parts requiring toughness and flexibility
• Snap-fit components and living hinges
• Wear-resistant parts and mechanical interfaces
• Adhesion-critical components on metals and plastics
• Biomedical and food-contact oriented applications (subject to validation)

• Tensile strength: <40 MPa (typical) (ISO 527-1 / ISO 527-2)
• Flexural strength (break): <40 MPa (typical) (ISO 178)
• Young’s modulus: <1200 MPa (typical) (ISO 527-1 / ISO 527-2)
• Elongation at break: <40% (typical) (ISO 527-1 / ISO 527-2)
• Impact resistance (Notched Izod): <80 J/m (typical) (ISO 180)
• Shore hardness: D70 (ISO 868)

• Density: ~1.0–1.1 g/cm³ (typical) (ISO 1675)
• Water absorption: ultra low (ULWA, hydrophobic behaviour) (ISO 62)
• Printing shrinkage: no measurable dimensional shrinkage after calibration under validated processing conditions
• Color: clear with slight tint unless color is added
• Bio-based content: >20% from renewable sources
• Adhesion: excellent adhesion to metals and plastics

• Glass transition temperature (Tg): >35 °C (typical) (ISO 11357-2)

• Refractive index (RI): 1.48–1.49 @ 20 °C / 589 nm (ISO 489)

3Dresyn Nylon-like vs. toughest SLA resins – mechanical resistance comparison →

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• Compatible with open-parameter vat photopolymerization systems
• LV (~<10,000 cP @ 25 °C): optimized for unheated printers or ambient temperatures below ~25 °C
• HV (~higher viscosity): optimized for heated systems and improved mechanical performance
• Follow 3Dresyns IFU for exposure, washing and post-curing to achieve target properties

• Biocompatible formulation platform
• Food-contact oriented formulation (subject to application-specific validation)
• Biocompatibility must be evaluated on the final printed and post-processed device according to ISO 10993
• Manufacturing aligned with ISO 13485 quality management systems
• Organo-tin free formulation

Material properties are measured on printed and post-processed specimens and may vary depending on the selected material version, printer type, printing parameters, build orientation, post-curing conditions and test specimen preparation. Reported values are indicative and provided for reference only.

• Nylon-like toughness with controlled flexibility
• Eliminates typical water absorption of conventional polyamides
• High impact resistance and durability
• Good flexibility at low thickness with shape recovery
• Excellent adhesion to metals and plastics
• Bio-based content from renewable sources
• Ultra low water absorption (ULWA) and hydrophobic behaviour
• Very low shrinkage and good dimensional stability
• Available in LV and HV versions for broader processing flexibility
• Open-system compatibility (385–405 nm) across SLA/DLP/LCD workflows

For Nylon-like engineering applications, compare adjacent tough engineering resin routes when stiffness, toughness or thermal-performance requirements change.

• Engineering & Functional 3D Resins
• 3Dresyn PET-like
• 3Dresyn PEEK-like

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.

Access the 3Dresyns® Technical Resources (IFU, calibration, CRT, post-processing and troubleshooting)
