Next Generation of 3D resins for printing functional materials
Our Next Generation SLA, DLP, LCD 3Dresyns for printing functional materials
- NextGen 3Dresyns with Shore D70-90 range are based on safe monomers and are biocompatible after proper postcuring and postprocessing
- this range of NextGen 3Dresyns exhibits slightly lower mechanical properties than its safer in liquid form monomer free counterparts Biotough 3Dresyns with Shore D
- NextGen grades are tough, reaching >80 MPa in flexural strength, and consequently are ideal for printing functional engineering and biomedical materials. They do not exhibit fragility as most commercial monomer based 3D resins
- NextGen 3Dresyns with Shore A10-80 range are based on strong irritant toxic monomers but are biocompatible after proper postcuring and postprocessing
- exhibit higher mechanical properties than their monomer free flexible counterparts Bioflex 3Dresyn MF with Shore A
- ideal if you need flexible resins with superior tensile and flexural strength, as well as increased tear and folding endurance and do not mind using strong irritant toxic monomer based 3D resins
- once postcured and postprocessed with the right protocols will meet the most demmanding biocompatibility specifications and testings
- if you are after safer resins as supplied, then explore our biocompatible "monomer free" Bioflex 3Dresyns MF, which are ultra safe for users, even in liquid form, since do not contain any irritant monomers: they have been designed to meet the highest safety and biocompatibility standards and are recommended for bio printing applications where biocompatibility and safety of the 3D resin in liquid form as supplied are more important than the final mechanical properties of the biomedical device.
The usage of NextGen 3Dresyns with Shore hardness A -despite their strong irritancy/toxicity in liquid form- is recommended for Biocompatible applications where superior mechanical properties are needed in comparison to Bioflex 3Dresyns, since their toxicity, skin and eye irritancy as supplied will dissapear -and their biocompatibility will increase significantly- after proper postcuring and cleansing with our detailed IFU and Cleansing products
Typical properties of our Next Generation 3Dresyns*
|
NG 3Dresyn |
Deflection Temperature (ºC) |
Shore hardness |
Flexural strength (MPa) |
% Elongation |
Young´s modulus (MPa) |
Tensile strength (MPa) |
|
c.290 |
D90 |
>40 |
<1 |
4000-5000 |
>50 |
|
|
>190 |
D90 |
>40 |
<2 |
3500-4000 |
>50 |
|
|
>140 |
D90 |
>40 |
<2.5 |
2700-3100 |
>50 |
|
|
>100 |
D90 |
>80 |
<3 |
2000-3000 |
>50 |
|
|
<100 |
D80 |
>50 |
<10 |
1000-2000 |
>40 |
|
|
40-80 |
D80 |
>40 |
<25 |
<1500 |
<25 |
|
|
<20 |
D80 |
>35 |
<40 |
<1000 |
<25 |
|
|
<20 |
D70 |
<25 |
<40 |
<500 |
<20 |
|
|
<10 |
D30 |
<10 |
>45 |
<20 |
<20 |
|
|
<10 |
A80 |
<10 |
>50 |
<20 |
<15 |
|
|
<0 |
A70 |
<10 |
>50 |
<10 |
<10 |
|
|
<0 |
A60 |
<10 |
>50 |
<10 |
<10 |
|
|
<0 |
A50 |
<5 |
>60 |
<10 |
<10 |
|
|
<0 |
A40 |
<5 |
>60 |
<10 |
<10 |
|
|
<0 |
A30 |
<5 |
>70 |
<5 |
<5 |
|
|
<0 |
A20 |
<3 |
>90 |
<3 |
<4 |
|
|
<0 |
A10 |
<2 |
>>100 |
<2 |
<2 |
*Note: properties can vary since depend on few variables such as light wavelength and power, printing settings, light postcuring settings, post processing, etc.
RELATIVE SHORE HARDNESS SCALE AND RIGIDITY IN DECREASING ORDER
Extra Hard & Rigid R grades at room and high temperature (100% biocompatible)
- NG 3Dresyn R290D90: Rigid up to 290C (Shore D90)
- High Deflection Temperature up to 290C, extra hard and rigid, minor unavoidable brittleness for its ultra rigidity even of small parts, medium impact/shattering resistance, biocompatible
- NG 3Dresyn R190D90: Rigid up to 190C (Shore D90)
- High Deflection Temperature up to 190C, extra hard and rigid, minor unavoidable brittleness for its rigidity, medium impact/shattering resistance, biocompatible

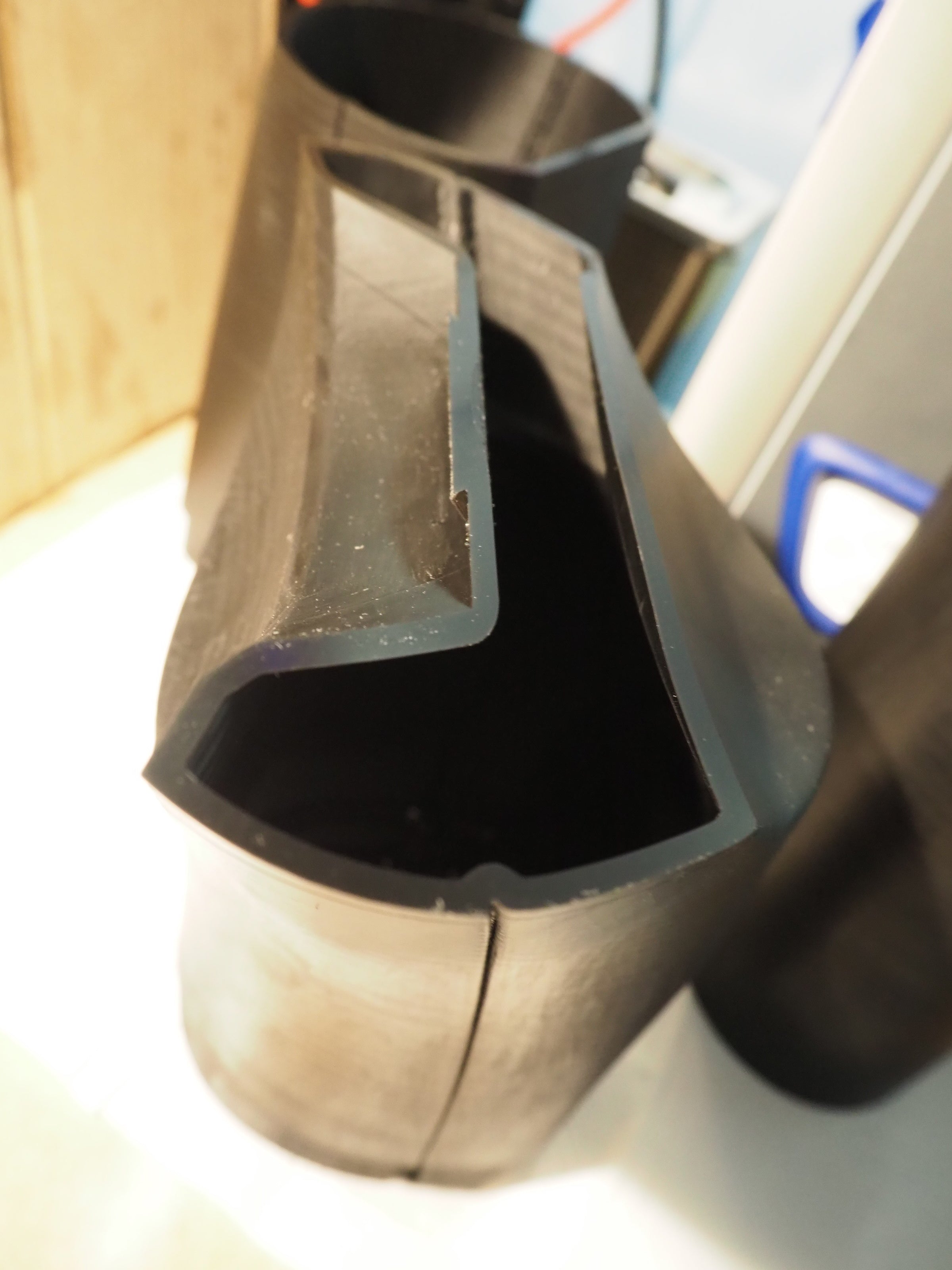

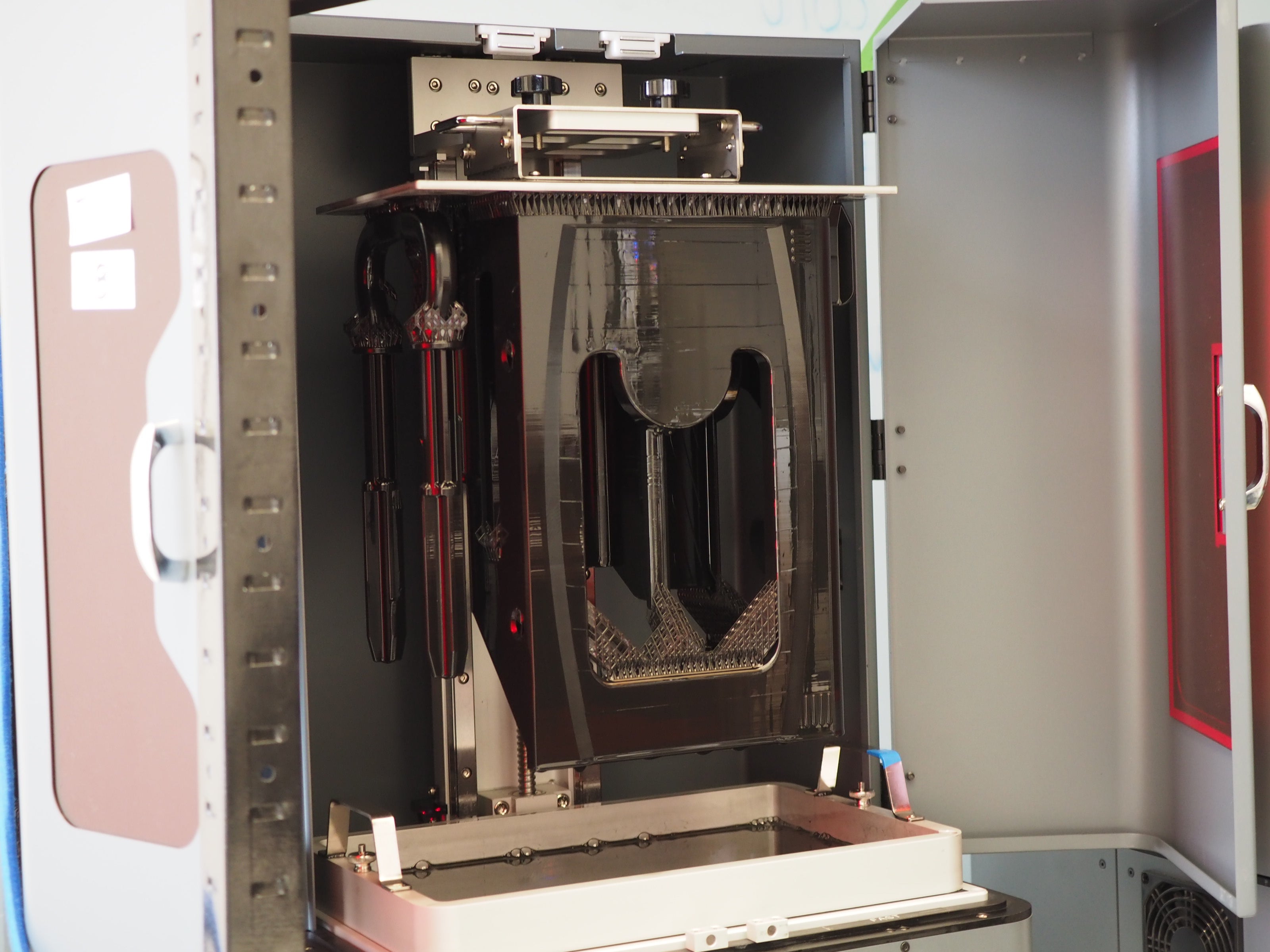

- NG 3Dresyn R140D90: Rigid up to 140C (Shore D90)
- High Deflection Temperature up to 140C, extra hard and rigid, minor unavoidable brittleness for its rigidity, medium impact/shattering resistance, biocompatible
Extra Hard & Tough T grades (100% biocompatible)

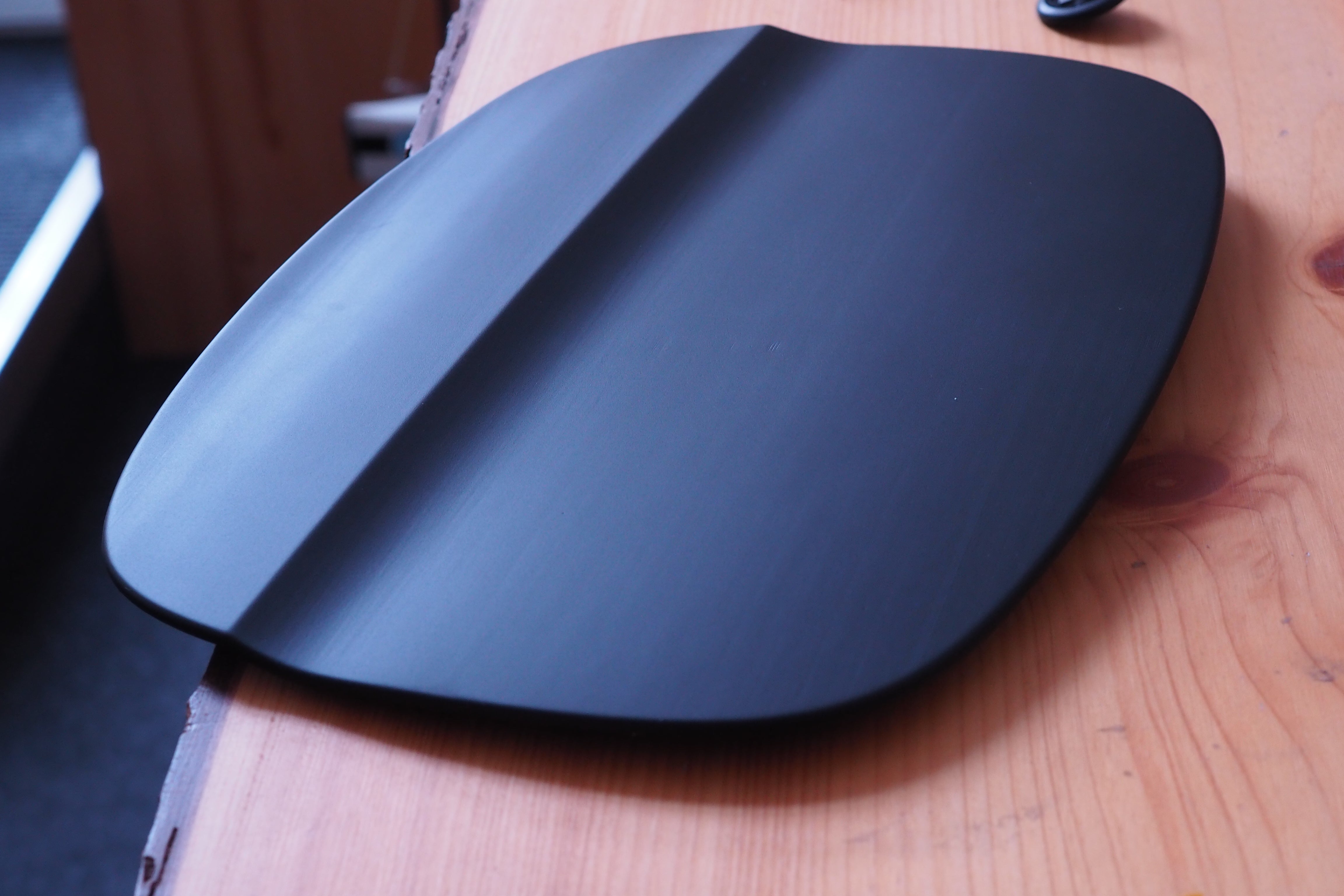

- NG 3Dresyn TD90: Tough (Shore D90)
- Tough, minor flexibility, minor brittleness, medium/good impact/shattering resistance, non yellowing (excellent light fastness), biocompatible
- NG 3Dresyn TD80: Tough (Shore D80)
- Tough, certain minor flexibility at small thickness, minor brittleness, medium/good impact/shattering resistance, non yellowing (excellent light fastness), biocompatible

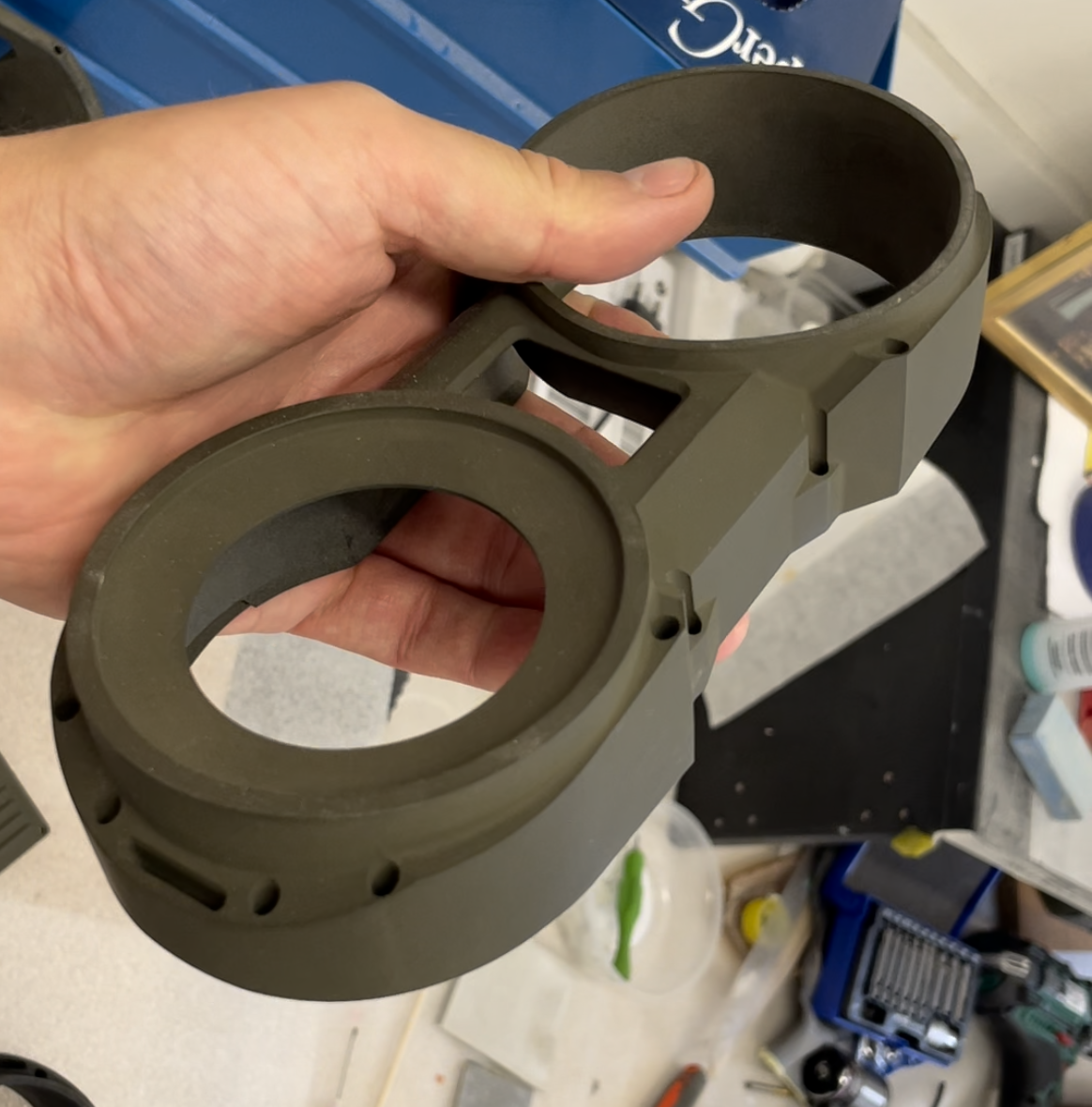

- NG 3Dresyn TD80/TFD80 50/50: Tough (Shore D80). 50/50 blend of TD80/TFD80
- Tough, certain flexibility, reduced brittleness vs TD80 but more rigid than TFD80, medium/good impact/shattering resistance, non yellowing (excellent light fastness), biocompatible
Tough & Foldable TF grades, from Extra Hard to medium Hard without any brittleness

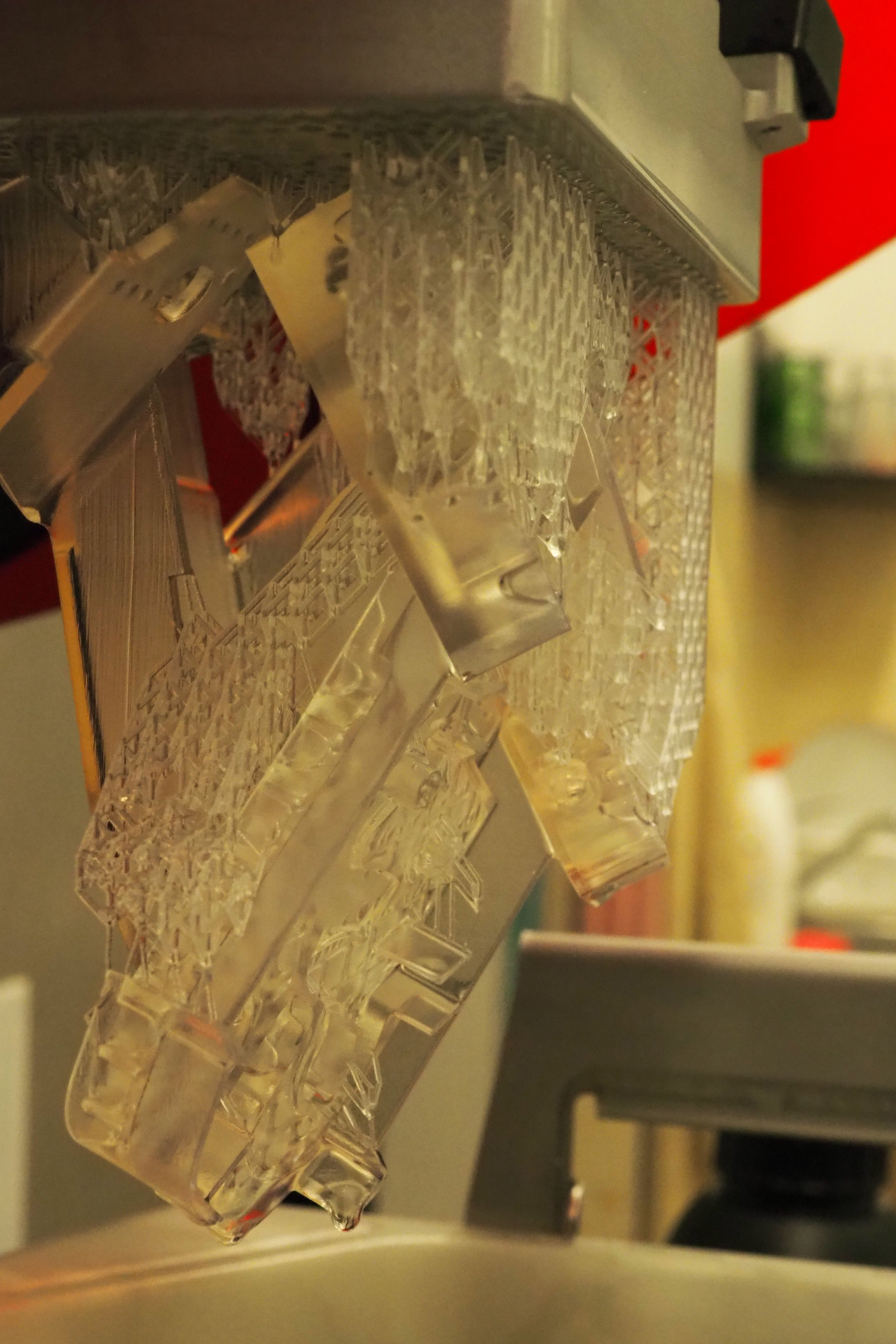

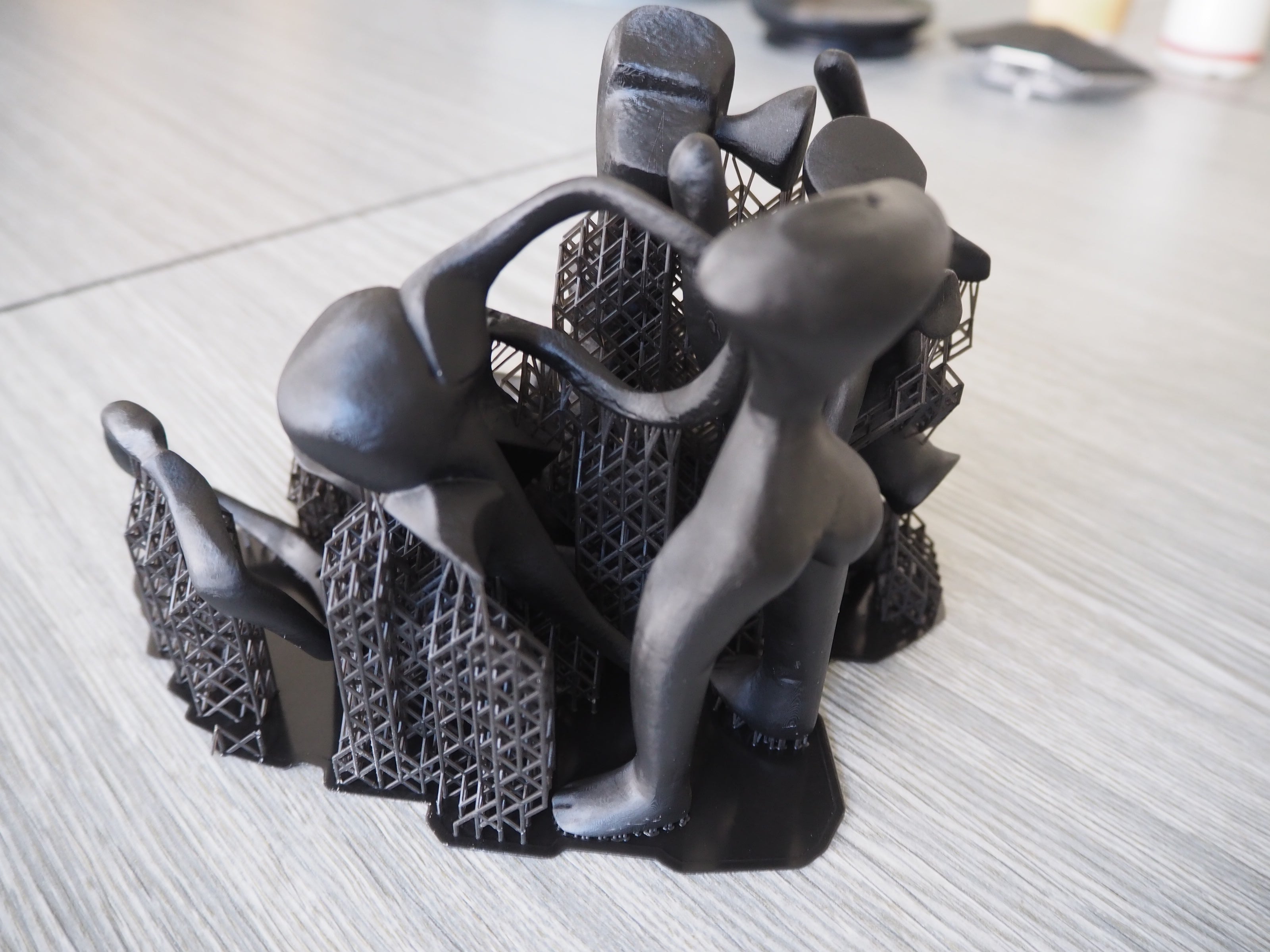

- NG 3Dresyn TFD80: Tough (non brittle) and Foldable without breaking (Shore D80)
- Superior hardness/toughness with some flexibility, non brittle, foldable at relatively small thickness, with unique/excellent impact/shattering resistance, biocompatible

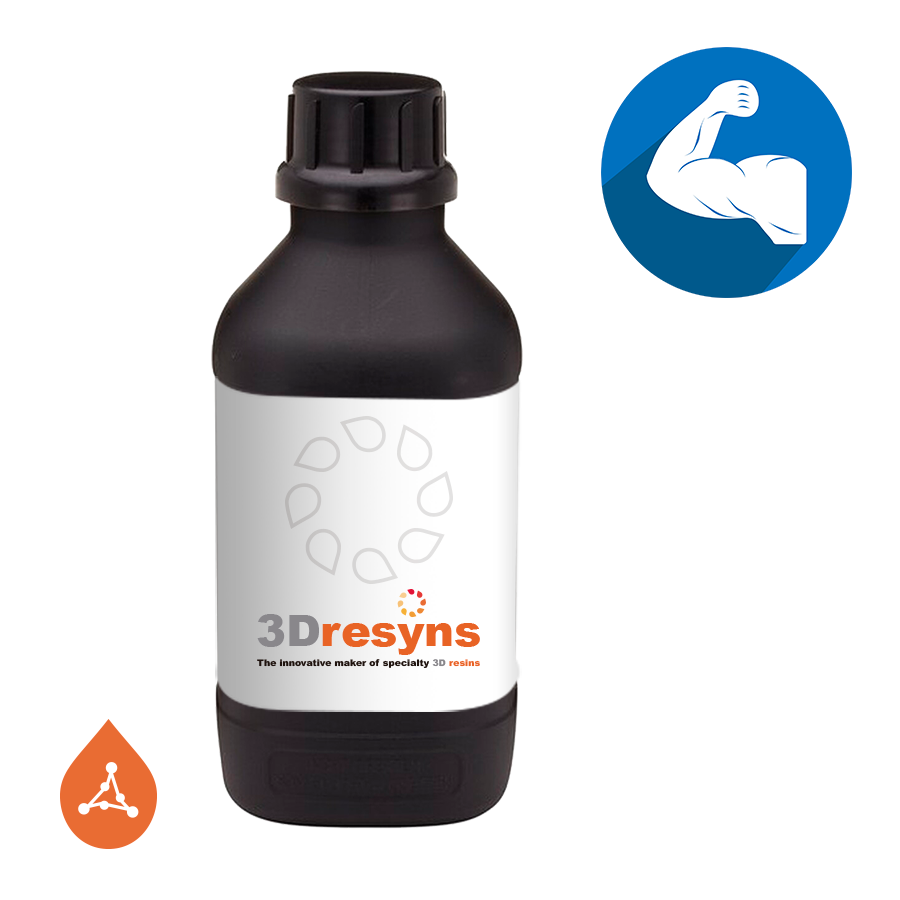

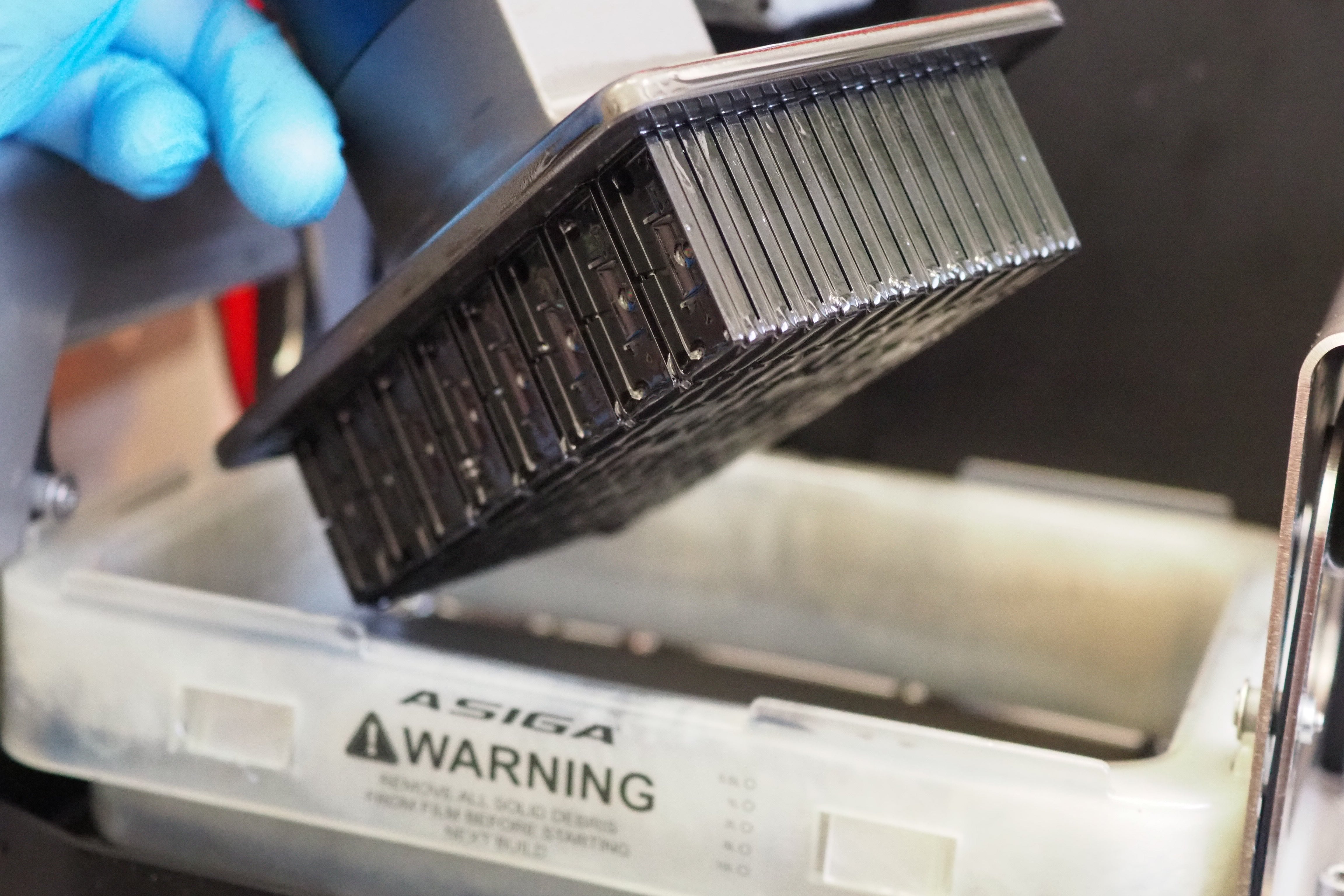

- NG 3Dresyn TFD70 Tough (non brittle) and Foldable without breaking (Shore D70)
- Superior hardness/toughness with some flexibility, non brittle, flexible and foldable at relatively small thickness, with unique/excellent impact/shattering resistance, biocompatible
- Superior toughness with some increased flexibility vs TFD70 & TFD80, non brittle, flexible and foldable, with unique/excellent impact/shattering resistance

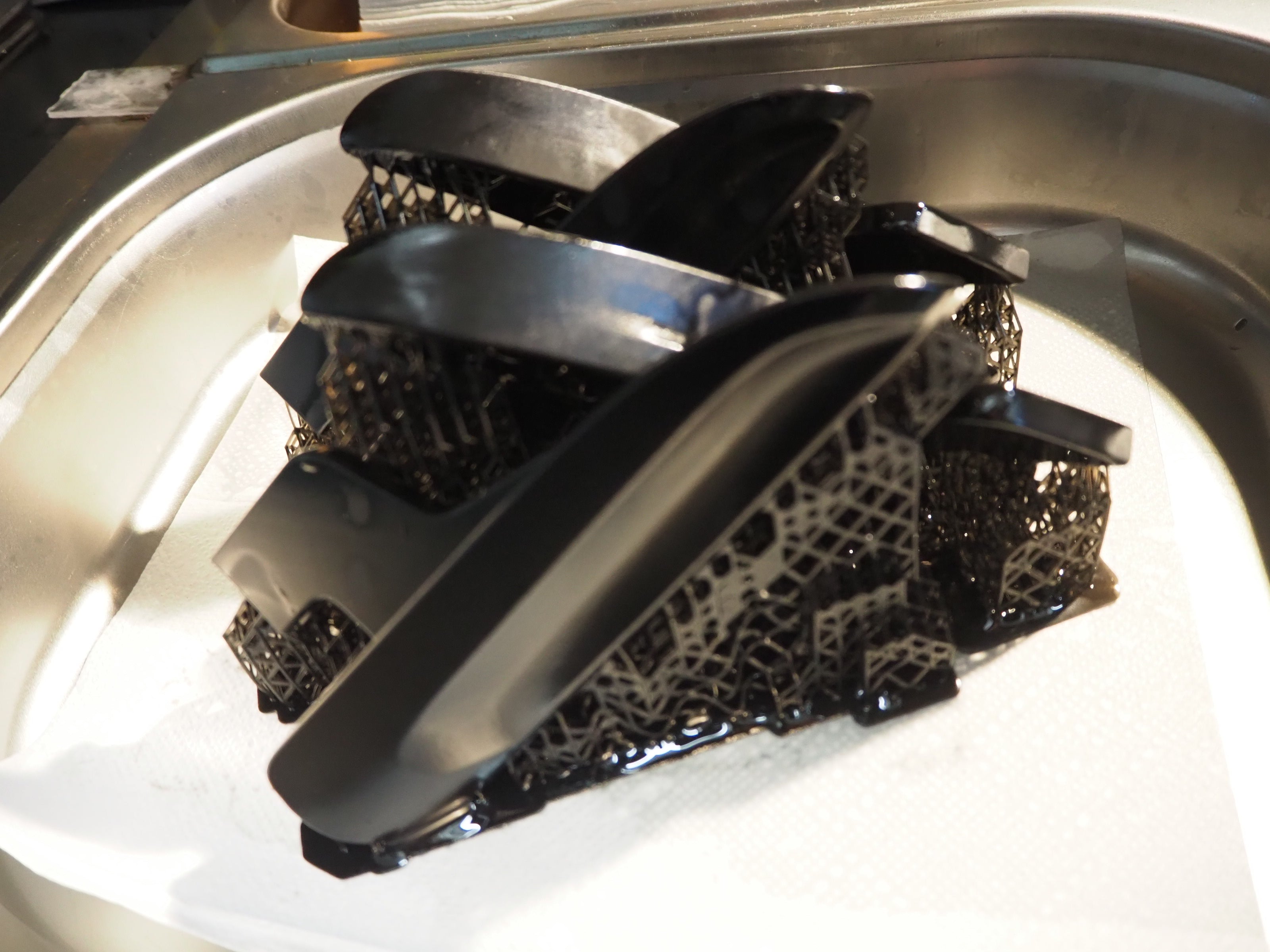

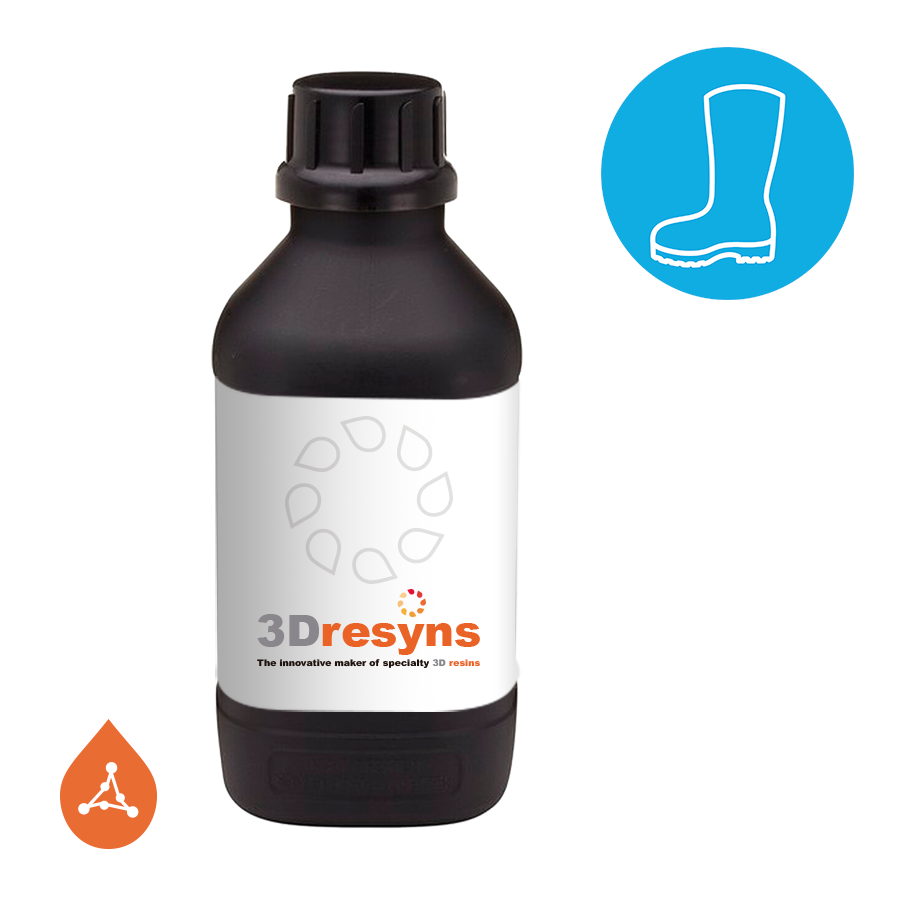

- NG 3Dresyn TFA80 Tough (non brittle) and Foldable (Shore A80) without breaking
- Medium hardness/toughness with increased flexibility vs TFD30, non brittle, foldable, with unique/excellent impact/shattering resistance

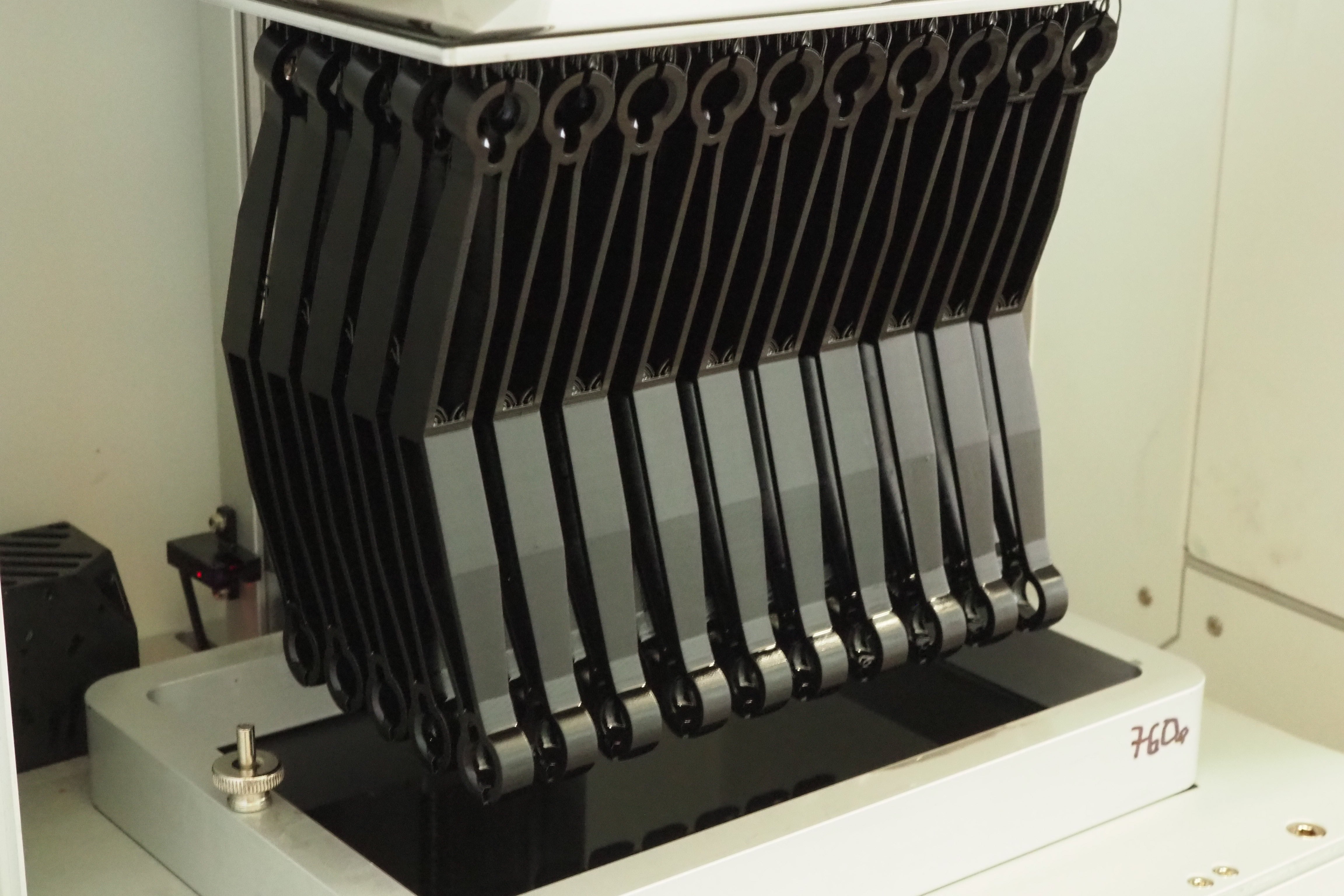

- NG 3Dresyn TFA70 Tough (non brittle) and Foldable (Shore A70) without breaking
- Medium hardness/toughness with increased flexibility vs TFA80, non brittle, foldable, with unique/excellent impact/shattering resistance

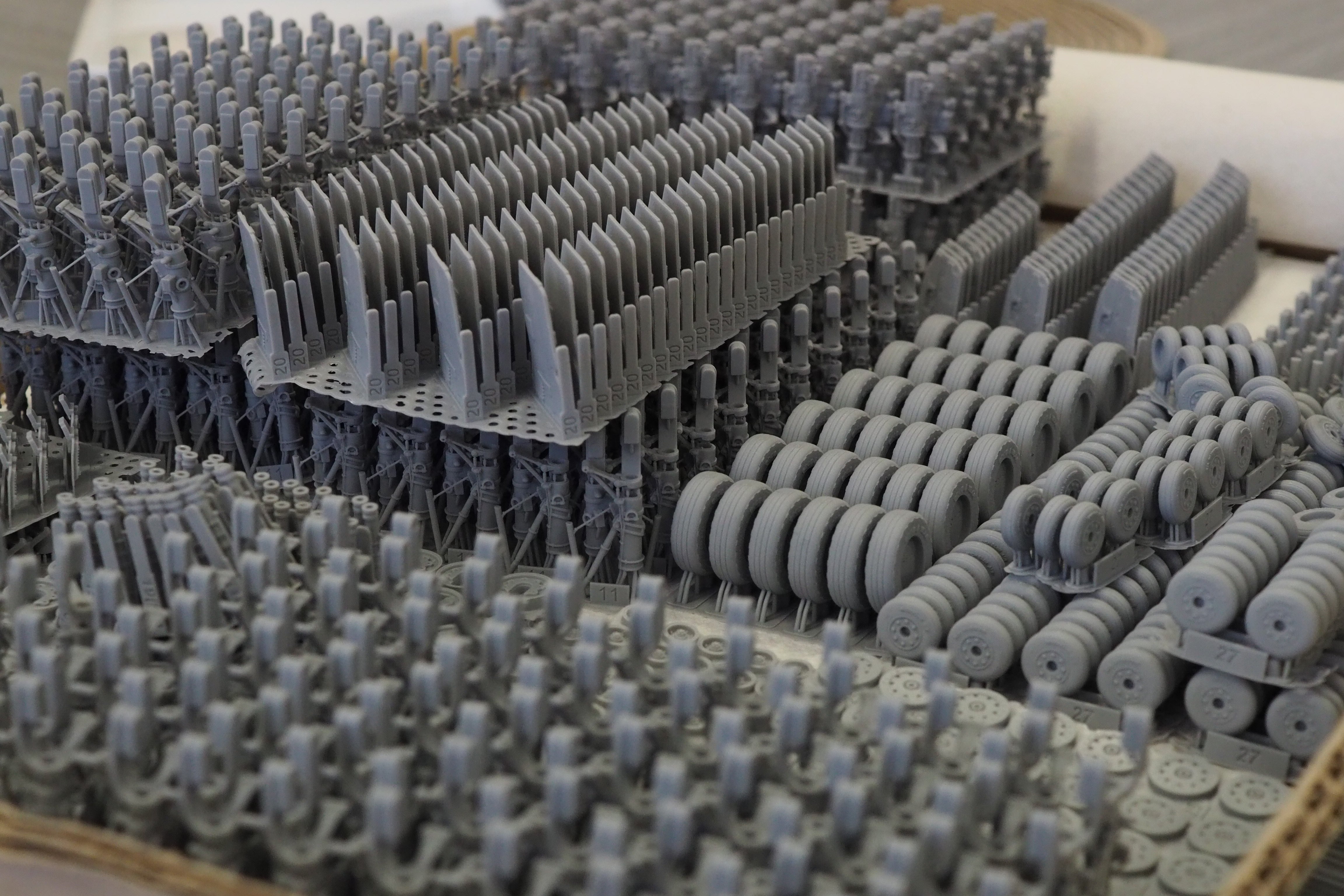

- NG 3Dresyn TFA60 Tough (non brittle) and Foldable (Shore A60) without breaking
- Lower medium hardness/toughness vs TFA70, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing
Flexible & Elastic grades, biocompatible (when post processed with our Cure Tester & Purification kit)
- NG 3Dresyn FA50 Flexible (Shore A50) without breaking
- Medium soft vs TFA60, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing
- NG 3Dresyn FA40 Flexible (Shore A40) without breaking
- Higher Flexibility and Foldability vs FA50, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing
- NG 3Dresyn FA30 Flexible (Shore A30) without breaking
- Higher Flexibility and Foldability vs FA40, non brittle, foldable, with unique/excellent impact/shattering resistance , non yellowing
- NG 3Dresyn EA20 Elastic (Shore A20) without breaking
- High Elasticity and Foldability vs FA30, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing

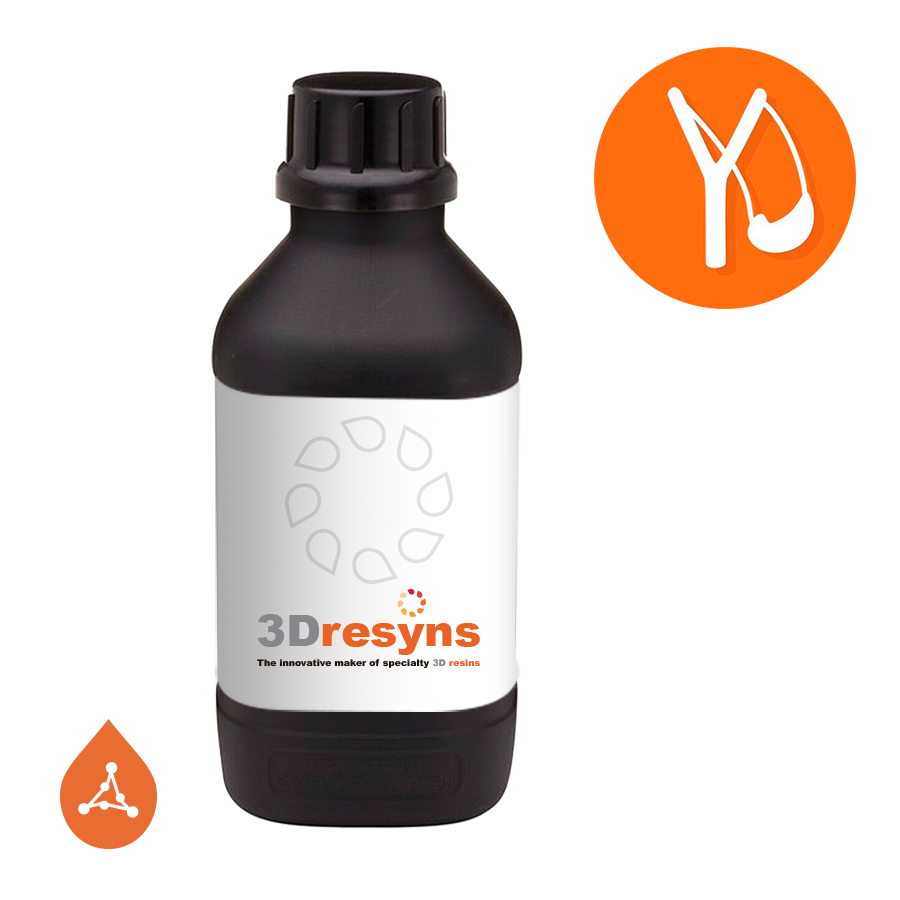

- NG 3Dresyn SEA10 Super Elastic (Shore A10) without breaking
- Higher Elasticity and Foldability vs EA20, non brittle, foldable in relatively thick walls, with unique/excellent impact/shattering resistance, non yellowing
Overall Benefits of NextGen 3Dresyns:
- excellent mechanical properties with tensile strength up to 70-80 MPa for tougher grades
- reduced brittleness in a broad temperature range: at low and high temperature
- functional materials for engineering and biomedical applications
- biocompatible safe grades
- broad range of properties, from extra hard/tough to flexible grades
- broad elongation range, from <1-10% and up to 100%
- high tear resistance for rigid, tough and tough and foldable grades
- high resilience for hard, tough, flexible and foldable grades
- high impact and shattering resistance for even hard grades
- durable
- very high resolution c.10 microns
- very low shrinkage c.<1%
- printable by most commercial and professional SLA DLP, LCD printers
- organo-tin and epoxy free
- Special and Custom NCS and RAL colors are available upon request.
- CMYK: cyan, magenta, yellow, black and white light fast colors already added to the resins without any settling/sedimentation.
- A NextGen 3Dresyns Colors kit is a color kit available for printer users interested in controlling the color strength by adding the colors themselves to the resins.
Contact us to consult about our NextGen 3Dresyns and your specific performance goals at: info@3Dresyns.com
