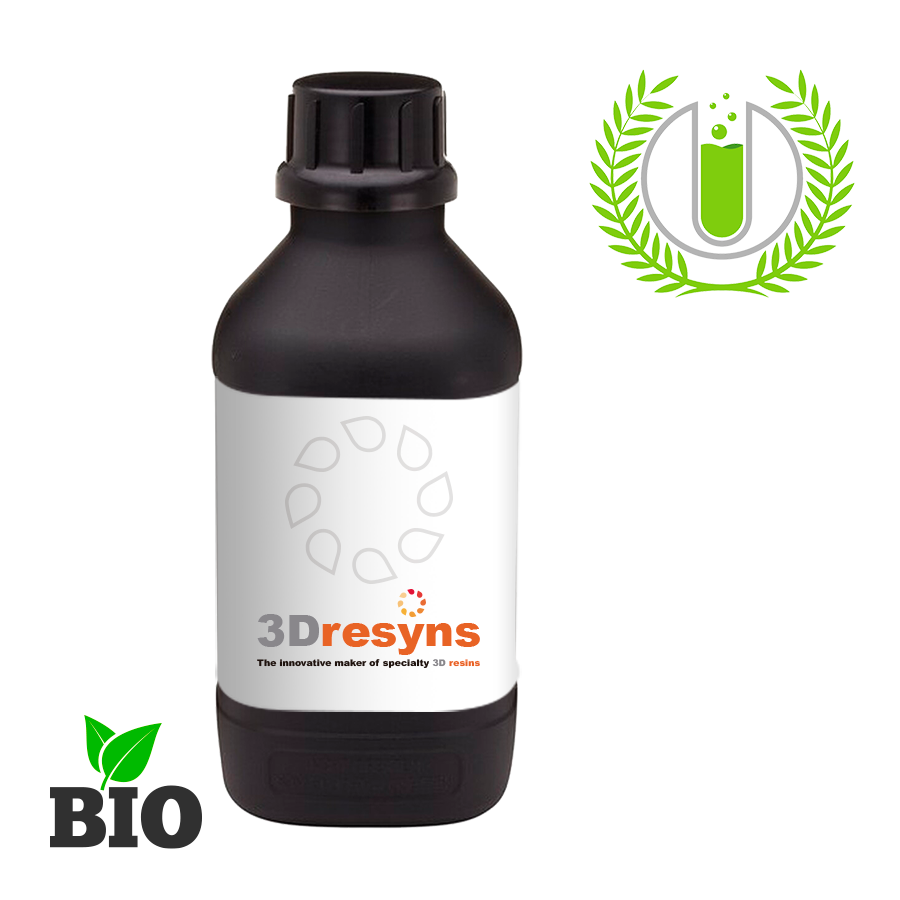

3Dresyn UHV-EA20 Bio, Biocompatible elastic resin with Shore A20 for Hot Lithograghy HL and Viscous Lithography Manufacturing VLM

Designed for use in Hot Lithography (HL) and Viscous Lithography Manufacturing (VLM) systems within controlled professional environments. Suitable for the fabrication of ultra-soft elastic parts requiring very high elongation, flexibility and resilience under repeated deformation.

• Ultra-soft elastic rubber-like components
• Parts requiring very high elongation and deformation capability
• Soft impact-absorbing structures
• Applications requiring Shore A20 compliant materials (ISO 868)
• Flexible elements with tunable rigidity

• Tensile strength: <10 MPa (ISO 527)
• Flexural strength: <10 MPa (ISO 178)
• Young’s modulus: <2 MPa (ISO 527)
• Elongation: >250% (ISO 527)
• Shore hardness: A20 (ISO 868)
• Typical viscosity: >60,000 cP at 20 °C

• Density: 1.0–1.2 g/cc at 25 °C (ISO 1675)
• High viscosity resin with very low flow at room temperature

• Refractive index: 1.47–1.49 (ISO 489)

• Elastic behavior without breaking
• Rubber-like response at Shore A20 (ISO 868)
• Very high elongation capability
• Ultra non-yellowing appearance
• High impact and shattering resistance
• Durable behavior under controlled conditions
• Very high resolution
• Very low shrinkage
• Ultra-low organo-tin content
• Synthetic resin source

• Compatible with Hot Lithography and Viscous Lithography Manufacturing systems
• Broader property adjustment can be achieved with 3Dresyn SA1 HV Bio and 3Dresyn HA1 HV MF Bio
• More detailed property adjustment can be achieved with 3Dresyn SA2 LV Bio and 3Dresyn HA2 LV Bio

Note: ultra-soft elastic photopolymers may exhibit strong dependence on geometry, curing conditions and loading conditions. Final elasticity, elongation and durability must be validated by the user for the intended application.

Material performance depends on printer type, thermal control, exposure conditions, geometry and full workflow implementation. Mechanical performance, elasticity, elongation and final suitability must be validated by the user for each specific application.

• Ultra-soft elastic performance with very high elongation
• Shore A20 for highly compliant applications (ISO 868)
• Rubber-like behavior with high deformation capability
• Non-yellowing appearance and very low shrinkage
• Suitable for HL and VLM manufacturing workflows
• Very high resolution and durability
• Rigidity tunable with dedicated adjusters

This material is supplied as a professional manufacturing material and is not marketed as a finished product. Final performance, durability, elasticity and process validation remain the responsibility of the user depending on printer, part design, thermal exposure and workflow conditions.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
