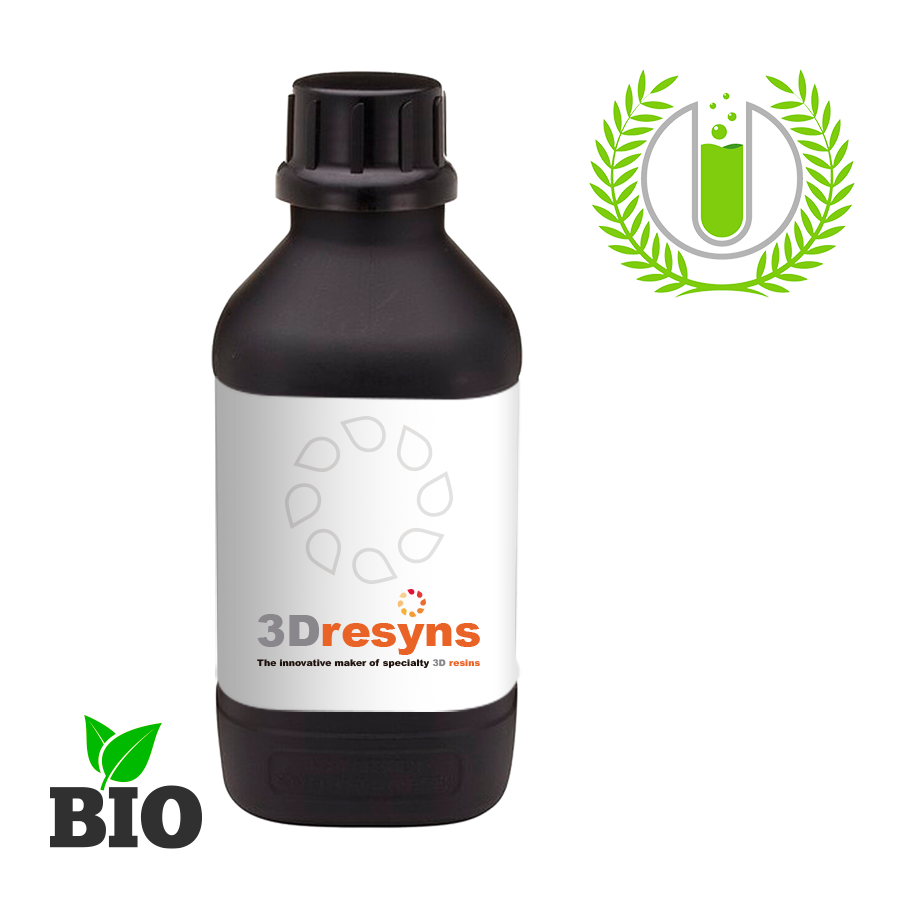

3Dresyn HA1 HV MF Bio , Biocompatible Rigidity and Hardness Adjuster with high viscosity for significant rigidity adjustment

3Dresyn HA1 HV MF Bio is an ultra tough monomer free biocompatible hardness & rigidity adjuster for significant rigidity and toughness adjustment of 3Dresyns.

3Dresyn HA1 HV MF Bio is used for adjusting the rigidity and hardness of 3Dresyns with Shore below or above D90 to your personal choice. It is normally used up to 5-15% dosage, or more depending on printer and rigidity specifications for certain thickness.

Designed for use in compatible SLA, DLP & LCD 3D resin systems as a hardness and rigidity adjuster.

• Adjusting the rigidity and hardness of 3Dresyns with Shore below or above D90
• Adjusting rigidity and toughness of compatible 3Dresyns

• Tensile strength: <50 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: >90 MPa (ISO 178)
• Young’s modulus: >2500 MPa (ISO 527)
• Elongation at break: <4% (ISO 527)
• Shore hardness: D90 (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Shrinkage: very low
• Viscosity: optimized within the processing range required for the intended printing process and application

• Ultra tough, rigid with minor flexibility at thin thickness
• Ideal for adjusting the rigidity and hardness of 3Dresyns with Shore below or above D90
• Good impact and shattering resistance
• Durable
• Very high resolution
• Increased durability of the resin tank

• Normally used up to 5-15% dosage, or more depending on printer and rigidity specifications for certain thickness
• Printable by most commercial and professional SLA, DLP & LCD 3D printers
• Please do not expose any 3D resins to direct natural or artificial room light to prevent curing.

• Synthetic resin source
• Biocompatible, monomer free
• Organo-tin free

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
