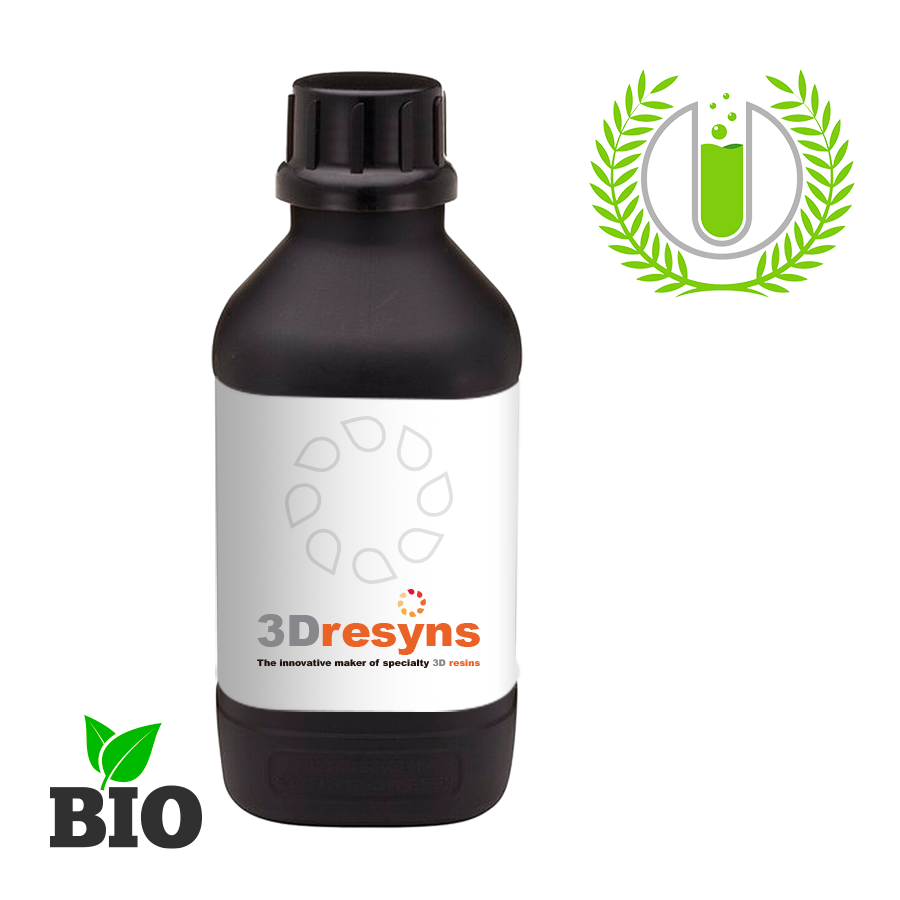

3Dresyn UHV-HDT1 Bio, Biocompatible high deflection temperature up to 290ºC resin for Hot Lithograghy HL and Viscous Lithography Manufacturing VLM

Designed for use in Hot Lithography (HL) and Viscous Lithography Manufacturing (VLM) systems within controlled professional environments. Suitable for the fabrication of durable high-temperature molds and rigid technical parts requiring very high stiffness, thermal resistance and dimensional stability.

• Durable molds for injection temperatures up to 290 °C
• Ultra-rigid technical parts for HL and VLM workflows
• High-temperature tooling and mold inserts
• Dimensional-stable components requiring very high rigidity
• Advanced manufacturing workflows using high viscosity resins

• Tensile strength: >40 MPa (ISO 527)
• Flexural strength: >40 MPa (ISO 178)
• Flexural modulus: >5000 MPa (ISO 178)
• Elongation: <1% (ISO 527)
• Shore hardness: D90 (ISO 868)
• Typical viscosity: <60,000 mPa·s at 20 °C (Brookfield)

• Density: 1.0–1.2 g/cc at 25 °C (ISO 1675)

• Heat deflection temperature (HDT): up to 290 °C @ 0.45 MPa (ISO 75)

• Refractive index: 1.50–1.52 (ISO 489)

• Clear, non-colored liquid resin for HL and VLM
• Ultra hard and rigid (UHR)
• High temperature resistance suitable for demanding mold applications
• Durable behavior under controlled processing conditions
• Very high resolution
• Very low shrinkage
• Organo-tin free formulation
• Synthetic resin source

• High viscous non-flowing resin at room temperature
• Compatible with Hot Lithography and Viscous Lithography Manufacturing systems
• Significant rigidity refinement can be achieved with 3Dresyn SA1 HV Bio and 3Dresyn HA1 HV MF Bio
• Detailed rigidity refinement can be achieved with 3Dresyn SA2 LV Bio and 3Dresyn HA2 LV Bio

Note: high Heat Deflection Temperature HDT 3D resins despite being rigid tend to be fragile and have a short lifetime, degrading thermally at high temperature. If durable materials with high HDT are needed it is recommended the use of machined polyimide, or injecting PolyAmide Imide PAI or other high HDT conventional polymers in metal or 3D printed molds.

Material performance depends on printer type, thermal control, exposure conditions, geometry and full workflow implementation. Mechanical and thermal performance must be validated by the user for each specific application.

• Ultra-high rigidity and hardness for demanding applications
• High thermal resistance up to 290 °C
• Suitable for HL and VLM manufacturing workflows
• Very high resolution and very low shrinkage
• Rigidity tunable with dedicated adjusters

This material is supplied as a professional manufacturing material and is not marketed as a finished product. Final performance, durability and process validation remain the responsibility of the user depending on printer, mold design, thermal exposure and workflow conditions.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
