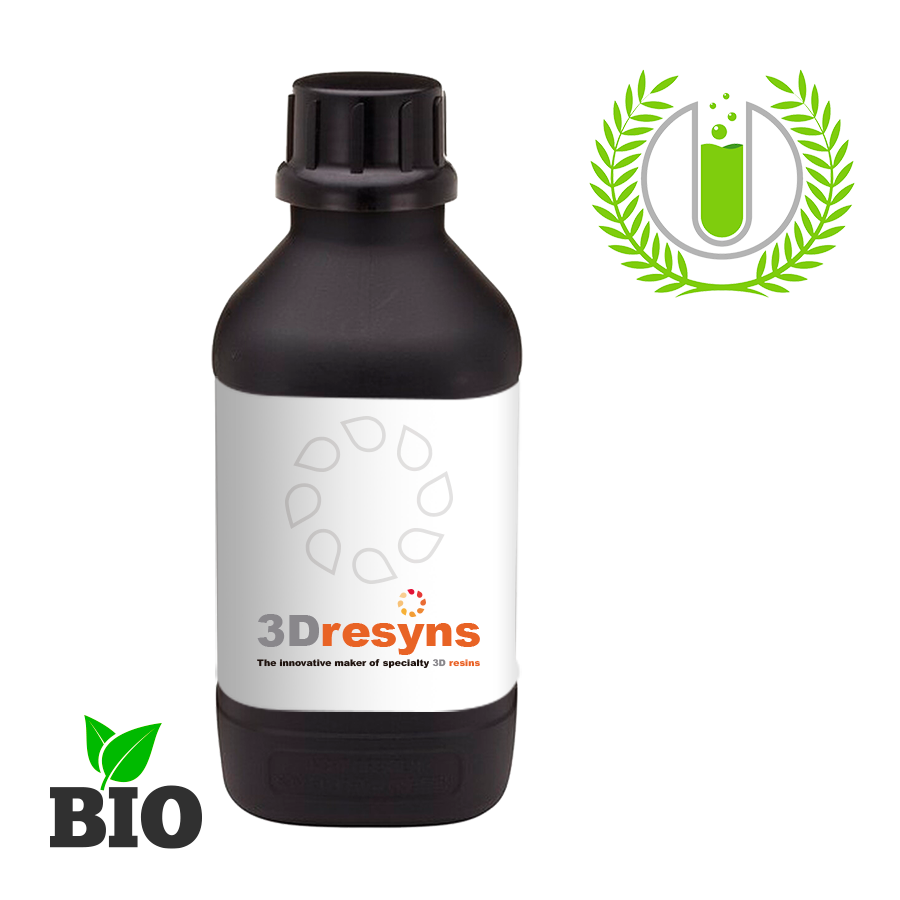

3Dresyn UHV-UTFD80 Bio, Biocompatible Ultra Tough & Foldable resin with Shore D80 for Hot Lithograghy HL and Viscous Lithography Manufacturing VLM

Designed for use in Hot Lithography (HL) and Viscous Lithography Manufacturing (VLM) systems within controlled professional environments. Suitable for the fabrication of durable foldable parts, impact-resistant flexible components and technical applications requiring toughness, resilience and very low shrinkage.

• Foldable technical parts requiring repeated deformation without breaking
• Impact-resistant flexible components for HL and VLM workflows
• Durable parts requiring high shattering resistance
• Flexible structural elements with controlled hardness
• Applications requiring tunable rigidity while maintaining foldability

• Tensile strength: <25 MPa (ISO 527)
• Flexural strength: <25 MPa (ISO 178)
• Young’s modulus: <300 MPa (ISO 527)
• Elongation: <200% (ISO 527)
• Notched Izod impact strength: >90 J/m (ISO 180)
• Shore hardness: D80 (ISO 868)
• Typical viscosity: <10,000 cP at 70 °C; <5,000 cP at 80 °C; <2,500 cP at 90 °C; <2,000 cP at 100 °C

• Density: 1.0–1.2 g/cc at 25 °C (ISO 1675)
• High viscosity, non-flowing resin at room temperature intended for heated HL and VLM workflows

• Refractive index: 1.47–1.49 (ISO 489)

• Ultra tough and foldable behavior without breaking
• Monomer-free, biocompatible-grade formulation
• Non-yellowing appearance
• High impact and shattering resistance
• Durable behavior under controlled processing conditions
• Very low shrinkage
• Organo-tin free formulation
• Synthetic resin source

• Compatible with Hot Lithography and Viscous Lithography Manufacturing systems
• Hardness and rigidity can be increased with 3Dresyn HA1 HV MF Bio at user-selected dosages typically in the range of 1–15% by weight, subject to validation
• Broader property adjustment can be achieved with 3Dresyn SA1 HV Bio and 3Dresyn HA1 HV MF Bio
• More detailed property adjustment without sacrificing foldability can be achieved with 3Dresyn SA2 LV Bio and 3Dresyn HA2 LV Bio

Note: foldable and highly tough photopolymers may show application-dependent behavior depending on wall thickness, print orientation, cure state, thermal history and long-term deformation conditions. Final flexibility, foldability and durability must be validated by the user under the intended workflow and service conditions.

Material performance depends on printer type, thermal control, exposure conditions, geometry and full workflow implementation. Mechanical performance, foldability, impact resistance and final suitability must be validated by the user for each specific application.

• Ultra tough and foldable performance for demanding flexible applications
• Non-yellowing appearance and very low shrinkage
• Suitable for HL and VLM manufacturing workflows
• Rigidity and hardness tunable with dedicated adjusters
• Durable performance under controlled conditions

This material is supplied as a professional manufacturing material and is not marketed as a finished product. Final performance, durability, flexibility, foldability and process validation remain the responsibility of the user depending on printer, part design, thermal exposure and workflow conditions.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.

Access the 3Dresyns® Technical Resources (IFU, calibration, CRT, post-processing and troubleshooting)
