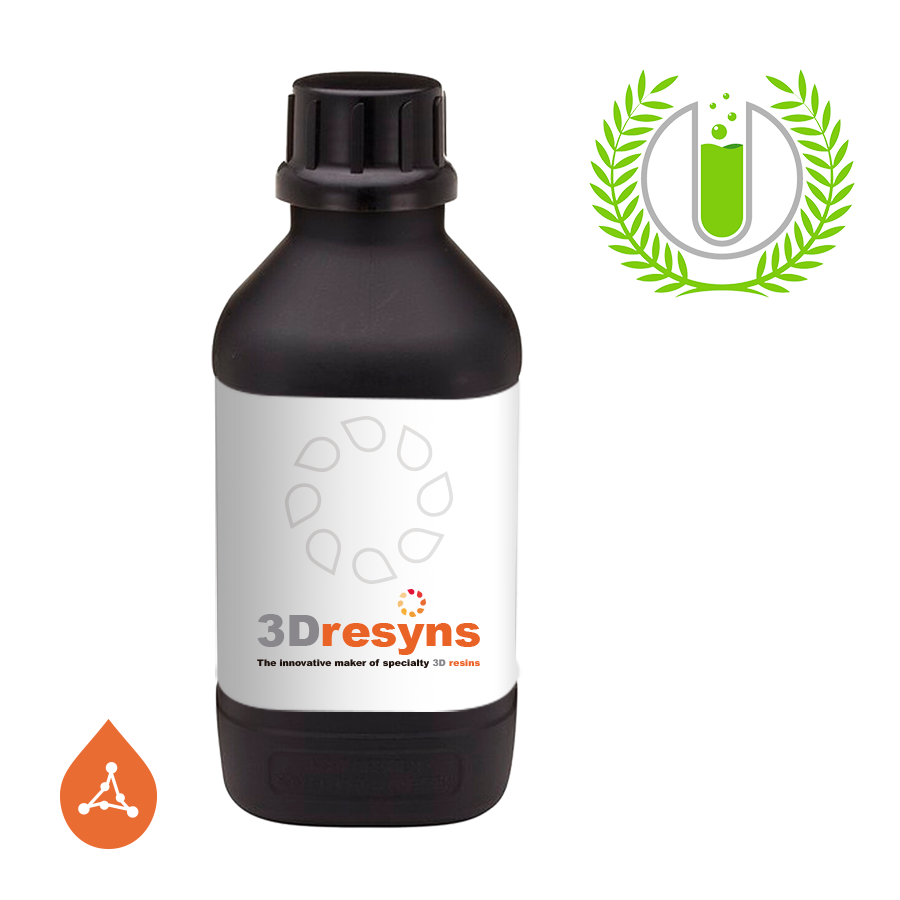

3Dresyn Bioflex A60 MB Monomer Based

Highly flexible biocompatible monomer-based 3D printing resin

Product description

3Dresyn Bioflex A60 MB is a highly flexible biocompatible monomer-based photopolymer resin designed for applications requiring pronounced flexibility, elastic recovery and soft-touch behavior, while maintaining adequate mechanical integrity.
The monomer-based formulation provides enhanced reactivity and broader processing latitude compared to monomer-free grades.

Intended use

Intended for professional use in vat photopolymerization (SLA, DLP and LCD) additive manufacturing.
Final suitability of printed parts must be validated by the user according to the specific application, processing conditions and applicable regulatory requirements.

Typical applications

Flexible medical device components
Wearable and patient-contact parts
Flexible housings, seals and interfaces
Functional biomedical prototypes

Material properties & test methods

Mechanical properties
Shore hardness: A60 (ISO 868)
Tensile strength: ~ 2–6 MPa (typical) (ISO 527-1 / ISO 527-2)
Tensile modulus (Young’s modulus): ~ 1–5 MPa (typical) (ISO 527-1 / ISO 527-2)
Elongation at break: ~ 150–250 % (typical) (ISO 527-1 / ISO 527-2)

Thermal properties
Heat deflection temperature (HDT): < 10 °C @ 0.45 MPa (typical) (ISO 75)

Physical properties
Density: 1.0–1.2 g/cm³ (typical) (ISO 1183)
Water absorption: < 0.1 % (typical, 24 h @ 23 °C) (ISO 62)

Biocompatibility & regulatory framework
Biocompatibility evaluated according to ISO 10993
Manufacturing aligned with ISO 13485 quality management systems

Testing & processing disclaimer
Material properties are measured on printed and post-processed specimens and may vary depending on the selected material version, printer type, printing parameters, build orientation, post-curing conditions and test specimen preparation. Reported values are indicative and provided for reference only.

Printing & processing guidelines

Printing technologies: SLA, DLP and LCD
Wavelength range: 385–405 nm

Product units

Available units: 500 g, 1,000 g
