Standard 3D resins for general purpose applications
Our Standard value for money SLA, DLP & LCD 3Dresyns for general purpose applications
Click on the links to order and find more information about the Properties, Features and Benefits of our Standard SLA, DLP & LCD 3Dresyns shown in decreasing order of hardness
Typical properties of our Standard 3Dresyns in Clear and Basic colors*
STD 3Dresyn |
Acronym |
Deflection Temperature (ºC) |
Shore hardness |
Flexural strength (MPa) |
% Elongation |
Young´s modulus (MPa) |
Tensile strength (MPa) |
Ultra hard and tough |
<80 |
D85 |
>50 |
<2 |
2000-3000 |
>30 |
|
Ultra hard and flexible |
<60 |
D80 |
>40 |
<15 |
1000-2000 |
>30 |
|
Hard and flexible |
<10 |
A90 |
<20 |
>40 |
<500 |
<10 |
|
Hard and elastic |
<0 |
A70 |
<10 |
>50 |
<10 |
<10 |
|
Flexible |
<0 |
A60 |
<8 |
>50 |
<8 |
<8 |
|
Soft and flexible |
<0 |
A20 |
<2 |
>90 |
<2 |
<3 |
|
Elastic |
<0 |
A10-20 |
<1.5 |
>90 |
<2 |
<2 |
|
Super elastic
|
<0 |
A10 |
<1.5 |
>>100 |
<2 |
<2 |
*Note: properties can vary since depend on few variables such as light wavelength and power, printing settings, light postcuring settings, post processing, etc.
RELATIVE SHORE HARDNESS SCALE AND RIGIDITY IN DECREASING ORDER OF OUR STANDARD 3DRESYNS SHOWN WITH ALL COLOR OPTIONS:

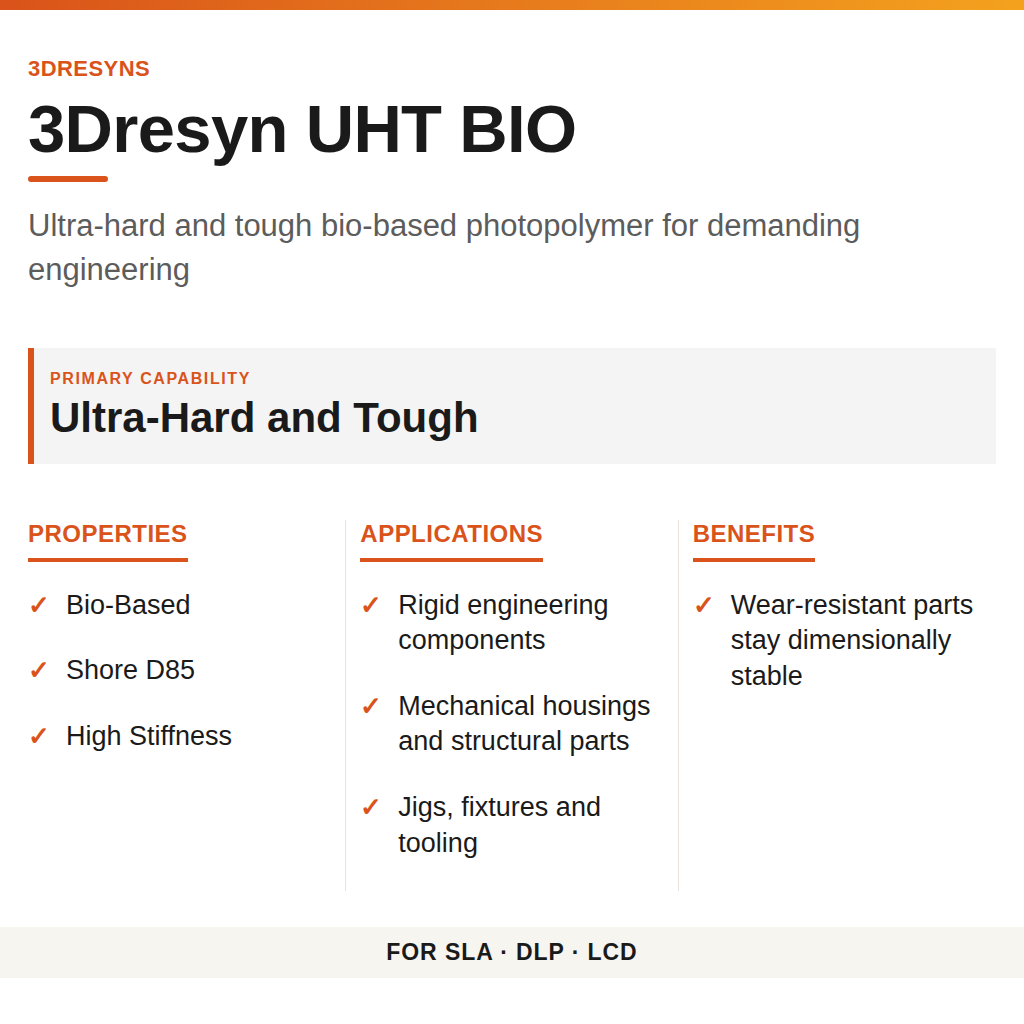

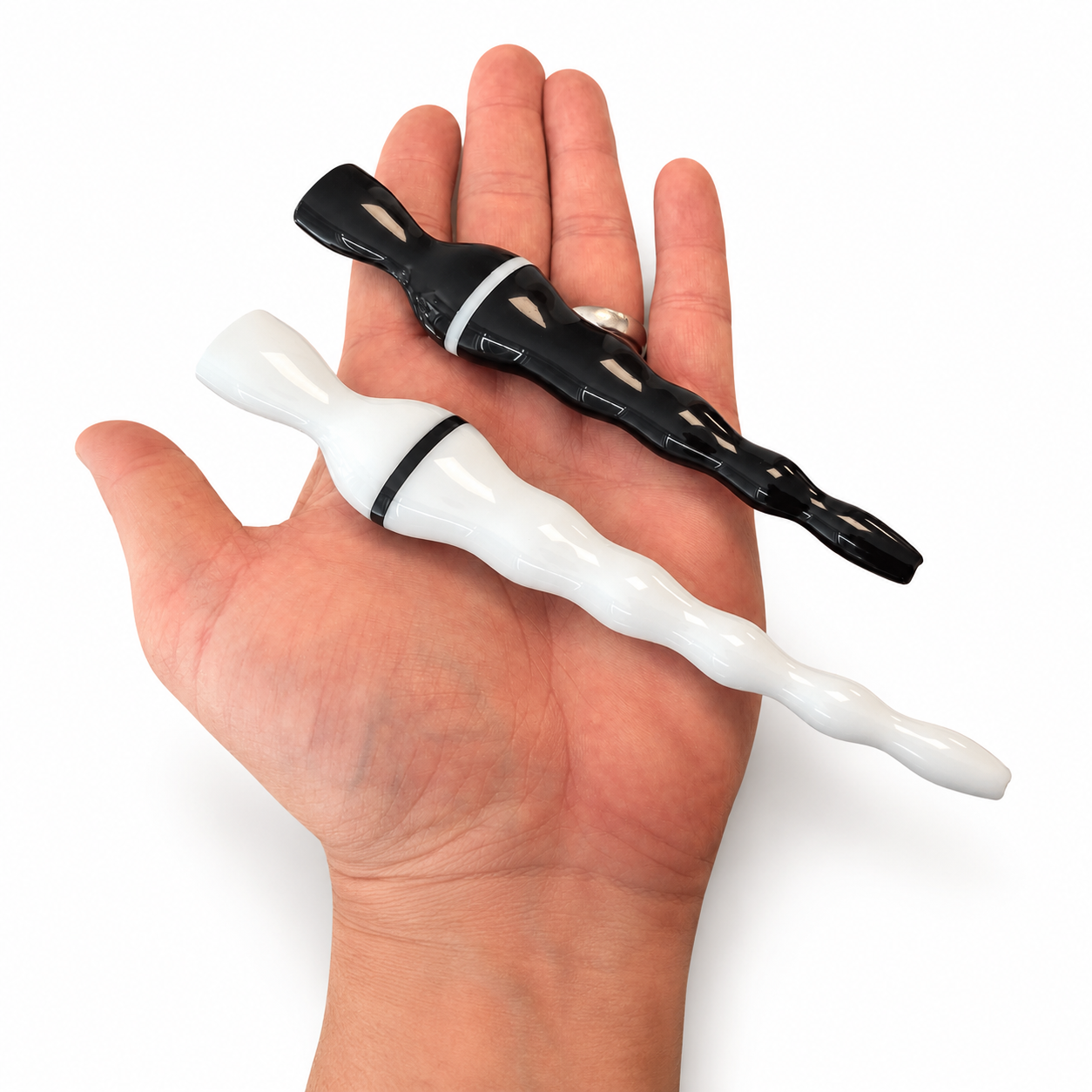

- 3Dresyn UHT (Shore D85)
- Ultra Hard & Tough, minor flexibility, minor brittleness, medium/good impact/shattering resistance, biocompatible
- 3Dresyn UHF (Shore D80)
- Ultra Hard & Flexible, certain minor flexibility at small thicknes, minor brittleness, medium/good impact/shattering resistance, biocompatible

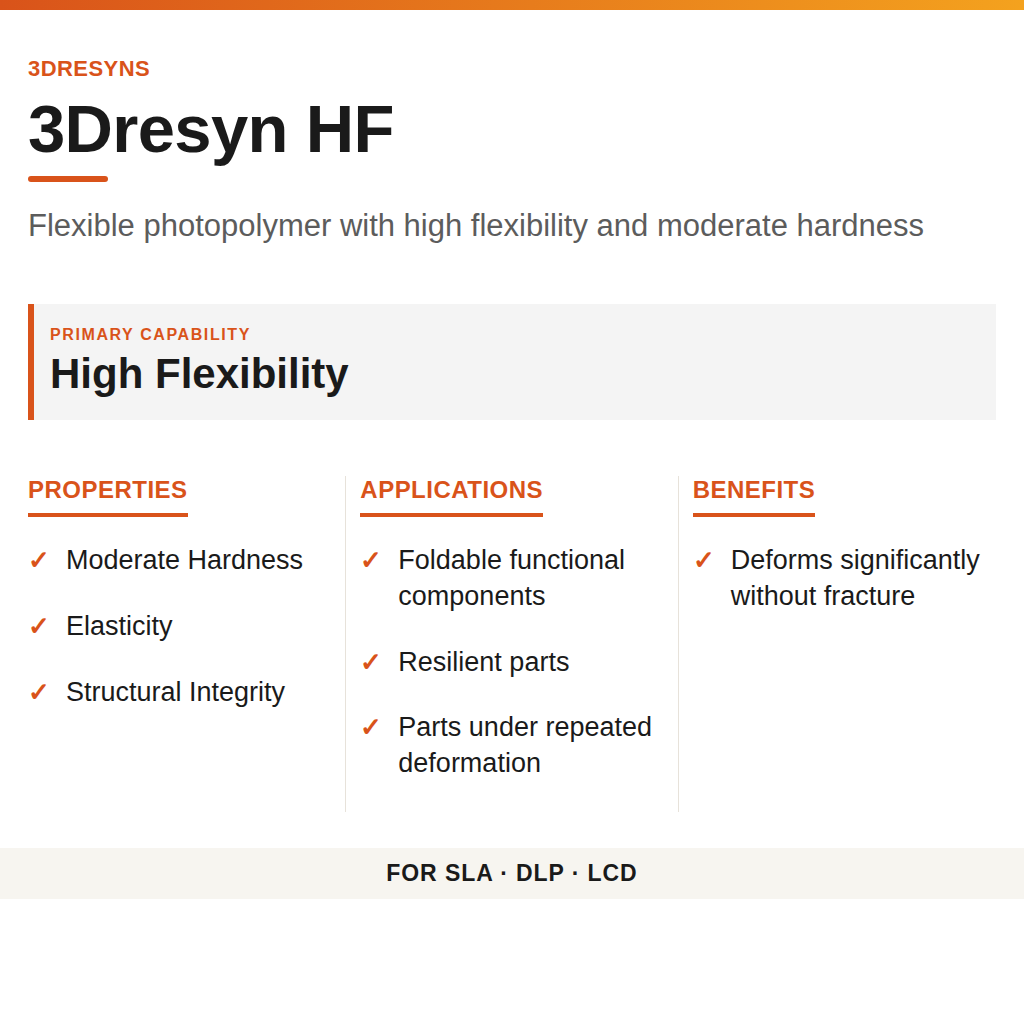

- 3Dresyn HF (Shore A90)
- Hard & Flexible, foldable at relatively small thickness, non brittle, with unique/excellent impact/shattering resistance, biocompatible
- Hard & Elastic, with increased flexibility vs 3Dresyn HF, non brittle, foldable, with unique/excellent impact/shattering resistance
- 3Dresyn F (Shore A60-70)
- Flexible, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing

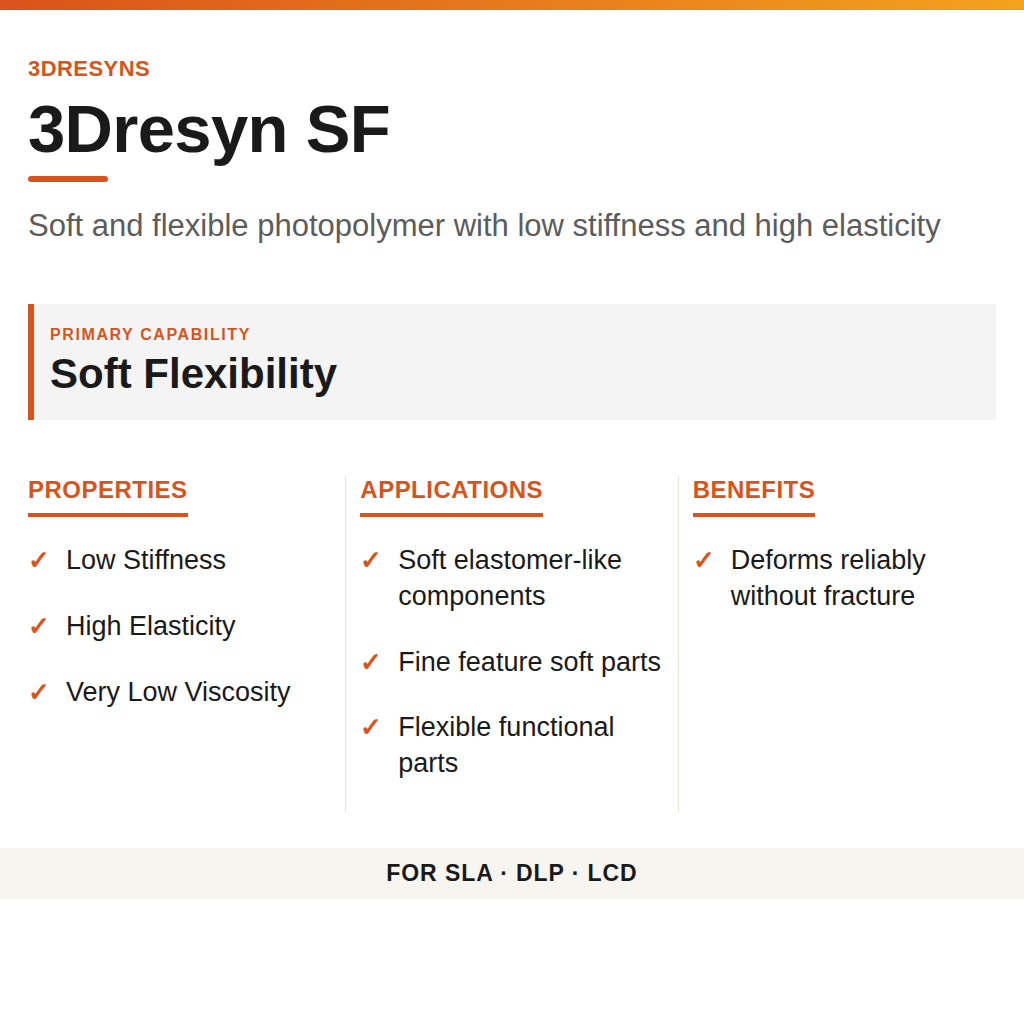

- 3Dresyn SF (Shore A20)
- Soft & Flexible , non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing
- 3Dresyn E (Shore A20)
- Elastic, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing
- 3Dresyn SE (Shore A10)
- Super Elastic, non brittle, foldable, with unique/excellent impact/shattering resistance, non yellowing
Overall Benefits of Standard SLA, DLP and LCD 3Dresyns:
- excellent mechanical properties with tensile strength >50 MPa for tougher grades
- functional materials for engineering and biomedical applications
- biocompatible safe grades
- broad range of properties, from ultra hard & tough to super elaastic grades
- broad elongation range, from <1-10% and up to 100%
- high tear resistance for rigid, tough and tough and foldable grades
- high resilience for hard, tough, flexible and foldable grades
- high impact and shattering resistance for even hard grades
- durable
- very high resolution c.10-20 microns
- very low shrinkage c.<1%
- printable by most commercial and professional SLA, DLP, LCD printers
- organo-tin and epoxy free
- Basic, Special and Custom NCS and RAL colors can be ordered in just few clicks
Contact us to consult about our Standard SLA, DLP and LCD 3Dresyns and your specific performance goals at: info@3Dresyns.com
