Custom RAL or NCS Colors

Product description

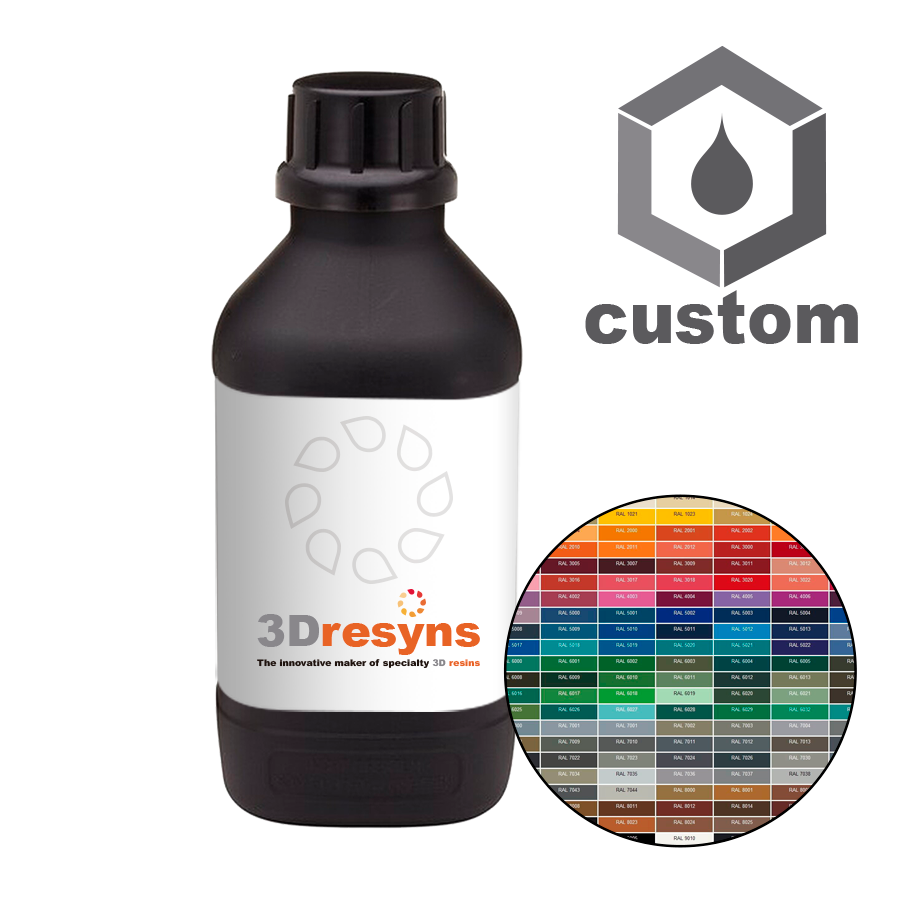

3Dresyns Custom RAL or NCS Colors is a coloring product for custom coloring SLA, DLP & LCD 3D resins. It allows the user to select a custom RAL or NCS color.

These colors are supplied as liquid color pastes in 10 or 60 grams samples of the chosen RAL or NCS colors. They are designed for use at low dosage levels and provide strong color yield.

Application framework

Designed for custom coloring SLA, DLP & LCD 3D resins. Compatible with all our 3Dresyns and with most commercial SLA, DLP & LCD 3D resins.

Typical applications

• Custom coloring of SLA, DLP & LCD 3D resins
• Selection of user-defined RAL or NCS colors for 3D resins

Measured physical properties

• Recommended dosage: 0.2-0.8% by weight
• Supplied in 10 or 60 grams samples
• Supplied as liquid color pastes

Functional performance characteristics

• Excellent color yield and strength even at very low dosage
• Excellent light fastness
• Excellent performance as resolution increasers, reducing bleeding to improve resolution

Processing and handling performance

• Compatible with all our 3Dresyns and with most commercial SLA, DLP & LCD 3D resins
• Supplied as a kit, which contains the product, one graduated beaker and one empty 250 mL black bottle to measure, mix, keep and protect the 3D resins from daylight
• Please do not expose any 3D resins to natural or room light to prevent their curing
• They can suffer sedimentation in non specially designed/stabilised 3D resins
• They are normally used at small dosage (0.2-0.8% by weight)

Testing & processing disclaimer

They can suffer sedimentation in non specially designed/stabilised 3D resins. Please do not expose any 3D resins to natural or room light to prevent their curing.

Disclaimer

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

Document reference: TDS-CUSTOM-RAL-NCS-COLORS-EN | Version: 1.0 | Last updated: March 2026
