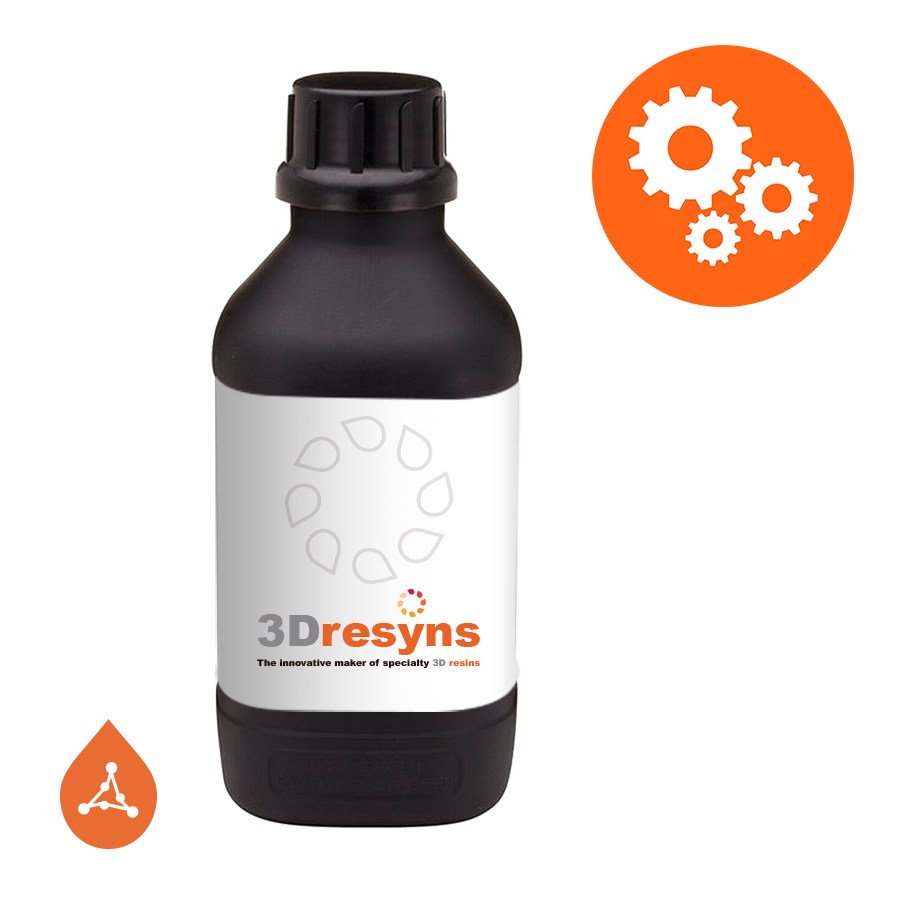

3Dresyn HIPS-like High-Impact Polystyrene Rigid Engineering Resin

3Dresyn® HIPS-like is a high-performance engineering photopolymer designed to replicate the mechanical behaviour of high impact polystyrene (HIPS), combining rigidity, toughness and impact resistance.

The formulation provides excellent optical clarity with minimal yellowing and incorporates bio-based content from renewable sources. It is available in HV (higher mechanical performance) and LV (lower viscosity) versions to ensure compatibility across a wide range of SLA, DLP and LCD systems.

Designed for functional engineering and biomedical applications requiring rigidity, impact resistance and reliable processing.

• Rigid functional components and housings
• Impact-resistant engineering parts
• Prototypes requiring balanced stiffness and toughness
• Consumer product enclosures and structural elements
• Biomedical and food-contact oriented applications (subject to validation)

• Tensile strength: <35 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <65 MPa (typical), >65 MPa with optimized processing (ISO 178)
• Young’s modulus: ~2000 MPa (ISO 527)
• Elongation at break: <30% (ISO 527)
• Impact resistance: Notched Izod <90 J/m (ISO 180)
• Shore hardness: D60 (ISO 868)

• Density: 1.0–1.1 g/cm³ (ISO 1675)
• Water absorption: ultra low (hydrophobic behaviour) (ISO 62)
• Water solubility: ≤1.6 µg/mm³
• Printing shrinkage: no measurable dimensional shrinkage after calibration under validated processing conditions
• Resolution capability: up to 20 µm (process-dependent)
• Appearance: clear, non-yellowing unless pigmented
• Bio-based content: >15%

• Glass transition temperature (Tg): >25 °C (ISO 11357-2)

• HIPS-like balance of rigidity and toughness
• Good impact resistance with moderate flexibility
• Stable dimensional performance with low shrinkage
• Hydrophobic behaviour with ultra low water uptake
• Improved clarity and optical stability
• Durable under mechanical stress

• Printing technologies: SLA, DLP and LCD
• Wavelength range: 385–405 nm
• HV version: optimized for improved mechanical performance
• LV version: optimized for ease of processing and flow
• Compatible with open-parameter systems
• Optimized using 3Dresyns IFU and calibration workflow

• Biocompatible formulation platform
• Food-contact oriented formulation (application-dependent validation required)
• Final device must be validated according to ISO 10993
• Manufacturing aligned with ISO 13485
• Organo-tin free formulation

Material properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure conditions, layer thickness, build orientation and post-processing workflow.

This material is supplied as a professional engineering material. Final part performance and suitability must be validated by the user according to the intended application and regulatory requirements.
