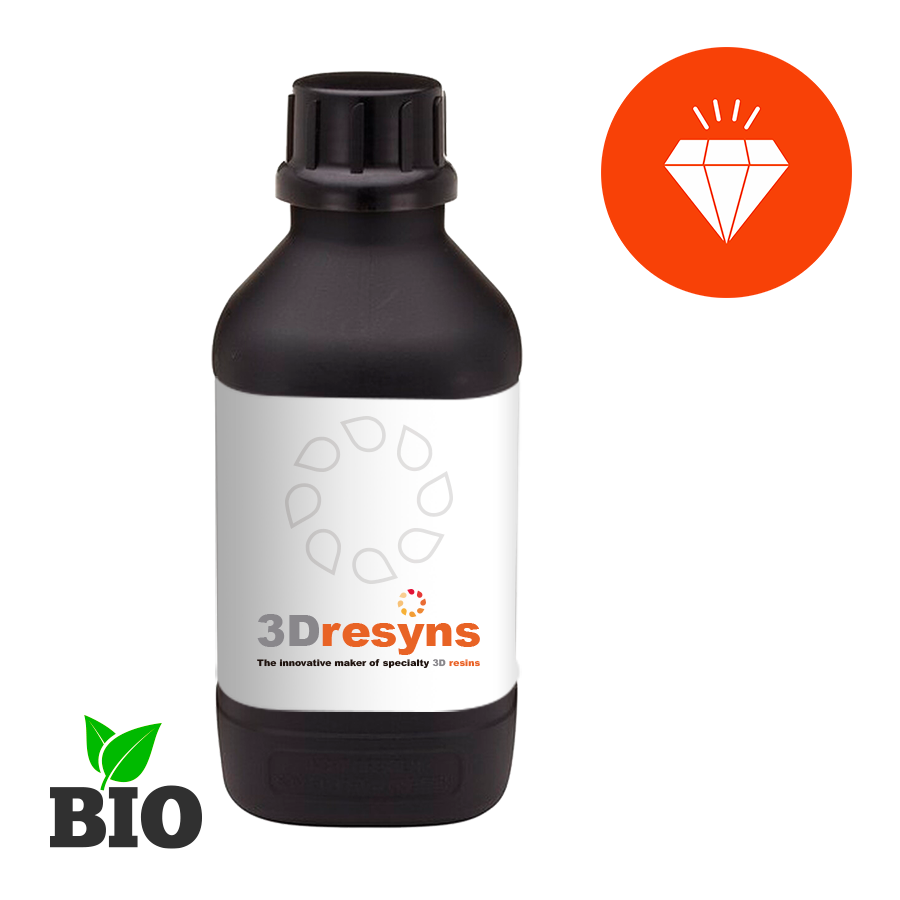

Thinner 3Dresyn R Bio, rigid biocompatible reactive diluent

Thinner 3Dresyn R Bio is a rigid biocompatible reactive diluent or thinner with a deflection temperature >110ºC.

Thinner 3Dresyn R Bio has extremely low viscosity and very good viscosity reduction while maintaining rigid behavior, durability, very high resolution and compatibility with most commercial and professional SLA, DLP & LCD 3D printers.

Designed for use as a rigid biocompatible reactive diluent or thinner in compatible SLA, DLP & LCD 3D resin systems.

• Reducing viscosity of compatible 3D resin systems
• Formulating rigid 3D resin systems with high deflection temperature

• Tensile strength: <50 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <50 MPa (ISO 178)
• Elongation at break: <3% (ISO 527)
• Shore hardness: D85-90 (ISO 868)
• Rigid with high deflection temperature above 110ºC (ISO 75)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Shrinkage: low
• Viscosity: <15 mPas at 23°C ± 2°C (ISO 3219)
• Deflection temperature: >110ºC (ISO 75)

• Very good viscosity reduction
• Durable
• Very high resolution
• Increased durability of the resin tank

• Printable by most commercial and professional SLA, DLP & LCD 3D printers

• Biocompatible
• Organo-tin free

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
