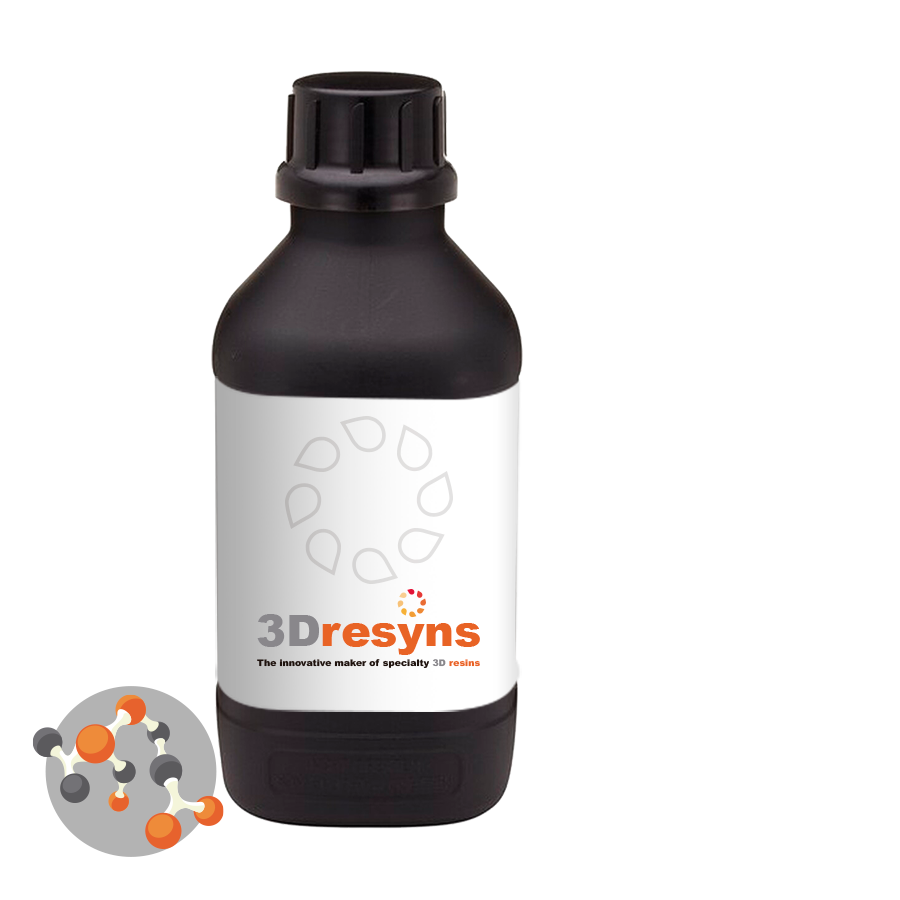

3Dresyn HP1 Clear High Permittivity optically transparent resin

3Dresyn® HP1 Clear is a high-permittivity optically transparent photopolymer designed for advanced dielectric and electronic applications. The material combines elevated dielectric performance with optical clarity, enabling the fabrication of functional components requiring both electrical performance and visual transparency.

This formulation is based on a highly polar, ultra-pure resin system engineered to achieve enhanced dielectric properties while maintaining excellent printability and surface resolution in SLA, DLP and LCD workflows.

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within research, electronics and advanced engineering environments requiring transparent dielectric materials.

• High permittivity dielectric components
• Transparent antennas and sensors
• RF and microwave devices
• Resonators and RF cavities
• Filters and capacitive components
• Optoelectronic and transparent electronic devices

• Elongation at break: <10% (ISO 527)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Very low viscosity (<200 mPa·s at 20 °C) enabling fast recoating

• Dielectric loss (ε¨): <0.5 at 10 Hz – 1 MHz (0–50 °C) (IEC 62631-2-1)
• Relative permittivity (ε_r): 8–12 (typical) (IEC 62631-2-1)

• High dielectric constant for advanced electromagnetic design
• Optical transparency enabling multifunctional devices
• Stable dielectric behavior across low-to-mid frequency ranges
• Suitable for integration in optoelectronic systems
• Very high resolution and surface quality

• Clear, optically transparent formulation
• High polarity for enhanced permittivity
• Medium hardness material behavior

• Printable with most commercial and professional SLA, DLP and LCD systems
• Very low shrinkage for dimensional stability
• Water cleanable processing workflow
• Increased durability of the resin tank

Dielectric performance depends on geometry, frequency range, printing parameters and post-processing conditions. Application-specific validation is required.

• Biocompatible (final part validation required)
• Biodegradable formulation
• Organo-tin free

Electrical, mechanical and optical properties are measured under controlled laboratory conditions and may vary depending on printer type, exposure parameters, geometry and post-processing workflow.

This material is supplied as a professional functional material for research and engineering workflows. It is not marketed as a finished electronic or medical device. Final performance and suitability must be validated by the user.
