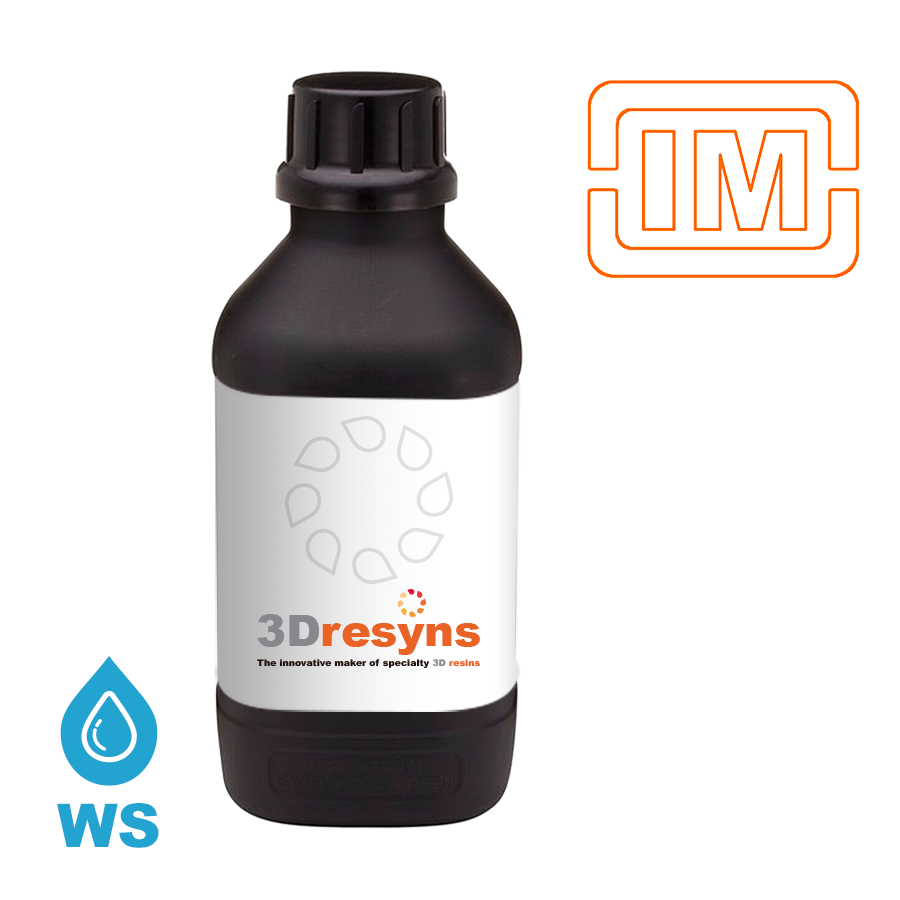

3Dresyn IM-UHR-WS High-Resolution Water-Soluble Sacrificial Resin

3Dresyn® IM-UHR-WS is a water-soluble ultra-high resolution photopolymer developed for the fabrication of precision single-use sacrificial molds and micro-detailed components requiring very fine feature definition and controlled dissolution in advanced molding and casting workflows.

Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within controlled professional environments. Suitable for high resolution sacrificial mold fabrication and micro-scale applications requiring exceptional dimensional accuracy, fine feature reproduction and clean post-process dissolution. This material is intended for single-use applications where the mold is removed after processing.

• Ultra-high resolution sacrificial molds for casting and micro-molding processes
• Microfluidic components
• Micro-detailed sacrificial molds for low-volume injection workflows
• Precision casting of polymers, resins and composite systems
• Fine-feature prototyping and master pattern fabrication

• Young’s modulus: <3000 MPa (ISO 527)
• Elongation: <3% (ISO 527)
• Shore hardness: D85 (ISO 868)
• Tensile and flexural strength: <60 MPa (ISO 527 / ISO 178)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Viscosity: <100 mPas at 23°C ± 2°C (ISO 3219)


• Heat deflection temperature (HDT): <140 °C @ 0.45 MPa (ISO 75)

• Ultra high resolution capability for micro-scale features
• Sharp edge definition and fine detail reproduction
• Fast dissolution in water
• Excellent dimensional accuracy for complex geometries
• Very low shrinkage

• Printable with most commercial and professional SLA, DLP and LCD 3D printers
• Cyan version is recommended for increased dimensional accuracy vs clear version
• Optimized for low layer thickness printing
• Improved performance with calibrated exposure conditions
• Increased durability of the resin tank
• Metal- and organo-tin free formulation
• Recommended printing temperature: 20–25 °C
• Level of printing difficulty: medium-high

Resolution performance strongly depends on exposure calibration, printer optical characteristics and full workflow optimization.

Material performance depends on printer type, exposure conditions, geometry, injected or cast material, processing temperature and workflow implementation. Parameters must be validated by the user for each specific application.

• High resolution performance for micro-scale applications
• Designed for single-use sacrificial mold fabrication
• Suitable for precision casting and micro-molding workflows
• Fast water solubility
• High dimensional accuracy and feature fidelity
• Broad compatibility with SLA/DLP/LCD printers

This material is supplied as a professional manufacturing material and is not marketed as a finished product. It is intended for use as a sacrificial tooling material. Final molding or casting performance, dissolution behavior and process validation remain the responsibility of the user depending on printer, mold design and processing workflow.
