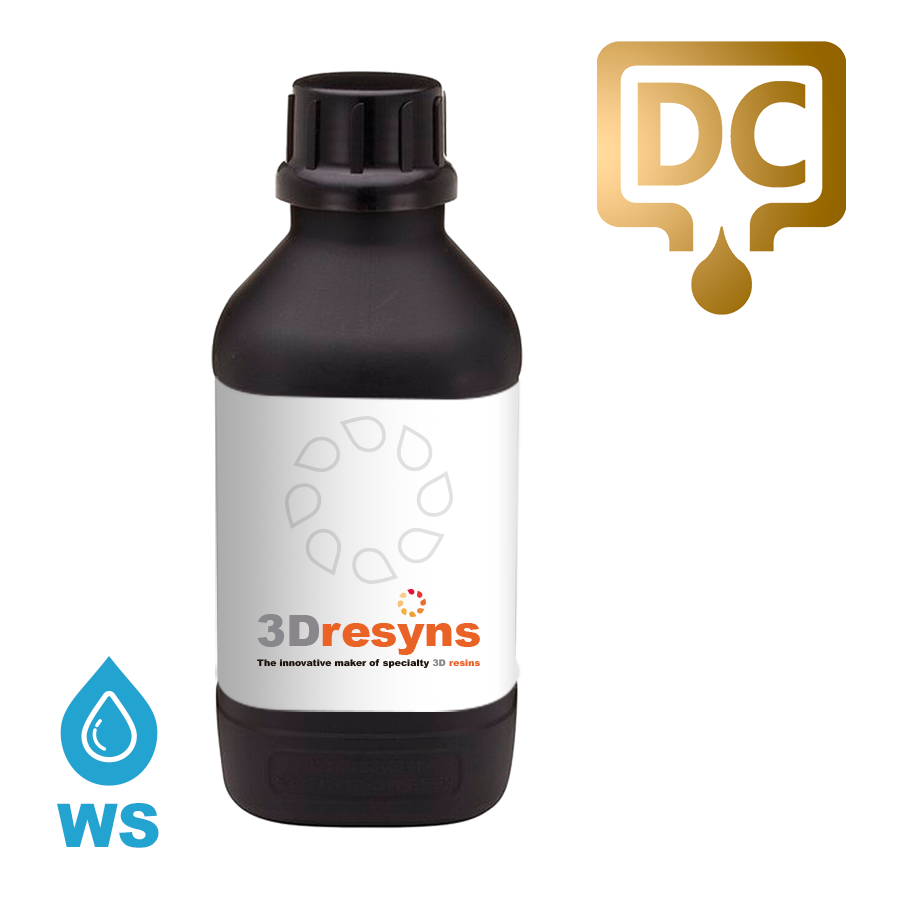

3Dresyn Perfect Cast WS1 Water Soluble for SLA, DLP & LCD Printers
Product description
3Dresyn® Perfect Cast WS1 is a water-soluble castable photopolymer formulation developed for direct investment casting workflows requiring complete resin removal prior to burnout. The material is designed for high detail applications, enabling clean dissolution in water or steam while maintaining excellent dimensional stability and casting performance.
Application framework
Designed for use in vat photopolymerization systems (SLA, DLP and LCD) within controlled laboratory and production environments. Suitable for direct investment casting workflows where water or steam removal of the printed pattern is required before burnout.
Typical applications
- Direct investment casting (DC)
- Complex hollow casting geometries
- Micro-casting structures requiring internal evacuation
- Applications requiring soluble sacrificial patterns
Material properties & performance
- Very low viscosity: <30 cps at 25 °C
- Shore hardness: D80 (ISO 868)
- Heat deflection temperature (HDT): >100 °C @ 0.45 MPa
- Tensile and flexural strength: <40 MPa
- Young’s modulus: >2000 MPa
- Elongation at break: <3%
- Very low shrinkage
- Negligible residual ash content (<0.0001%)
Functional performance characteristics
- Water- and steam-soluble after printing
- Fast dissolution enabling internal cavity evacuation
- No expansion or contraction defects after soluble removal and burnout
- High rigidity allowing thin-wall structures for optimized solubility
- Non-brittle behavior at injection temperatures
- High resolution up to 20 µm (process-dependent)
Processing and handling performance
- Printing technologies: SLA, DLP and LCD
- Compatible with most commercial and professional systems
- Optimized for high detail applications
- Fast printability, including low power LCD printers
- Improved solubility when printed at lower exposure power
- Tack-free surface after light box post-curing
- Increased durability of the resin tank
- Metal-free and organo-tin free formulation
- Recommended cleaning with Cleaning Fluid WS1 Bio
- Printing difficulty level: medium
Available formats
- Colors: clear, cyan, magenta, yellow, black, white
- Cyan, magenta, yellow and black provide higher resolution than clear and white
Burnout & dissolution behavior
- Soluble removal in water or steam prior to burnout
- Clean burnout without defects after proper dissolution
- No dimensional distortion when workflow is properly validated
Processing note
Soluble materials may swell instead of dissolve under certain conditions, particularly when printed at high exposure energy (e.g. high power laser or DLP systems). Process parameters must be adjusted to ensure proper dissolution behavior.
Testing & processing disclaimer
Material performance depends on printer type, exposure conditions, dissolution process, investment material and burnout cycle. Full workflow validation is required for each specific application.
Why choose 3Dresyn® Perfect Cast WS1
- Water- and steam-soluble for complex geometries
- Enables internal evacuation of intricate structures
- Clean burnout with negligible ash content
- High rigidity for thin-wall printable structures
- Excellent resolution and dimensional accuracy
- Compatible with SLA/DLP/LCD systems
- Metal-free and organo-tin free formulation
- Supports advanced casting workflows beyond conventional patterns
Regulatory & legal notice
This material is supplied as a professional manufacturing material and is not marketed as a finished product. Final casting performance, dissolution behavior and process validation remain the responsibility of the user depending on printer, investment material and casting workflow.
This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.
Document reference: TDS-PERFECT-CAST-WS1-EN | Version: 1.0 | Last updated: March 2026
