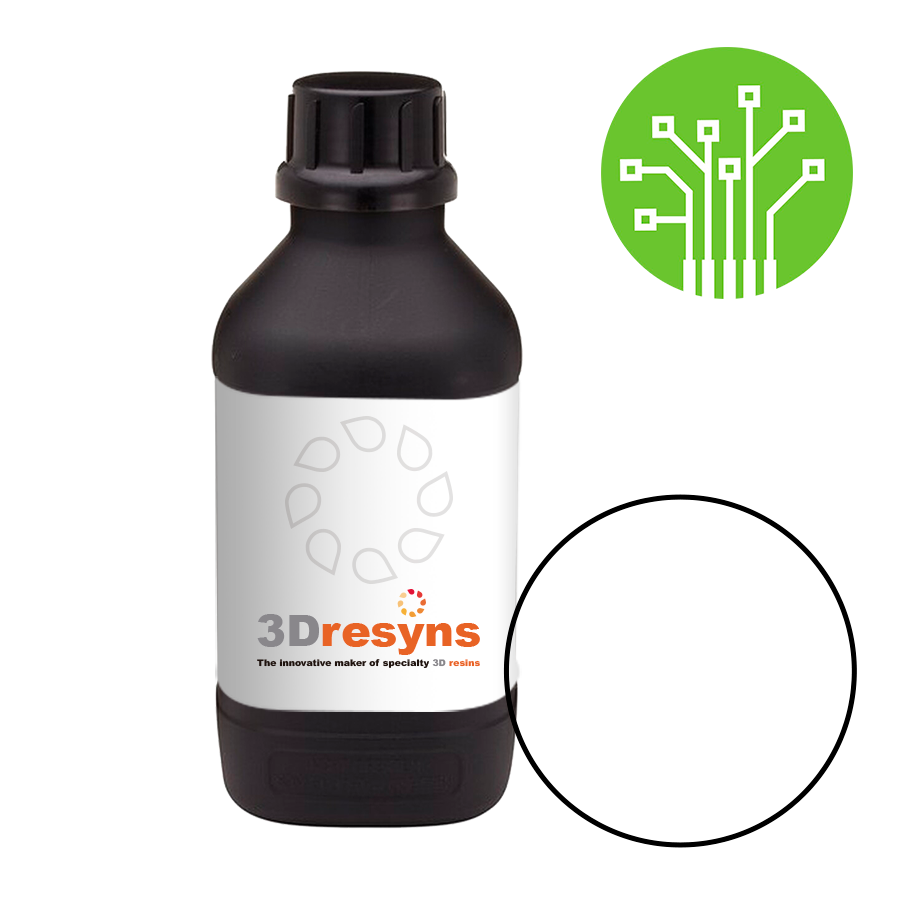

Microfluidic 3Dresyn MF HDT LV1 Clear high deflection temperature with low viscosity

Microfluidic 3Dresyn® MF HDT LV1 Clear is a low viscosity, high temperature-resistant photopolymer specifically engineered for microfluidic applications, including organ-on-chip systems and high precision microchannel fabrication. It combines ultra-high rigidity, chemical stability and very low outgassing behavior for demanding scientific and engineering environments.

Designed for use in SLA, DLP, LCD and advanced 3D lithography systems within controlled professional and research environments. Suitable for fabrication of microfluidic devices, microreactors and analytical systems requiring high resolution, chemical resistance and thermal stability.

• Microfluidic devices and lab-on-chip systems
• Organ-on-chip platforms
• Microreactors and analytical microdevices
• High precision microchannel structures
• Vacuum-compatible microfabricated components

• Tensile strength: <50 MPa (ISO 527)
• Flexural strength: <40 MPa (ISO 178)
• Young’s modulus: 3000–4000 MPa (ISO 527)
• Elongation at yield: <2% (ISO 527)

• Shore hardness: D90 (ISO 868)

• Density: 0.90–1.20 g/cm³, depending on formulation and, where applicable, selected version (ISO 1675)
• Viscosity: <200 mPas at 23°C ± 2°C (ISO 3219)
• Low viscosity formulation enabling efficient removal from microchannels
• Low viscosity facilitates cleaning and evacuation of microchannels
• Low viscosity for efficient microchannel processing

• Heat deflection temperature (HDT): up to 200 °C @ 0.45 MPa (ISO 75)

• Optimized for microfluidic (“MF”) applications and microchannel fabrication
• High thermal resistance for elevated temperature operation
• Ultra rigid material behavior with high dimensional stability
• High resolution with minimal light bleeding
• Precision down to 5–10 µm (SLA/DLP/LCD) and up to ~100 nm (3D lithography)
• Chemically inert and hydrophobic (ULWA grade)
• Very low water absorption
• VOC-free formulation suitable for vacuum environments
• Extremely low outgassing
• Low extractables and leachables for reduced cross-contamination risk
• Biocompatible-grade formulation
• Low tendency to gel beyond specification limits
• Durable with low shrinkage
• Organo-tin free formulation

• Compatible with SLA, DLP, LCD and advanced 3D lithography systems
• Suitable for high-resolution exposure strategies with controlled curing depth
• Recommended for use in cleanroom or controlled laboratory environments
• Supports fabrication of complex internal geometries with high fidelity

Material performance depends on printer type, exposure conditions, geometry, cleaning protocols and post-processing. Microfluidic functionality, chemical compatibility and biological performance must be validated by the user for each specific application.

• Designed specifically for microfluidic and organ-on-chip applications
• High thermal resistance up to 200 °C
• Ultra-high resolution down to micron and sub-micron scale
• Chemically inert and hydrophobic (ULWA)
• Extremely low outgassing and VOC-free formulation
• Low extractables for reduced contamination risk
• Compatible with multiple high-resolution printing technologies

This material is supplied as a professional manufacturing material and is not marketed as a finished product. Final validation for microfluidic performance, biological interaction and application-specific requirements remains the responsibility of the user.
