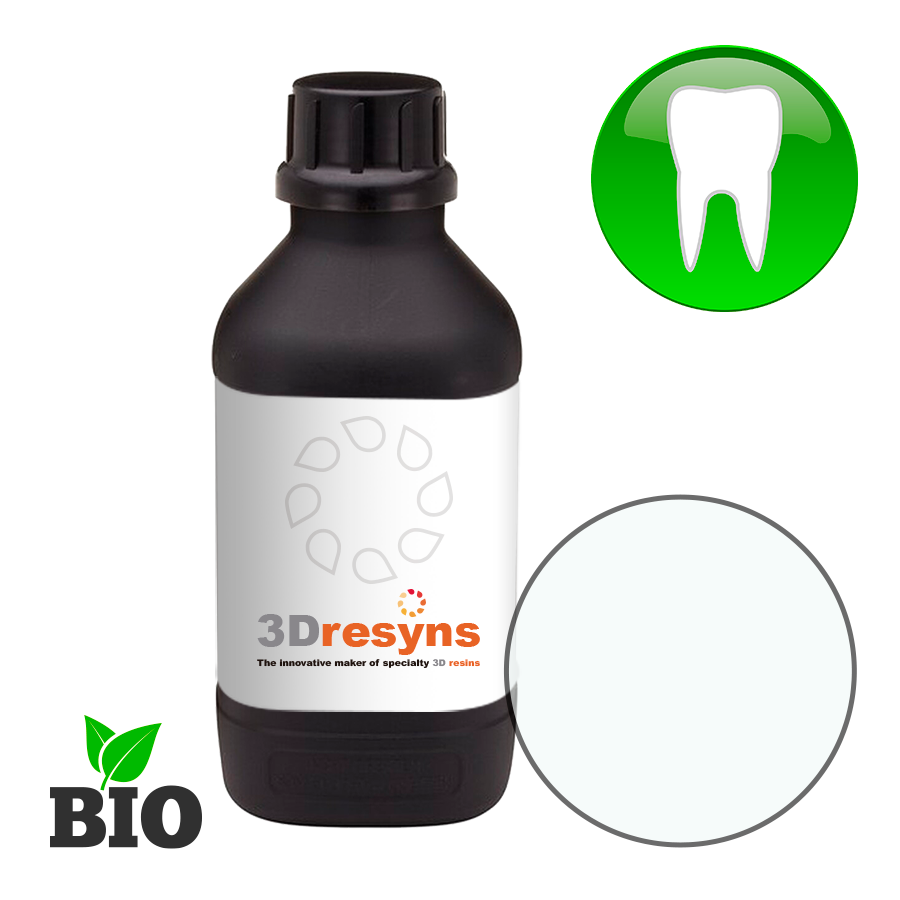

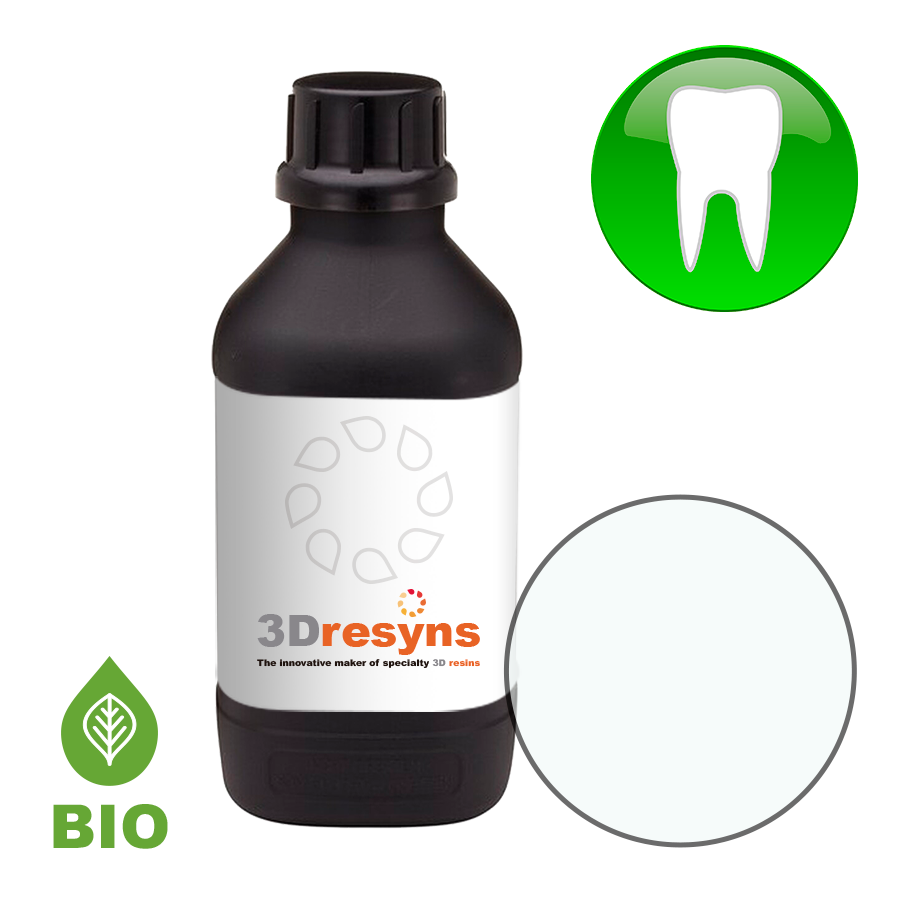

3Dresyn OD-Clear TF LTP for printing aligners with SLA, DLP & LCD printers

Regular price 300.00 €

Shipping calculated at checkout.
3Dresyn OD-Clear TF LTP Tough & Foldable has these features and benefits:

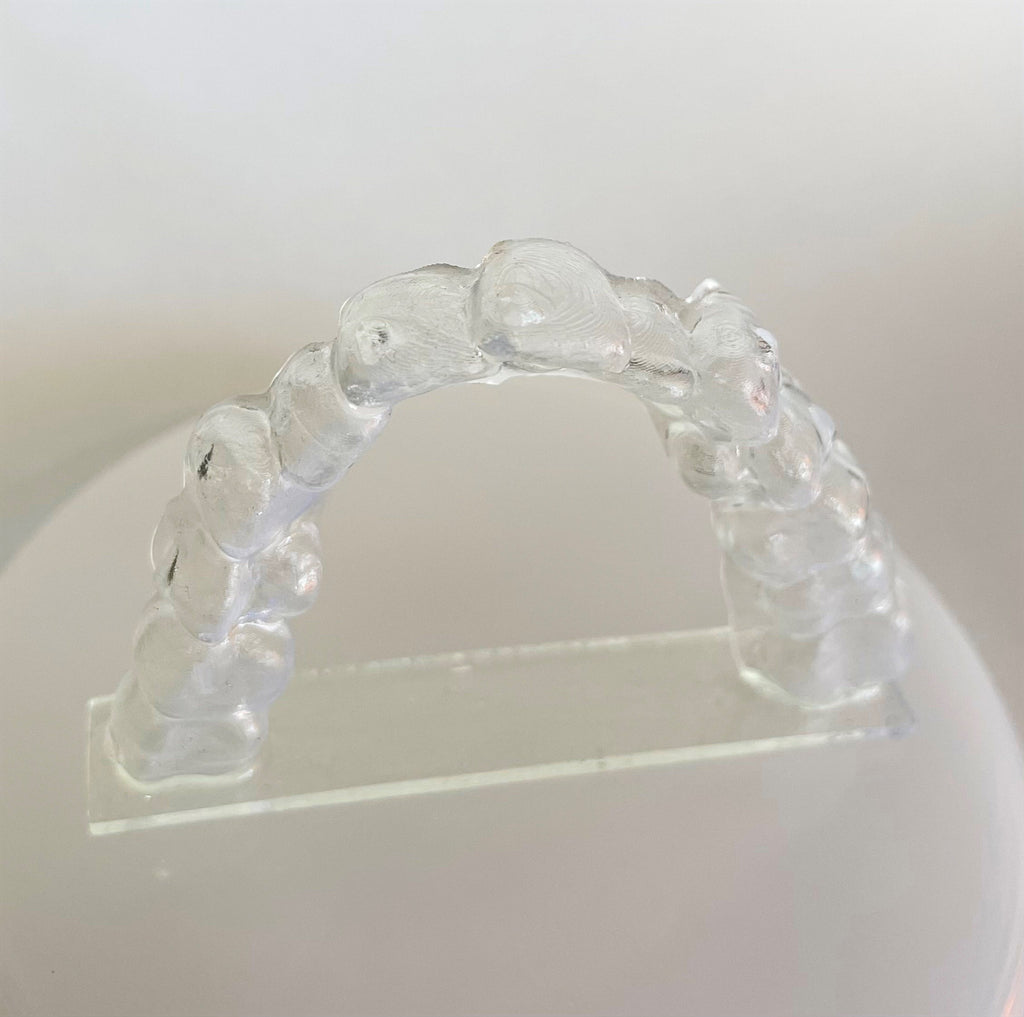

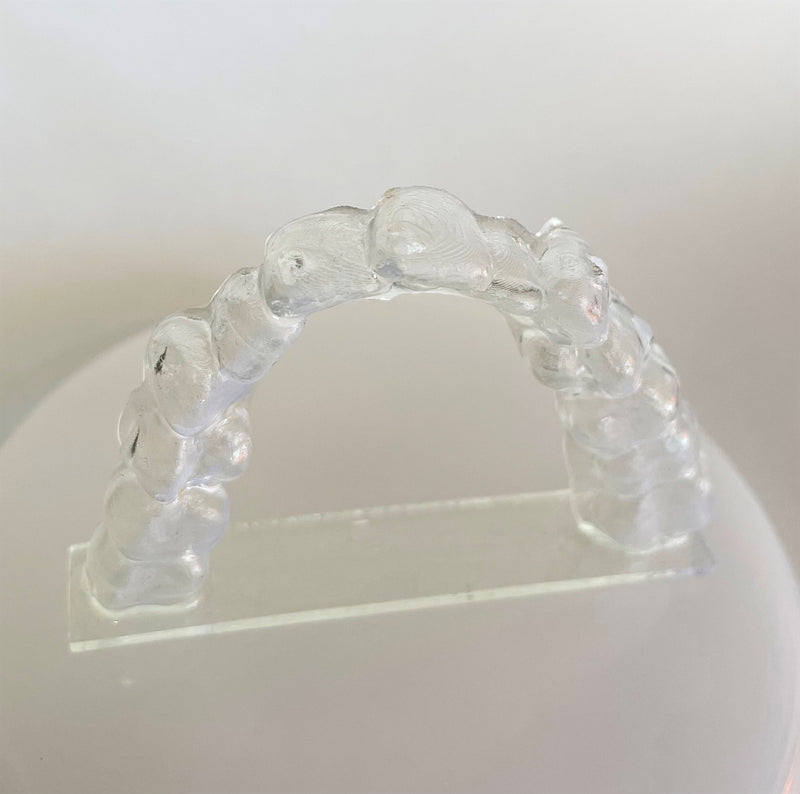

  • ideal for the direct printing of teeth movement aligners without damaging the periodontal ligament
  • tough and foldable , semirigid, pliable under pressure at low thickness, with good memory until regains its original shape
  • safe and biocompatible: only mild skin irritant before curing and cleansing
  • designed for medium Low Temperature Printing LTP at: 20-30ºC
  • choose LV version for a relatively Low Viscosity for printing without heated printers or below 25ºC
  • choose HV version for relatively High Viscosity version for printing with heated printers or above 25ºC, for overall improved durability  and mechanical properties
  • available in two versions: rigid and flexible versions for printing aligners
    • rigid version: similar properties to PETG disk
    • rigid version: ideal for 0.5-0.8 mm
    • flexible version: similar properties to TPU disk
    • flexible version: ideal for 0.8-1.2 mm
  • suitable for printing flexible thin copings or Indirect Bonding Trays IBTs  at 0.2-0.3 mm for placing attachments
  • Shore hardness D60-70 range*
  • <10% stress relaxation after 1 week at 2, 10 and 20 MPa initial stress
  • excellent clarity and non yellowing
  • flexural strength >40 MPa and up to 80 MPa with the optimum printing and postcuring process*
  • elongation <30%
  • high impact and shattering resistance (Notched Izod <70 J/m)
  • tensile strength >40 MPa
  • rigid and flexible versions with medium rigidity (Young modulus 1000-1800 MPa)
    • rigid version closer to 1800 MPa for higher thickness <0.8 mm
    • flexible version closer to 1000 MPa for higher thickness > 0.8 mm
  • durable, non yellowing
  • high resolution up to 20 micron
  • very low shrinkage
  • organo tin free
  • increased durability of the resin tank
  • water solubility: ≤ 1,6 µg/mm3
  • hydrophobic, ultra low water sorption ULWA≤ 32 µg/mm3
  • residual monomer <0.1%
  • fully compliant with the Quality requirements of ISO 20795-1 and ISO 10993-1
  • printable by SLA, DLP & LCD 3D printers even at low room temperature:20ºC
  • Viscosity plot for HV version:
    • Viscosity at 10ºC:  35.000-39.000 cps, printable with high peel force
    • Viscosity at 15ºC:  20.000-21.000 cps, printable with some peel force
    • Viscosity at 20ºC:  15.000-16.000 cps, printable
    • Viscosity at 25ºC:  8.000-9.000 cps, printable
    • Viscosity at 30ºC:  5.500-7.000 cps, printable
    • Viscosity at 40ºC:  1.500-2000 cps, printable
    • Viscosity at 50ºC:  1000 cps, printable

IFU for 100% clarity & transparency (without any haziness or whitish finishing)

  • print aligners in any SLA, DLP and/or LCD printer following our printing instructions, which can be sent upon request by email: info@3dresyns.com
  • after printing cut the supports and eliminate the uncured resin by gravity from the surface of the aligner in the upside down position in an oven heated at 55-60ºC for 30 minutes
  • postcure the dry prints in a normal light box for 30 minutes at T<50ºC
  • clean parts by spraying IPA using a spray bottle to ensure that clean IPA is always used

Examples of aligners software which can be used: Archform, BlueSkyBio, etc

*Note: direct printing of aligners requires detailed integration of aligners specifications and control of the overall workflow and process variables (software, aligner thickness, resin design, printer specifications such as power, wavelength, print settings: exposure time, z layer thickness, postcuring and cleansing settings and protocols, types of cleaning fluids used, cleaning time and temperature, light power, wavelength and temperature during postcuring, etc.

All the mentioned variables affect and determine final aligner mechanical properties, clarity and biocompatibility: such as  its hardness, rigidity, stress relaxation resistance during usage, color, overall resistance, durabibility and safety.

Different printers, printing settings and specifications, cleaning and postcuring settings, etc in practice provide differences in properties for any 3D photoreactive resins
