3Dresyn RIC-UTFD80 Bio, Biocompatible Ultra Tough & Foldable resin with Shore D80 for Resin Injection and Casting

3Dresyn RIC-UTFD80 Bio is an ultra tough and foldable resin for injection and casting at T>60ºC.

This material is designed to be ultra tough and foldable without breaking, while maintaining high impact and shattering resistance, very low shrinkage and non yellowing performance for resin injection and casting workflows.

Designed for resin injection and casting workflows at temperatures above 60ºC, including hot gravity casting and injection in molds, for fabrication of ultra tough and foldable parts.

• Ultra tough and foldable resin injection and casting at T>60ºC
• Hot gravity casting in molds
• Injection casting in molds

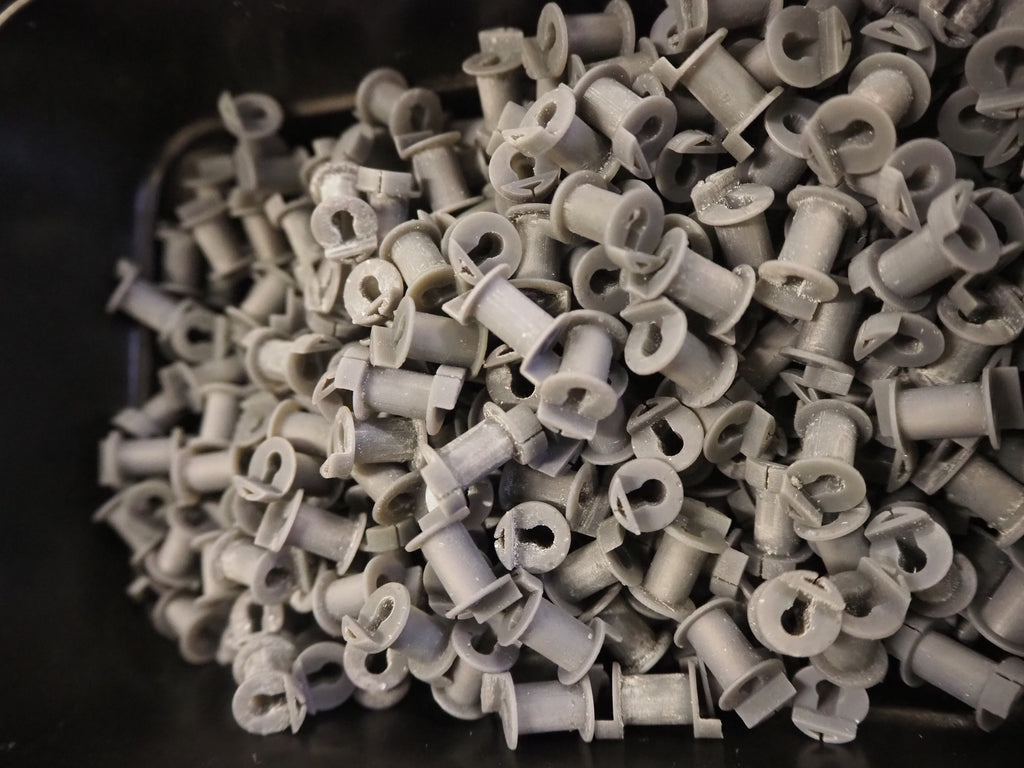

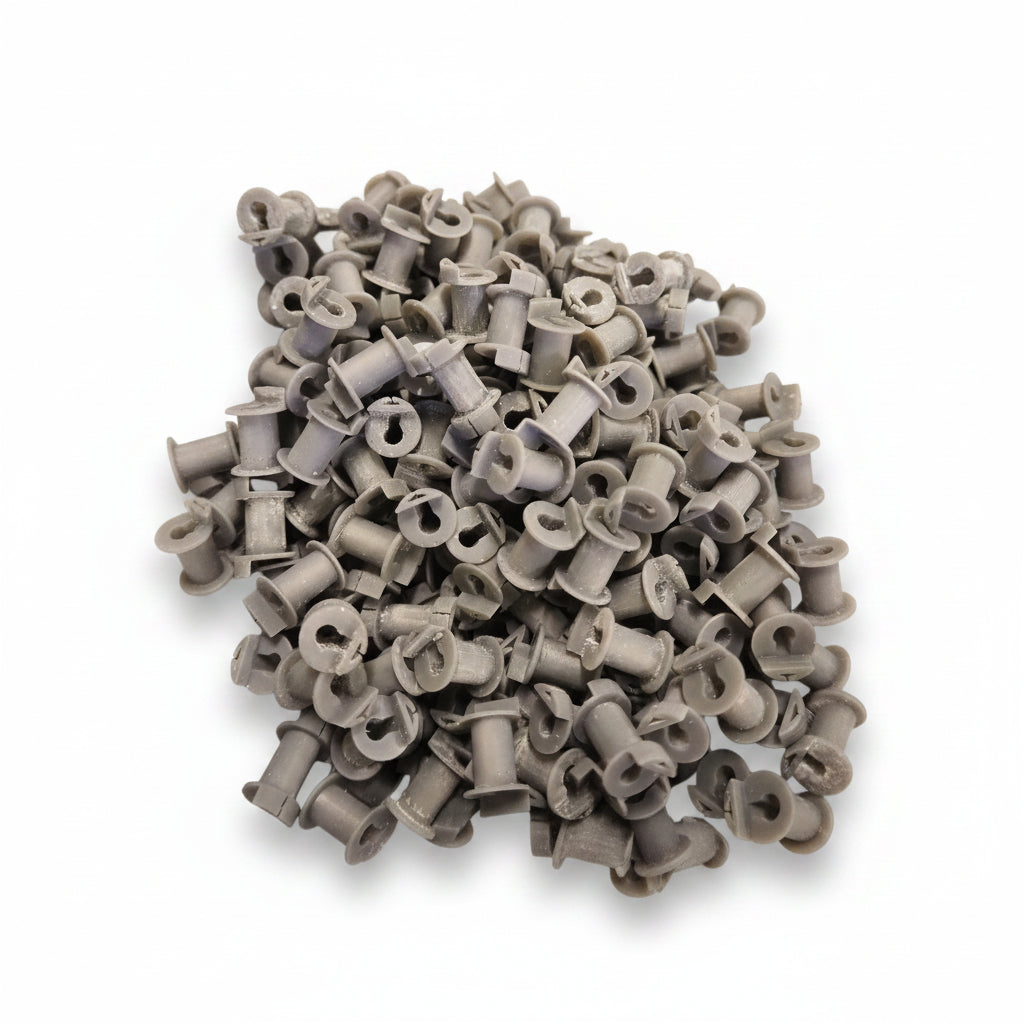

• Ultra tough and foldable cast parts

• Tensile strength: <25 MPa (ISO 527-1 / ISO 527-2)
• Flexural strength: <25 MPa (ISO 178)
• Young’s modulus: <300 MPa (ISO 527)
• Elongation at break: <200% (ISO 527)
• Notched Izod: >90 J/m (ISO 180)
• Shore hardness: D70-80 (ISO 868)

• Density: 1.0-1.2 g/cc at 25ºC (ISO 1675)
• Shrinkage: very low
• Viscosity: <10.000 mPas at 70ºC / <5000 mPas at 80ºC / <2500 mPas at 90ºC / <2000 mPas at 100ºC

• Refractive index: 1.47-1.49 (ISO 489)

• Ultra tough and foldable without breaking
• Non yellowing
• High impact and shattering resistance
• Durable

• High viscous non flowing resin at room temperature
• Castable hot by gravity or by injection in molds
• Hardness and rigidity can be custom increased with our Hardness Adjuster 3Dresyn HA1 HV MF Bio at your optimum dosage of 1-15% by weight
• Significant rigidity refinement can be done with our Hardness Adjusters 3Dresyn SA1 HV Bio and 3Dresyn HA1 HV MF Bio
• Detailed rigidity refinement without sacrificing foldability can be done with our Hardness Adjusters 3Dresyn SA2 LV Bio and 3Dresyn HA2 LV Bio
• Curable with light with Fine Tuners FT additives photo accelerants
• Curable by heat with Fine Tuner TA1, our general purpose fast thermal accelerant for thermally curing our 3Dresyns

• Monomer Free
• Synthetic resin source
• Organo-tin free

Final casting behavior, foldability, shattering resistance and mechanical performance must be validated by the user according to the intended application, curing route, mold design and processing conditions.

This material is supplied as a professional manufacturing material and is not marketed as a finished medical device. Final part performance and suitability must be validated by the user according to the intended application.

This technical datasheet should be used together with the relevant processing, calibration, safety and workflow documentation available in the 3Dresyns® Resources section.

Access the 3Dresyns® Technical Resources (IFU, calibration, CRT, post-processing and troubleshooting)
